Idlers

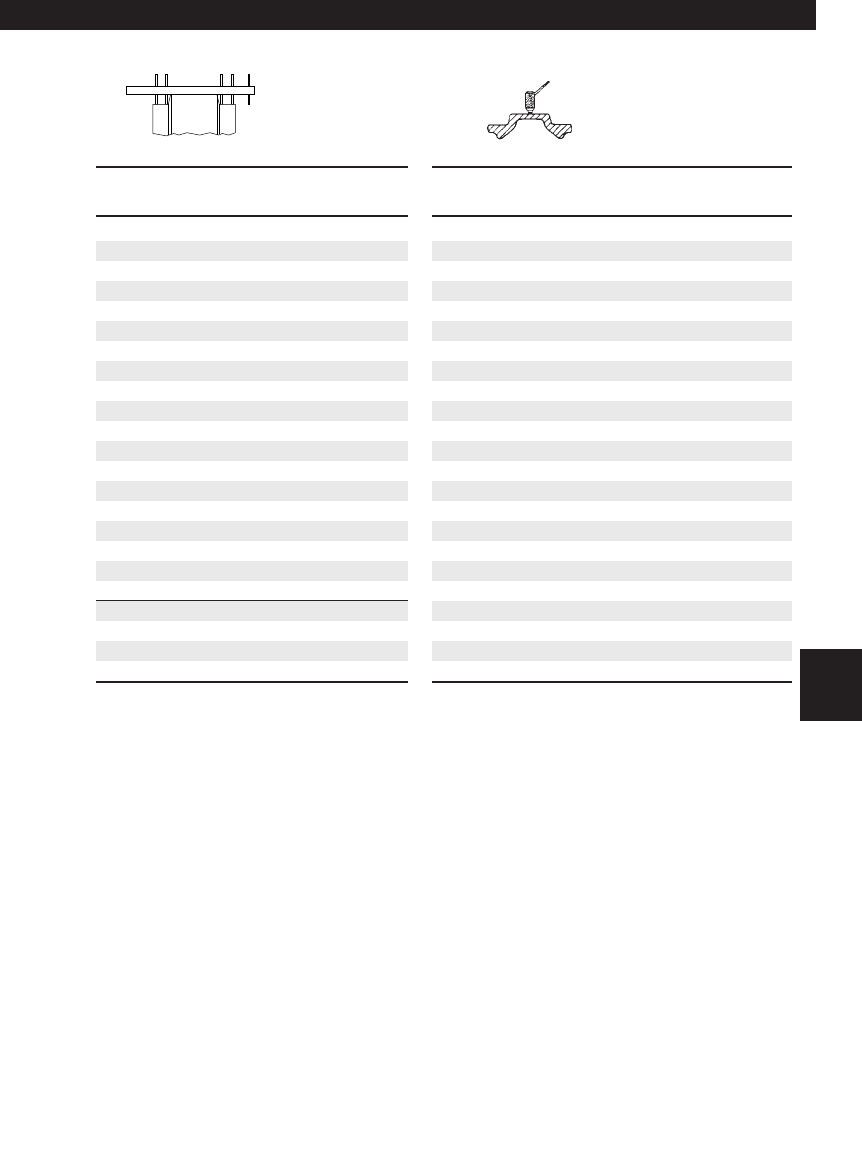

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.94 (24.0) 0 0.48 (12.2) 0.00 (0.0)

0.96 (24.5) 7 0.46 (11.7) 0.02 (0.5)

0.98 (25.0) 14 0.44 (11.2) 0.04 (1.0)

1.00 (25.5) 21 0.42 (10.7) 0.06 (1.5)

1.02 (26.0) 28 0.40 (10.2) 0.08 (2.0)

1.04 (26.5) 35 0.38 (9.7) 0.10 (2.5)

1.06 (27.0) 40 0.36 (9.1) 0.12 (3.0)

1.08 (27.5) 45 0.34 (8.6) 0.14 (3.5)

1.10 (28.0) 50 0.32 (8.1) 0.16 (4.0)

1.12 (28.5) 55 0.30 (7.6) 0.18 (4.5)

1.14 (29.0) 60 0.28 (7.1) 0.20 (5.0)

1.16 (29.5) 65 0.26 (6.6) 0.22 (5.5)

1.18 (30.0) 70 0.24 (6.1) 0.24 (6.0)

1.20 (30.5) 75 0.22 (5.6) 0.26 (6.5)

1.22 (31.0) 80 0.20 (5.1) 0.28 (7.0)

1.24 (31.5) 85 0.18 (4.6) 0.30 (7.5)

1.26 (32.0) 90 0.16 (4.1) 0.32 (8.0)

1.28 (32.5) 95 0.14 (3.6) 0.34 (8.5)

1.30 (33.0) 100 0.12 (3.0) 0.36 (9.0)

1.32 (33.5) 105 0.10 (2.5) 0.38 (9.5)

1.34 (34.0) 110 0.08 (2.0) 0.40 (10.0)

1.36 (34.5) 115 0.06 (1.5) 0.42 (10.5)

1.38 (35.0) 120 0.04 (1.0) 0.44 (11.0)

Undercarriage Code: 626

571

Excavators

350 — 9.00" (228.6 mm)

NOTE: Ultrasonic measurement is to determine flange

wear only. Use ultrasonic only on fabricated idlers.

Flange width: 4.75" (120.7 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 571
