Caterpillar Custom Track Service Handbook Page 275

Service Handbook

Page of 826

/ 826

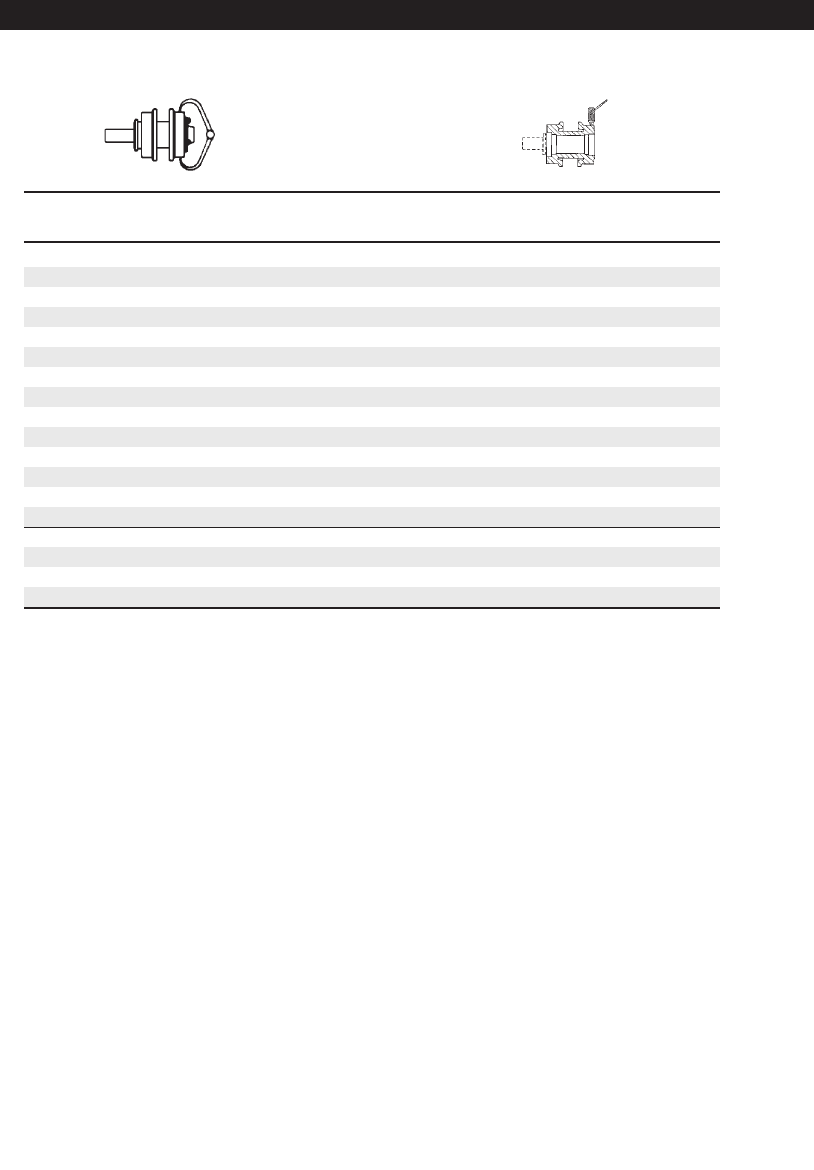

Carrier Rollers

Use with 6S Links

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

5.88 (149.5) 0 1.38 (35.1)

5.84 (148.5) 9 1.36 (34.5)

5.80 (147.5) 18 1.34 (34.0)

5.76 (146.5) 27 1.32 (33.5)

5.72 (145.5) 36 1.30 (33.0)

5.68 (144.5) 45 1.28 (32.5)

5.64 (143.5) 54 1.26 (32.0)

5.60 (142.0) 63 1.24 (31.5)

5.56 (141.0) 70 1.22 (31.0)

5.52 (140.0) 76 1.20 (30.5)

5.48 (139.0) 82 1.18 (30.0)

5.44 (138.0) 88 1.16 (29.5)

5.40 (137.0) 94 1.14 (29.0)

5.36 (136.0) 100 1.12 (28.4)

5.32 (135.0) 106 1.10 (27.9)

5.28 (134.0) 112 1.08 (27.4)

5.24 (133.0) 118 1.06 (26.9)

5.20 (132.0) 124 1.04 (26.4)

Undercarriage Code: 101, 301, 305

274

D3, 931, 933, 935, D4B, D4C — 6.125" (155.6 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 274
