Caterpillar Custom Track Service Handbook Page 556

Service Handbook

Page of 826

/ 826

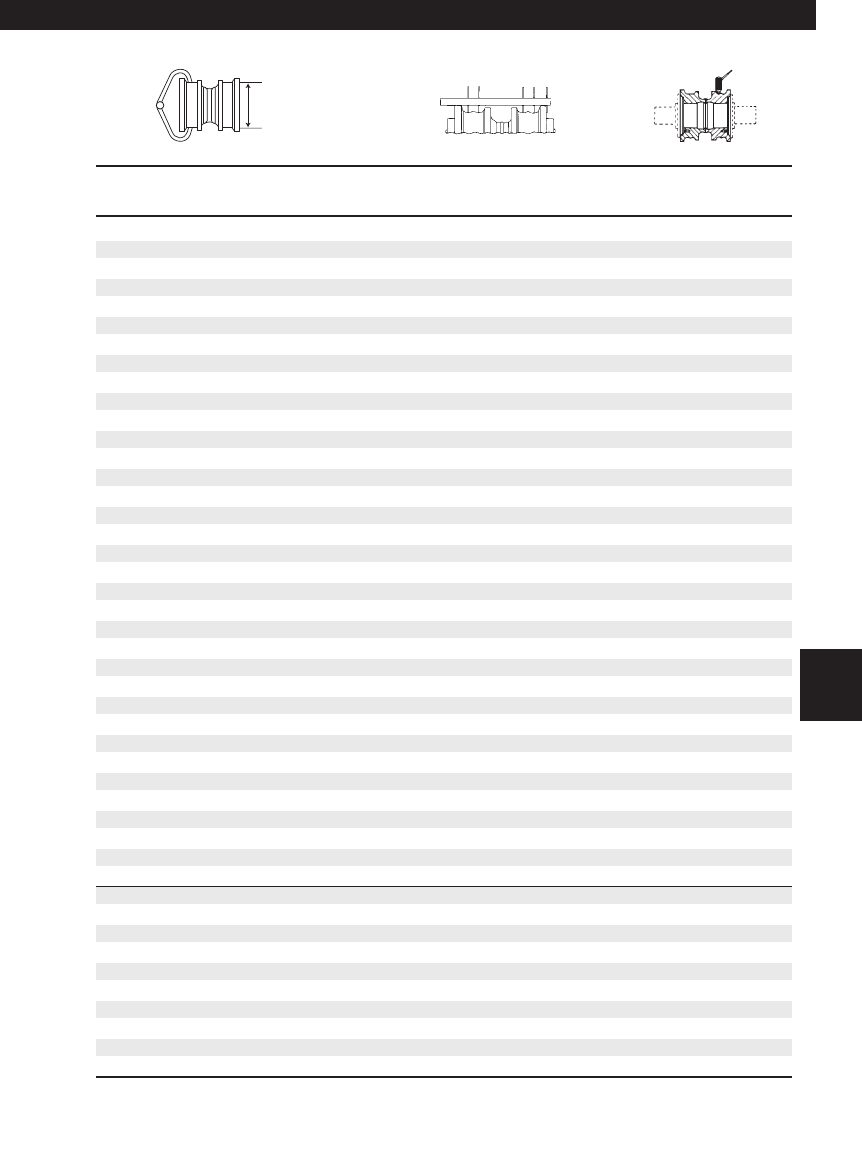

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

7.08 (180.0) 0 0.73 (18.5) 1.92 (48.8)

7.06 (179.5) 3 0.74 (19.0) 1.91 (48.5)

7.04 (179.0) 6 0.75 (19.0) 1.90 (48.3)

7.02 (178.5) 9 0.76 (19.5) 1.89 (48.0)

7.00 (178.0) 12 0.77 (19.5) 1.88 (47.8)

6.98 (177.5) 15 0.78 (20.0) 1.87 (47.5)

6.96 (177.0) 18 0.79 (20.0) 1.86 (47.2)

6.94 (176.5) 21 0.80 (20.5) 1.85 (47.0)

6.92 (176.0) 24 0.81 (20.5) 1.84 (46.7)

6.90 (175.5) 27 0.82 (21.0) 1.83 (46.5)

6.88 (175.0) 30 0.83 (21.0) 1.82 (46.2)

6.86 (174.0) 33 0.84 (21.5) 1.81 (46.0)

6.84 (173.5) 36 0.85 (21.5) 1.80 (45.7)

6.82 (173.0) 39 0.86 (22.0) 1.79 (45.5)

6.80 (172.5) 42 0.87 (22.0) 1.78 (45.2)

6.78 (172.0) 45 0.88 (22.5) 1.77 (45.0)

6.76 (171.5) 48 0.89 (22.5) 1.76 (44.7)

6.74 (171.0) 51 0.90 (23.0) 1.75 (44.5)

6.72 (170.5) 54 0.91 (23.0) 1.74 (44.2)

6.70 (170.0) 57 0.92 (23.5) 1.73 (43.9)

6.68 (169.5) 60 0.93 (23.5) 1.72 (43.7)

6.66 (169.0) 63 0.94 (24.0) 1.71 (43.4)

6.64 (168.5) 66 0.95 (24.0) 1.70 (43.2)

6.62 (168.0) 69 0.96 (24.5) 1.69 (42.9)

6.60 (167.5) 72 0.97 (24.5) 1.68 (42.7)

6.58 (167.0) 75 0.98 (25.0) 1.67 (42.4)

6.56 (166.5) 78 0.99 (25.0) 1.66 (42.2)

6.54 (166.0) 81 1.00 (25.5) 1.65 (41.9)

6.52 (165.5) 84 1.01 (25.5) 1.64 (41.7)

6.50 (165.0) 87 1.02 (26.0) 1.63 (41.4)

6.48 (164.5) 90 1.03 (26.0) 1.62 (41.1)

6.46 (164.0) 93 1.04 (26.5) 1.61 (40.9)

6.44 (163.5) 96 1.05 (26.5) 1.60 (40.6)

6.42 (163.0) 98 1.06 (27.0) 1.59 (40.4)

6.40 (162.5) 100 1.07 (27.0) 1.58 (40.1)

6.38 (162.0) 102 1.08 (27.5) 1.57 (39.9)

6.36 (161.5) 104 1.09 (27.5) 1.56 (39.6)

6.34 (161.0) 106 1.10 (28.0) 1.55 (39.4)

6.32 (160.5) 108 1.11 (28.0) 1.54 (39.1)

6.30 (160.0) 110 1.12 (28.5) 1.53 (38.9)

6.28 (159.5) 112 1.13 (28.5) 1.52 (38.6)

6.26 (159.0) 114 1.14 (29.0) 1.51 (38.4)

6.24 (158.5) 116 1.15 (29.0) 1.50 (38.1)

6.22 (158.0) 118 1.16 (29.5) 1.49 (37.8)

6.20 (157.5) 120 1.17 (29.5) 1.48 (37.6)

Flange diameter is 8.54" (217 mm)

Undercarriage Code: 609, 6091

555

330 — 8.50" (215.9 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 555
