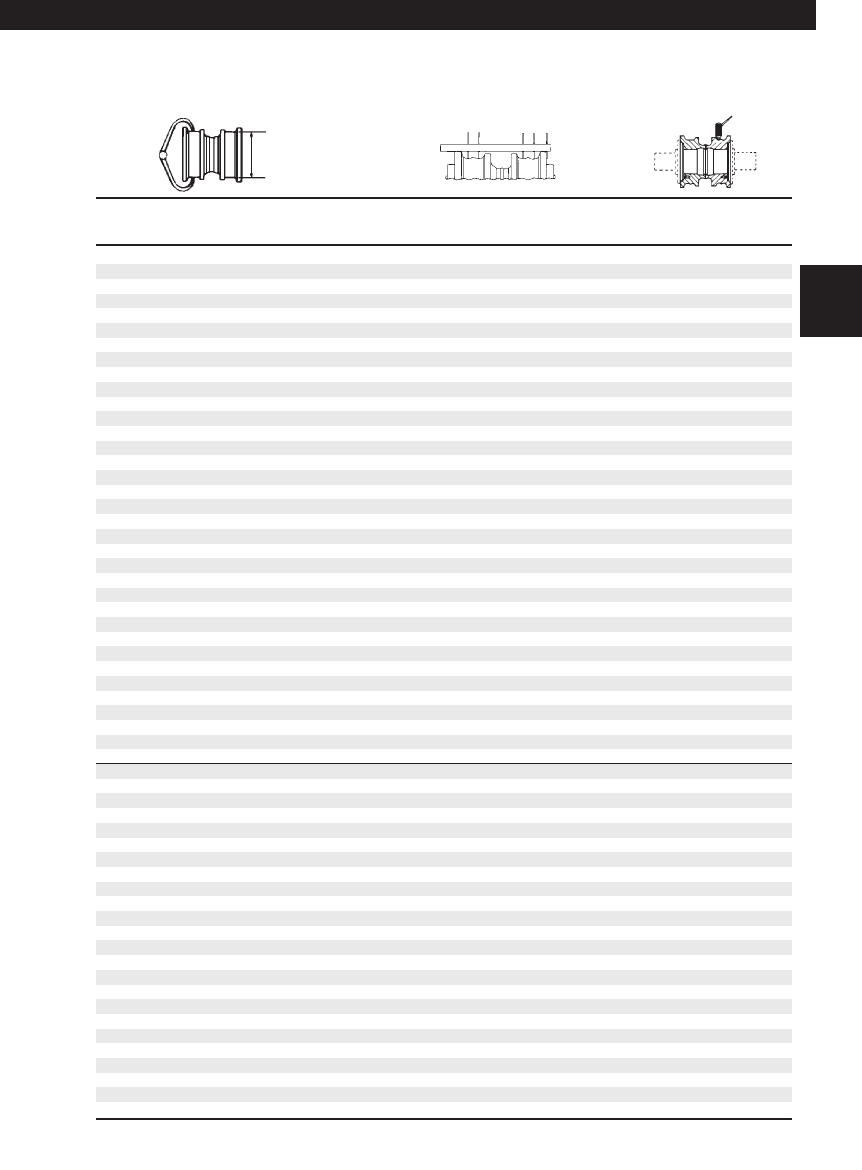

Track Rollers with End Collars

Use with Sealed & Lubricated Track

9G2417 & 18 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.74 (222.0) 0 0.65 (16.5) 2.06 (52.3)

8.70 (221.0) 3 0.67 (17.0) 2.04 (51.8)

8.66 (220.0) 6 0.69 (17.5) 2.02 (51.3)

8.62 (219.0) 9 0.71 (18.0) 2.00 (50.8)

8.58 (218.0) 12 0.73 (18.5) 1.98 (50.3)

8.54 (217.0) 15 0.75 (19.0) 1.96 (49.8)

8.50 (216.0) 18 0.77 (19.5) 1.94 (49.3)

8.46 (215.0) 21 0.79 (20.0) 1.92 (48.8)

8.42 (214.0) 24 0.81 (20.5) 1.90 (48.3)

8.38 (213.0) 27 0.83 (21.0) 1.88 (47.8)

8.34 (212.0) 30 0.85 (21.5) 1.86 (47.2)

8.30 (211.0) 33 0.87 (22.0) 1.84 (46.7)

8.26 (210.0) 36 0.89 (22.5) 1.82 (46.2)

8.22 (209.0) 39 0.91 (23.0) 1.80 (45.7)

8.18 (208.0) 42 0.93 (23.5) 1.78 (45.2)

8.14 (207.0) 45 0.95 (24.0) 1.76 (44.7)

8.10 (205.5) 48 0.97 (24.5) 1.74 (44.2)

8.06 (204.5) 51 0.99 (25.0) 1.72 (43.7)

8.02 (203.5) 54 1.01 (25.5) 1.70 (43.2)

7.98 (202.5) 57 1.03 (26.0) 1.68 (42.7)

7.94 (201.5) 60 1.05 (26.5) 1.66 (42.2)

7.90 (200.5) 63 1.07 (27.0) 1.64 (41.7)

7.86 (199.5) 66 1.09 (27.5) 1.62 (41.1)

7.82 (198.5) 69 1.11 (28.0) 1.60 (40.6)

7.78 (197.5) 72 1.13 (28.5) 1.58 (40.1)

7.74 (196.5) 75 1.15 (29.0) 1.56 (39.6)

7.70 (195.5) 78 1.17 (29.5) 1.54 (39.1)

7.66 (194.5) 81 1.19 (30.0) 1.52 (38.6)

7.62 (193.5) 84 1.21 (30.5) 1.50 (38.1)

7.58 (192.5) 87 1.23 (31.0) 1.48 (37.6)

7.54 (191.5) 90 1.25 (32.0) 1.46 (37.1)

7.50 (190.5) 93 1.27 (32.5) 1.44 (36.6)

7.46 (189.5) 96 1.29 (33.0) 1.42 (36.1)

7.42 (188.5) 98 1.31 (33.5) 1.40 (35.6)

7.38 (187.5) 100 1.33 (34.0) 1.38 (35.1)

7.34 (186.5) 102 1.35 (34.5) 1.36 (34.5)

7.30 (185.5) 104 1.37 (35.0) 1.34 (34.0)

7.26 (184.5) 106 1.39 (35.5) 1.32 (33.5)

7.22 (183.5) 108 1.41 (36.0) 1.30 (33.0)

7.18 (182.5) 110 1.43 (36.5) 1.28 (32.5)

7.14 (181.5) 112 1.45 (37.0) 1.26 (32.0)

7.10 (180.5) 114 1.47 (37.5) 1.24 (31.5)

7.06 (179.5) 116 1.49 (38.0) 1.22 (31.0)

7.02 (178.5) 118 1.51 (38.5) 1.20 (30.5)

6.98 (177.5) 120 1.53 (39.0) 1.18 (30.0)

6.94 (176.5) 122 1.55 (39.5) 1.16 (29.5)

6.90 (175.5) 124 1.57 (40.0) 1.14 (29.0)

6.86 (174.0) 126 1.59 (40.5) 1.12 (28.4)

6.82 (173.0) 128 1.61 (41.0) 1.10 (27.9)

6.78 (172.0) 130 1.63 (41.5) 1.08 (27.4)

6.74 (171.0) 132 1.65 (42.0) 1.06 (26.9)

6.70 (170.0) 134 1.67 (42.5) 1.04 (26.4)

6.66 (169.0) 136 1.69 (43.0) 1.02 (25.9)

6.62 (168.0) 138 1.71 (43.5) 1.00 (25.4)

6.58 (167.0) 140 1.73 (44.0) 0.98 (24.9)

6.54 (166.0) 142 1.75 (44.5) 0.96 (24.4)

6.50 (165.0) 144 1.77 (45.0) 0.94 (23.9)

6.46 (164.0) 146 1.79 (45.5) 0.92 (23.4)

6.42 (163.0) 148 1.81 (46.0) 0.90 (22.9)

Flange diameter is 10.04" (225 mm)

Undercarriage Code: 1641, 1698

183

D7H, D7R, 572R — 8.50" (215.9 mm)

Elevated Sprocket Machines

03.Elev.(146-197) 7/11/03 3:44 PM Page 183
