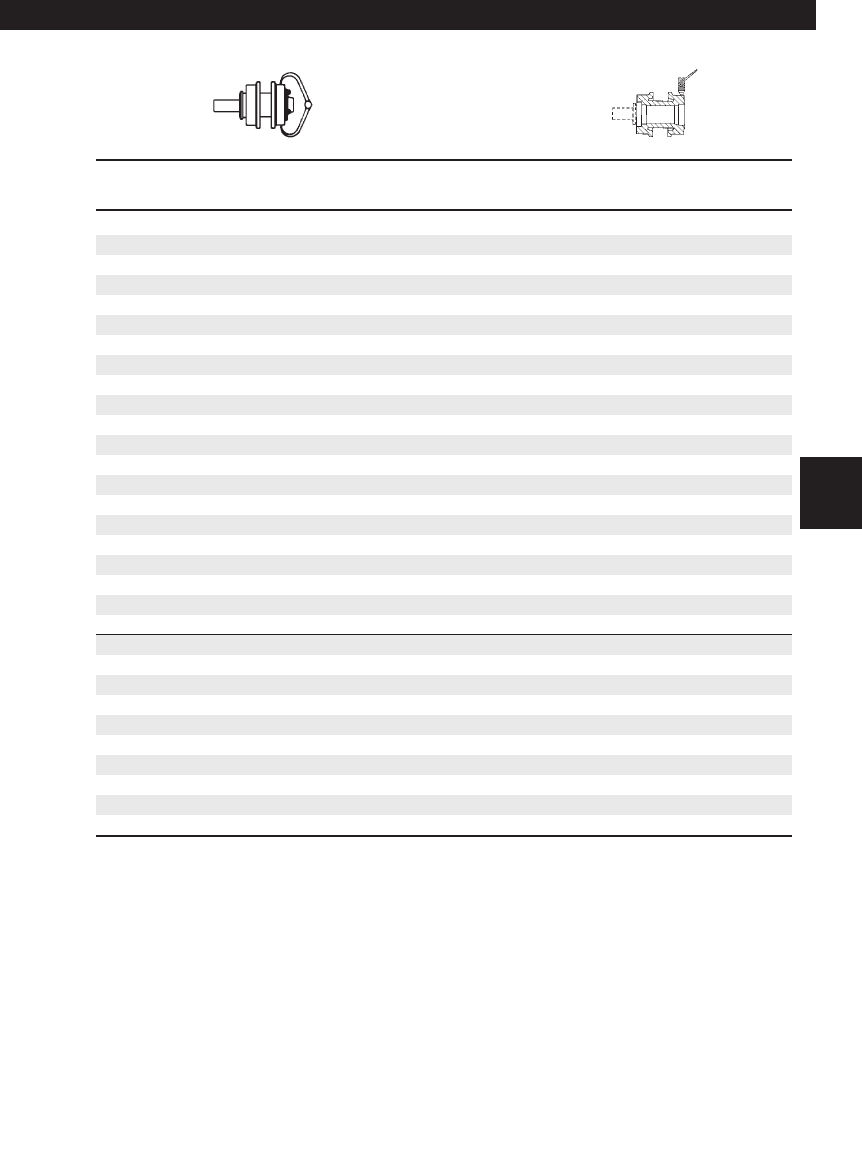

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.50 (190.5) 0 1.92 (48.8)

7.46 (189.5) 8 1.90 (48.3)

7.42 (188.5) 16 1.88 (47.8)

7.38 (187.5) 24 1.86 (47.2)

7.34 (186.5) 32 1.84 (46.7)

7.30 (185.5) 40 1.82 (46.2)

7.26 (184.5) 48 1.80 (45.7)

7.22 (183.5) 56 1.78 (45.2)

7.18 (182.5) 64 1.76 (44.7)

7.14 (181.5) 72 1.74 (44.2)

7.10 (180.5) 80 1.72 (43.7)

7.06 (179.5) 82 1.70 (43.2)

7.02 (178.5) 84 1.68 (42.7)

6.98 (177.5) 86 1.66 (42.2)

6.94 (176.5) 88 1.64 (41.7)

6.90 (175.5) 90 1.62 (41.1)

6.86 (174.0) 92 1.60 (40.6)

6.82 (173.0) 94 1.58 (40.1)

6.78 (172.0) 96 1.56 (39.6)

6.74 (171.0) 98 1.54 (39.1)

6.70 (170.0) 100 1.52 (38.6)

6.66 (169.0) 102 1.50 (38.1)

6.62 (168.0) 104 1.48 (37.6)

6.58 (167.0) 106 1.46 (37.1)

6.54 (166.0) 108 1.44 (36.6)

6.50 (165.0) 110 1.42 (36.1)

6.46 (164.0) 112 1.40 (35.6)

6.42 (163.0) 114 1.38 (35.1)

6.38 (162.0) 116 1.36 (34.5)

6.34 (161.0) 118 1.34 (34.0)

6.30 (160.0) 120 1.32 (33.5)

Undercarriage Code: 1755

423

D8 — 9.00" (228.7 mm)

Cat Classic Undercarriage

08.Classic(388-425) 7/14/03 7:31 AM Page 423
