Caterpillar Custom Track Service Handbook Page 567

Service Handbook

Page of 826

/ 826

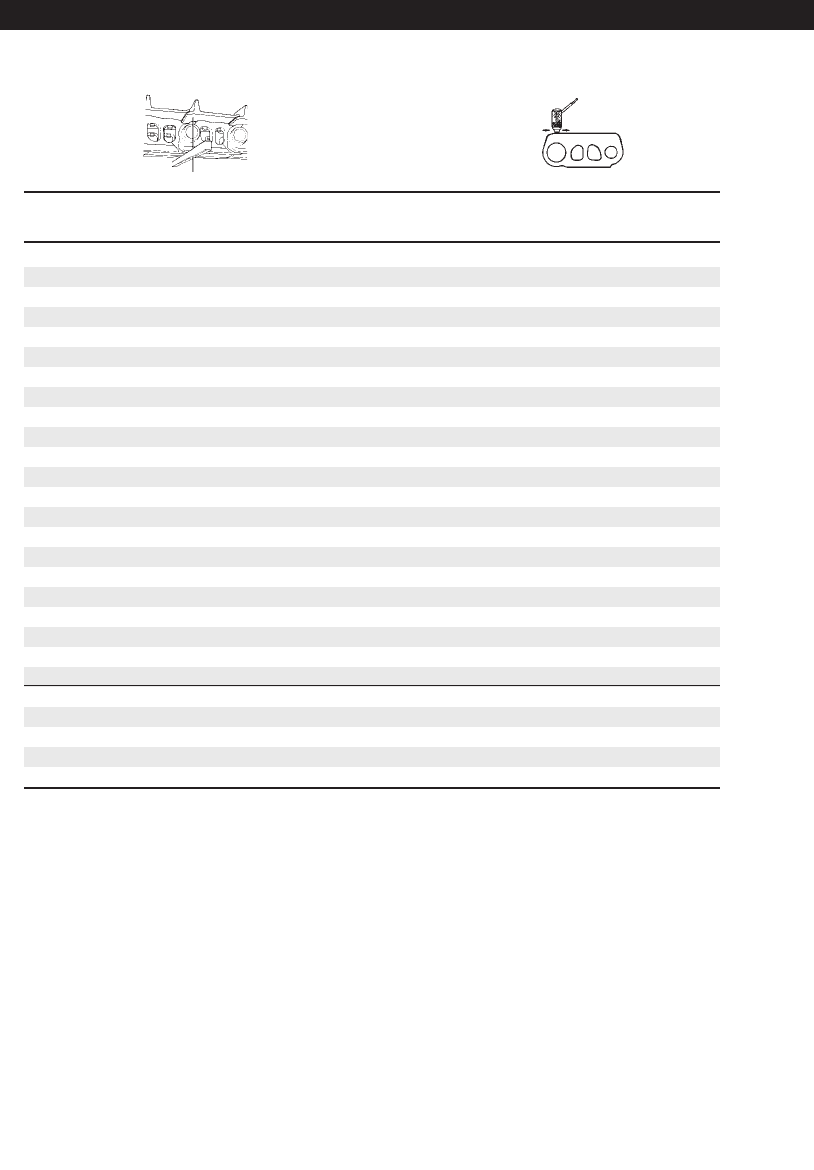

Track Links

8E6091 & 92

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.43 (138.0) 0 1.46 (37.1)

5.41 (137.5) 7 1.44 (36.6)

5.39 (137.0) 14 1.42 (36.1)

5.37 (136.5) 21 1.40 (35.6)

5.35 (136.0) 28 1.38 (35.1)

5.33 (135.5) 35 1.36 (34.5)

5.31 (135.0) 40 1.34 (34.0)

5.29 (134.5) 44 1.32 (33.5)

5.27 (134.0) 48 1.30 (33.0)

5.25 (133.5) 52 1.28 (32.5)

5.23 (133.0) 56 1.26 (32.0)

5.21 (132.5) 60 1.24 (31.5)

5.19 (132.0) 64 1.22 (31.0)

5.17 (131.5) 68 1.20 (30.5)

5.15 (131.0) 72 1.18 (30.0)

5.13 (130.5) 76 1.16 (29.5)

5.11 (130.0) 80 1.14 (29.0)

5.09 (129.5) 84 1.12 (28.4)

5.07 (129.0) 88 1.10 (27.9)

5.05 (128.5) 92 1.08 (27.4)

5.03 (128.0) 96 1.06 (26.9)

5.01 (127.5) 100 1.04 (26.4)

4.99 (126.5) 104 1.02 (25.9)

4.97 (126.0) 108 1.00 (25.4)

4.95 (125.5) 112 0.98 (24.9)

4.93 (125.0) 116 0.96 (24.4)

4.91 (124.5) 120 0.94 (23.9)

Undercarriage Code: 626

566

Excavators

350 — 9.00" (228.6 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 566
