General Information

ALIGNMENT

General Statements

about Alignment Problems,

Symptoms, Causes,

Effects and Remedies:

1. The larger and heavier the machine and

the more severe impact, the greater

likelihood of temporary and permanent

alignment problems.

2. Alignment problems of roller frame

idler and sprocket will affect all links

the same.

3. Alignment problems of roller frame,

idler and sprocket will affect rollers

unequally from front to rear and from

inner to outer flanges and treads.

4. Horizontal straightness of roller frame

will not affect track but will affect front

and/or rear roller treads compared to

center.

5. Snaky track will not cause near the

degree of damage as compared to mis-

alignment.

6. Carrier rollers can be used as a more

visual indicator of roller frame align-

ment but are not as reliable as compar-

ing track rollers.

7. If left side of tractor has different mis-

alignment-type wear patterns than

right side, the problem is probably due

to permanent, rather than temporary,

(working loads) causes.

8. Unbalanced loads due to side hill

operation will result in front to rear

and left side to right side similarly in

wear patterns on all parts affected.

9. If misalignment is suspected, it is impor-

tant to at least measure the misalign-

ment degree, if not completely correct

it before installing new undercarriage

components.

10. Tight track increases the effect of all

types of alignment problems because

it increases the loads between the

interfering components.

For more complete descriptions and cross

reference of specific component wear pat-

terns that may be caused by misalignment,

refer to the discussions under each compo-

nent and model.

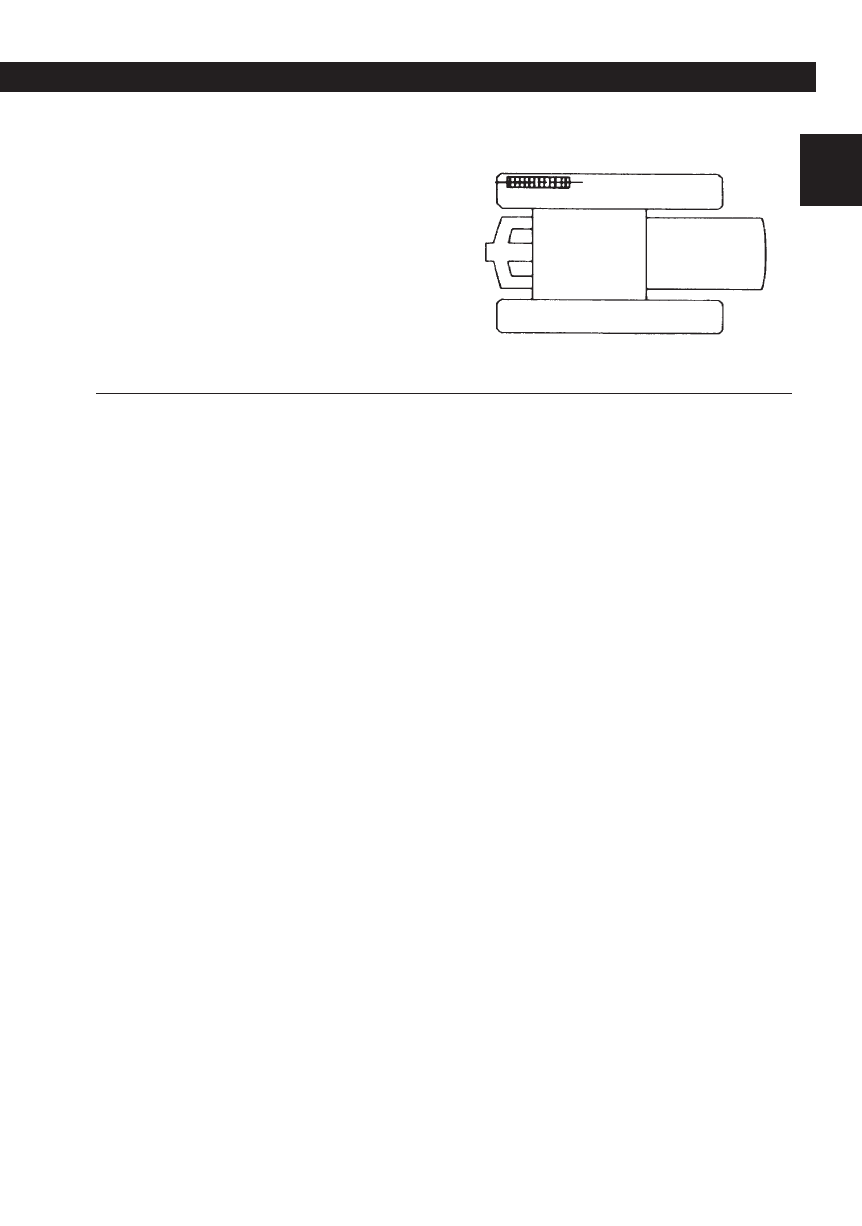

Lateral Displacement

When viewed from top or rear, sprocket is

parallel to but moved in or out with

respect to tractor and roller frame.

CAUSE: sprocket not pressed proper dis-

tance onto shaft

EFFECT: inboard or outboard sprocket

sides and rail insides worn selectively,

may affect rear roller flanges

REMEDY: re-position sprocket on shaft

01.G.I.,M.&M (01-93) 7/11/03 3:40 PM Page 17
