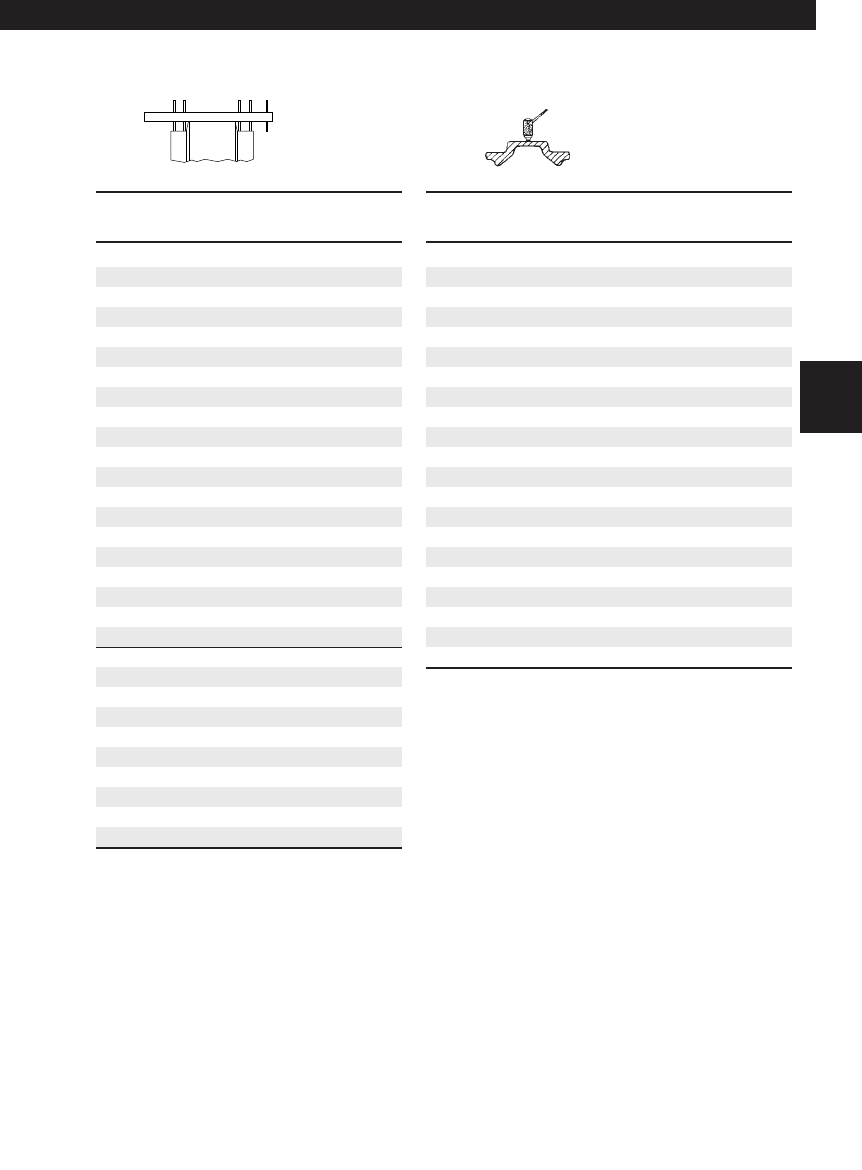

Idlers

(Has no side plate indentations)

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.86 (22.0) 0 0.42 (10.7) 0.00 (0.0)

0.88 (22.5) 9 0.40 (10.2) 0.02 (0.5)

0.90 (23.0) 18 0.38 (9.7) 0.04 (1.0)

0.92 (23.5) 27 0.36 (9.1) 0.06 (1.5)

0.94 (24.0) 36 0.34 (8.6) 0.08 (2.0)

0.96 (24.5) 45 0.32 (8.1) 0.10 (2.5)

0.98 (25.0) 54 0.30 (7.6) 0.12 (3.0)

1.00 (25.5) 63 0.28 (7.1) 0.14 (3.5)

1.02 (26.0) 72 0.26 (6.6) 0.16 (4.0)

1.04 (26.5) 80 0.24 (6.1) 0.18 (4.5)

1.06 (27.0) 82 0.22 (5.6) 0.20 (5.0)

1.08 (27.5) 84 0.20 (5.1) 0.22 (5.5)

1.10 (28.0) 86 0.18 (4.6) 0.24 (6.0)

1.12 (28.5) 88 0.16 (4.1) 0.26 (6.5)

1.14 (29.0) 90 0.14 (3.6) 0.28 (7.0)

1.16 (29.5) 92 0.12 (3.0) 0.30 (7.5)

1.18 (30.0) 94 0.10 (2.5) 0.32 (8.0)

1.20 (30.5) 96 0.08 (2.0) 0.34 (8.5)

1.22 (31.0) 98 0.06 (1.5) 0.36 (9.0)

1.24 (31.5) 100 0.04 (1.0) 0.38 (9.5)

1.26 (32.0) 102 0.02 (0.5) 0.40 (10.0)

1.28 (32.5) 104

NOTE: Ultrasonic measurement is to determine

1.30 (33.0) 106

flange wear only.

1.32 (33.5) 108

1.34 (34.0) 110

1.36 (34.5) 112

1.38 (35.0) 114

1.40 (35.5) 116

1.42 (36.0) 118

1.44 (36.5) 120

Flange width: 4.00" (101.6 mm)

Undercarriage Code: 161, 381

361

D7, 977, 571, 572 — 8.50" (215.9 mm)

Low Sprocket Machines

07.Low(348-387) 7/14/03 7:30 AM Page 361
