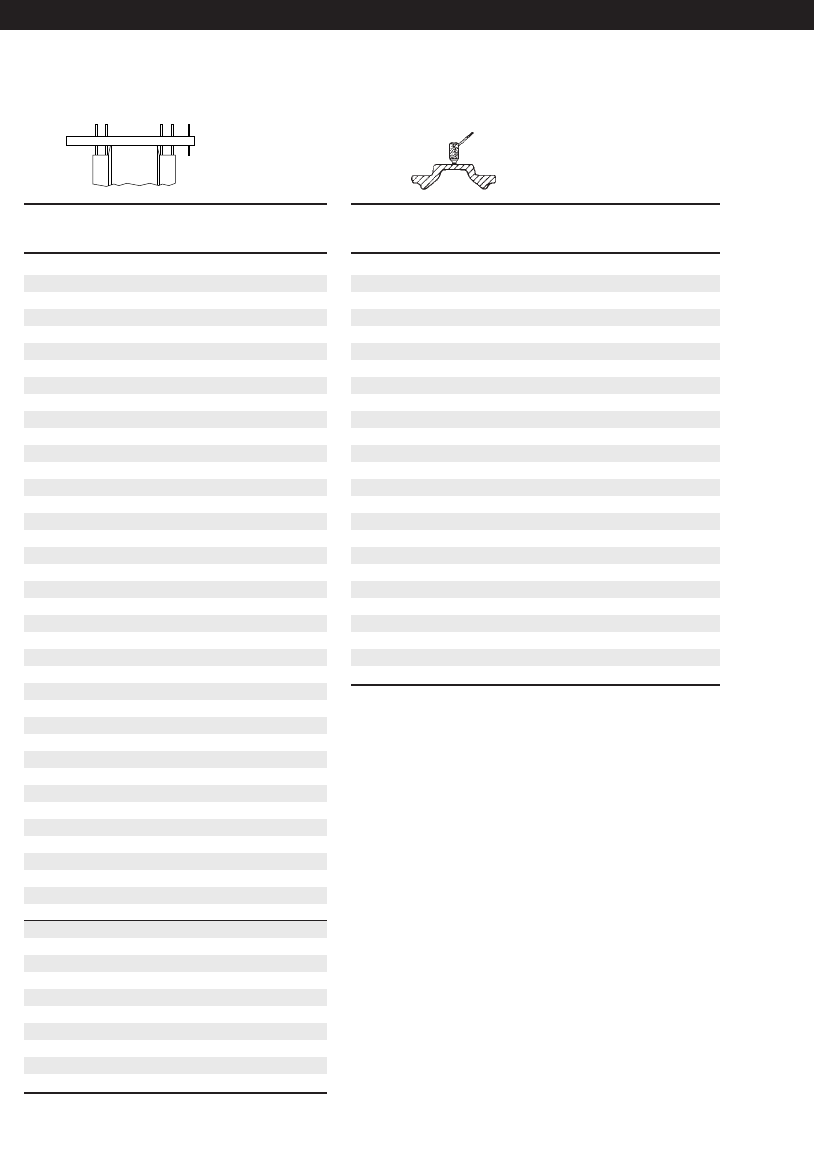

Idlers

Extended Life Idler

Has circulator side plate indentations

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.94 (24.0) 0 0.49 (12.4) 0.00 (0.0)

0.96 (24.5) 4 0.47 (11.9) 0.02 (0.5)

0.98 (25.0) 8 0.45 (11.4) 0.04 (1.0)

1.00 (25.5) 12 0.43 (10.9) 0.06 (1.5)

1.02 (26.0) 16 0.41 (10.4) 0.08 (2.0)

1.04 (26.5) 20 0.39 (9.9) 0.10 (2.5)

1.06 (27.0) 24 0.37 (9.4) 0.12 (3.0)

1.08 (27.5) 28 0.35 (8.9) 0.14 (3.5)

1.10 (28.0) 32 0.33 (8.4) 0.16 (4.0)

1.12 (28.5) 36 0.31 (7.9) 0.18 (4.5)

1.14 (29.0) 40 0.29 (7.4) 0.20 (5.0)

1.16 (29.5) 44 0.27 (6.9) 0.22 (5.5)

1.18 (30.0) 48 0.25 (6.3) 0.24 (6.0)

1.20 (30.5) 50 0.23 (5.8) 0.26 (6.5)

1.22 (31.0) 52 0.21 (5.3) 0.28 (7.0)

1.24 (31.5) 54 0.19 (4.8) 0.30 (7.5)

1.26 (32.0) 56 0.17 (4.3) 0.32 (8.0)

1.28 (32.5) 58 0.15 (3.8) 0.34 (8.5)

1.30 (33.0) 60 0.13 (3.3) 0.36 (9.0)

1.32 (33.5) 62 0.11 (2.8) 0.38 (9.5)

1.34 (34.0) 64 0.09 (2.3) 0.40 (10.0)

1.36 (34.5) 66 0.07 (1.8) 0.42 (10.5)

1.38 (35.0) 68 0.05 (1.3) 0.44 (11.0)

1.40 (35.5) 70 0.03 (0.8) 0.46 (11.5)

1.42 (36.0) 72 0.01 (0.3) 0.48 (12.0)

1.44 (36.5) 74

NOTE: Ultrasonic measurement is to determine

1.46 (37.0) 76

flange wear only.

1.48 (37.5) 78

1.50 (38.0) 80

1.52 (38.5) 82

1.54 (39.0) 84

1.56 (39.5) 86

1.58 (40.0) 88

1.60 (40.5) 90

1.62 (41.0) 92

1.64 (41.5) 94

1.66 (42.0) 96

1.68 (42.5) 98

1.70 (43.0) 100

1.72 (43.5) 102

1.74 (44.0) 104

1.76 (44.5) 106

1.78 (45.0) 108

1.80 (45.5) 110

1.82 (46.0) 112

1.84 (46.5) 114

1.86 (47.0) 116

1.88 (48.0) 118

1.90 (48.5) 120

Flange width: 3.74" (95 mm)

Undercarriage Code: 1581

158

D6H, D6R, 527 — 8.00" (203.2 mm)

Elevated Sprocket Machines
