Caterpillar Custom Track Service Handbook Page 529

Service Handbook

Page of 826

/ 826

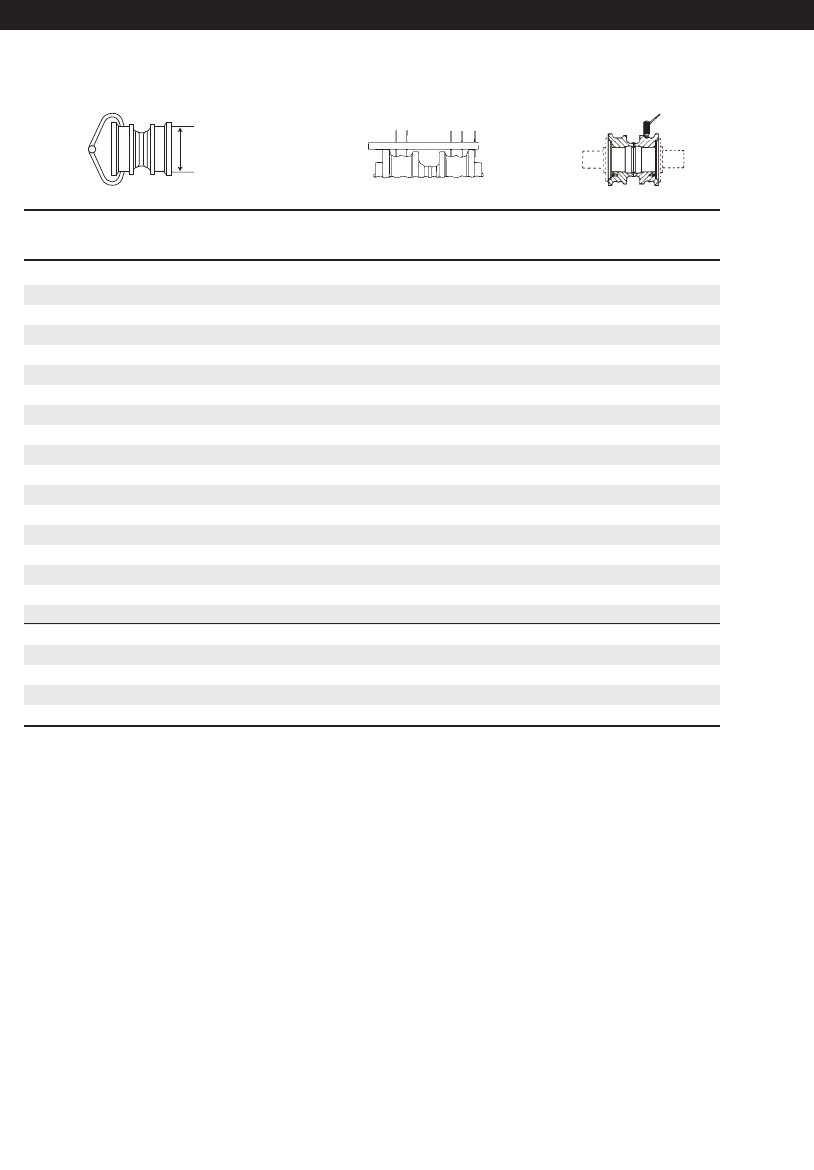

Track Rollers

Not for use on 322

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

5.90 (150.0) 0 0.69 (17.5) 1.69 (42.9)

5.86 (149.0) 7 0.71 (18.0) 1.67 (42.4)

5.82 (148.0) 14 0.73 (18.5) 1.65 (41.9)

5.78 (147.0) 21 0.75 (19.0) 1.63 (41.4)

5.74 (146.0) 28 0.77 (19.5) 1.61 (40.9)

5.70 (145.0) 35 0.79 (20.0) 1.59 (40.4)

5.66 (144.0) 42 0.81 (20.5) 1.57 (39.9)

5.62 (142.5) 49 0.83 (21.0) 1.55 (39.4)

5.58 (141.5) 56 0.85 (21.5) 1.53 (38.9)

5.54 (140.5) 63 0.87 (22.0) 1.51 (38.4)

5.50 (139.5) 70 0.89 (22.5) 1.49 (37.8)

5.46 (138.5) 76 0.91 (23.0) 1.47 (37.3)

5.42 (137.5) 80 0.93 (23.5) 1.45 (36.8)

5.38 (136.5) 84 0.95 (24.0) 1.43 (36.3)

5.34 (135.5) 88 0.97 (24.5) 1.41 (35.8)

5.30 (134.5) 92 0.99 (25.0) 1.39 (35.3)

5.26 (133.5) 96 1.01 (25.5) 1.37 (34.8)

5.22 (132.5) 100 1.03 (26.0) 1.35 (34.3)

5.18 (131.5) 104 1.05 (26.5) 1.33 (33.8)

5.14 (130.5) 108 1.07 (27.0) 1.31 (33.3)

5.10 (129.5) 112 1.09 (27.5) 1.29 (32.8)

5.06 (128.5) 116 1.11 (28.0) 1.27 (32.3)

5.02 (127.5) 120 1.13 (28.5) 1.25 (31.8)

Flange diameter is 7.28" (185 mm)

Undercarriage Code: 546, 5461, 547, 5471, 566, 5661, 567

528

315, 317, 318, 320 — 7.50" (190 mm)

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 528
