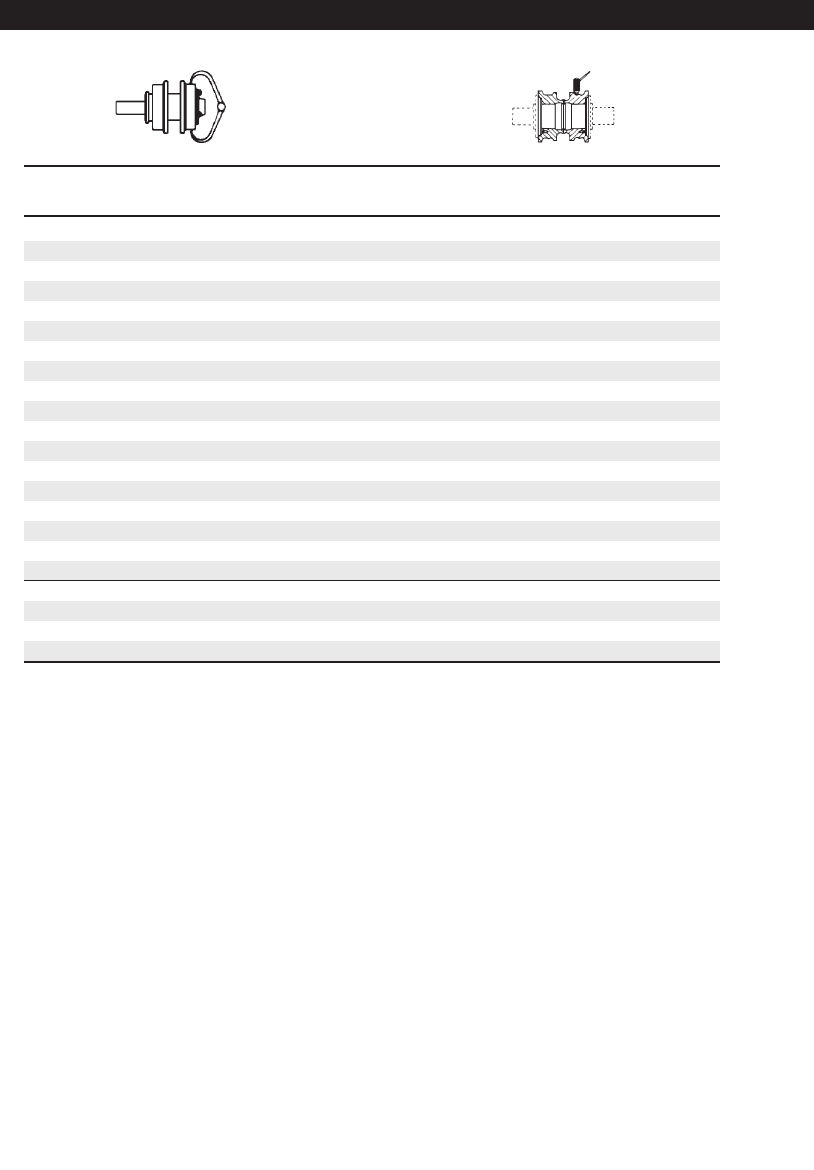

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

6.26 (159.0) 0 1.63 (41.4)

6.22 (158.0) 8 1.61 (40.9)

6.18 (157.0) 16 1.59 (40.4)

6.14 (156.0) 24 1.57 (39.9)

6.10 (155.0) 32 1.55 (39.4)

6.06 (154.0) 40 1.53 (38.9)

6.02 (153.0) 45 1.51 (38.4)

5.98 (152.0) 50 1.49 (37.8)

5.94 (151.0) 55 1.47 (37.3)

5.90 (150.0) 60 1.45 (36.8)

5.86 (149.0) 65 1.43 (36.3)

5.82 (148.0) 70 1.41 (35.8)

5.78 (147.0) 75 1.39 (35.3)

5.74 (146.0) 80 1.37 (34.8)

5.70 (145.0) 85 1.35 (34.3)

5.66 (144.0) 90 1.33 (33.8)

5.62 (142.5) 95 1.31 (33.3)

5.58 (141.5) 100 1.29 (32.8)

5.54 (140.5) 105 1.27 (32.3)

5.50 (139.5) 110 1.25 (31.8)

5.46 (138.5) 115 1.23 (31.2)

5.42 (137.5) 120 1.21 (30.7)

Undercarriage Code: 710, 720, 750, 760, 780

798

PR1000, PR750B, SF550, SF500, TR500 — 6.75" (171.5 mm)

Paving Products/Drive Belts

13.Pav/Ag.(792-817) 7/14/03 7:34 AM Page 798
