Caterpillar Custom Track Service Handbook Page 226

Service Handbook

Page of 826

/ 826

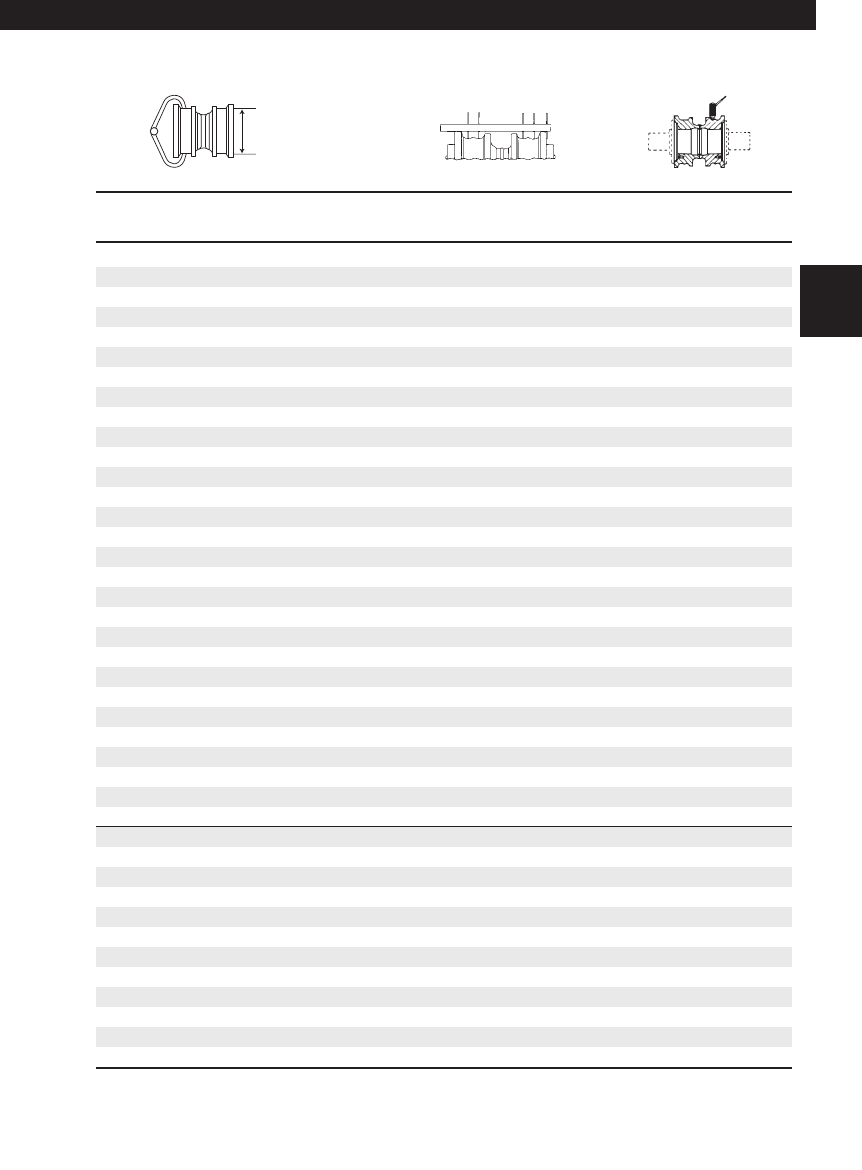

Track Rollers

Single Flange

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.94 (278.0) 0 0.67 (17.0) 2.85 (72.4)

10.84 (275.5) 5 0.72 (18.5) 2.80 (71.1)

10.74 (273.0) 10 0.77 (19.5) 2.75 (69.9)

10.64 (270.5) 15 0.82 (21.0) 2.70 (68.6)

10.54 (267.5) 20 0.87 (22.0) 2.65 (67.3)

10.44 (265.0) 25 0.92 (23.5) 2.60 (66.0)

10.34 (262.5) 30 0.97 (24.5) 2.55 (64.8)

10.24 (260.0) 35 1.02 (26.0) 2.50 (63.5)

10.14 (257.5) 40 1.07 (27.0) 2.45 (62.2)

10.04 (255.0) 43 1.12 (28.5) 2.40 (61.0)

9.94 (252.5) 46 1.17 (29.5) 2.35 (59.7)

9.84 (250.0) 49 1.22 (31.0) 2.30 (58.4)

9.74 (247.5) 52 1.27 (32.5) 2.25 (57.2)

9.64 (245.0) 55 1.32 (33.5) 2.20 (55.9)

9.54 (242.5) 58 1.37 (35.0) 2.15 (54.6)

9.44 (240.0) 61 1.42 (36.0) 2.10 (53.3)

9.34 (237.0) 64 1.47 (37.5) 2.05 (52.1)

9.24 (234.5) 67 1.52 (38.5) 2.00 (50.8)

9.14 (232.0) 70 1.57 (40.0) 1.95 (49.5)

9.04 (229.5) 73 1.62 (41.0) 1.90 (48.3)

8.94 (227.0) 76 1.67 (42.5) 1.85 (47.0)

8.84 (224.5) 79 1.72 (43.5) 1.80 (45.7)

8.74 (222.0) 82 1.77 (45.0) 1.75 (44.5)

8.64 (219.5) 85 1.82 (46.0) 1.70 (43.2)

8.54 (217.0) 88 1.87 (47.5) 1.65 (41.9)

8.44 (214.5) 91 1.92 (49.0) 1.60 (40.6)

8.34 (212.0) 94 1.97 (50.0) 1.55 (39.4)

8.24 (209.5) 97 2.02 (51.5) 1.50 (38.1)

8.14 (207.0) 100 2.07 (52.5) 1.45 (36.8)

8.04 (204.0) 103 2.12 (54.0) 1.40 (35.6)

7.94 (201.5) 106 2.17 (55.0) 1.35 (34.3)

7.84 (199.0) 109 2.22 (56.5) 1.30 (33.0)

7.74 (196.5) 112 2.27 (57.5) 1.25 (31.8)

7.64 (194.0) 115 2.32 (59.0) 1.20 (30.5)

7.54 (191.5) 118 2.37 (60.0) 1.15 (29.2)

7.44 (189.0) 121 2.42 (61.5) 1.10 (27.9)

7.34 (186.5) 124 2.47 (62.5) 1.05 (26.7)

7.24 (184.0) 127 2.52 (64.0) 1.00 (25.4)

7.14 (181.5) 130 2.57 (65.5) 0.95 (24.1)

7.04 (179.0) 133 2.62 (66.5) 0.90 (22.9)

6.94 (176.5) 136 2.67 (68.0) 0.85 (21.6)

Flange diameter is 12.28" (312 mm)

Undercarriage Code: 208, 209

225

D10N, D10R — 10.25" (260.4 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 225
