Caterpillar Custom Track Service Handbook Page 644

Service Handbook

Page of 826

/ 826

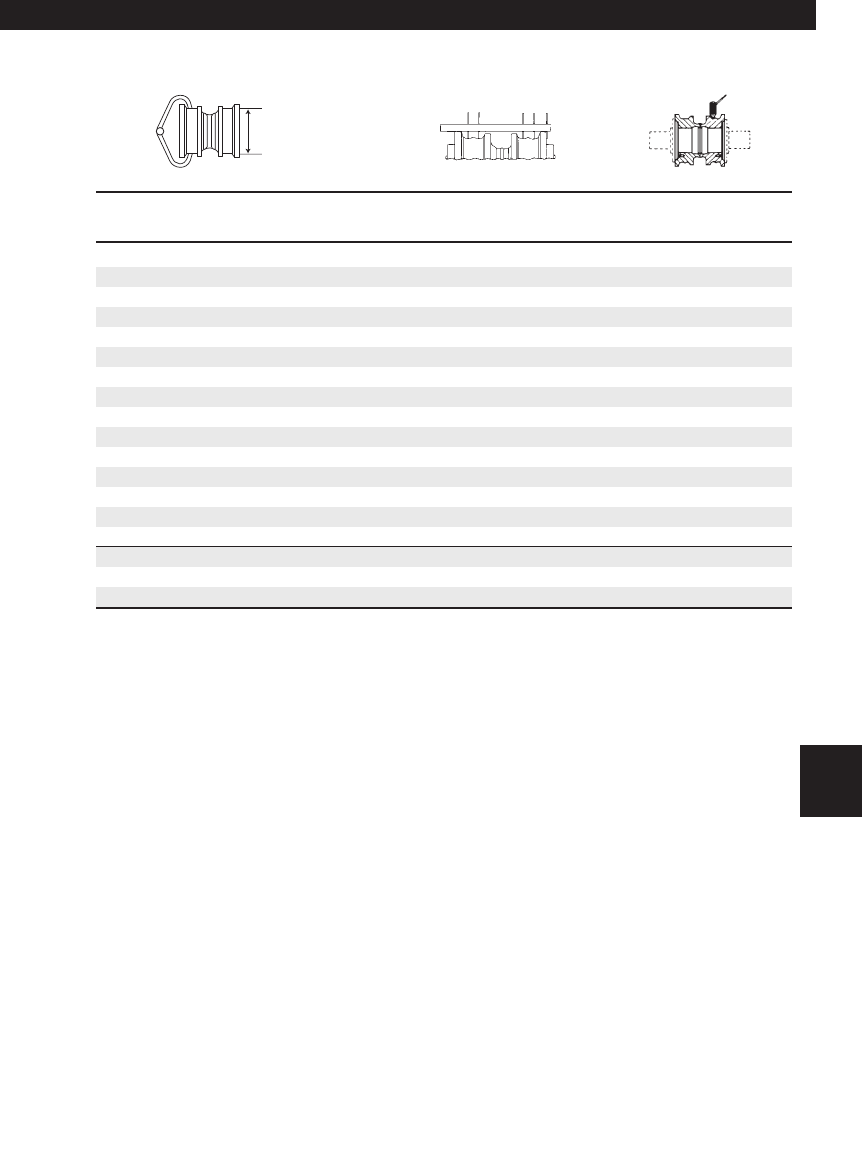

Track Rollers

9W Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

6.14 (156.0) 0 0.86 (22.0) 1.55 (39.4)

6.10 (155.0) 8 0.88 (22.5) 1.53 (38.9)

6.06 (154.0) 16 0.90 (23.0) 1.51 (38.4)

6.02 (153.0) 23 0.92 (23.5) 1.49 (37.8)

5.98 (152.0) 30 0.94 (24.0) 1.47 (37.3)

5.94 (151.0) 37 0.96 (24.5) 1.45 (36.8)

5.90 (150.0) 44 0.98 (25.0) 1.43 (36.3)

5.86 (149.0) 51 1.00 (25.5) 1.41 (35.8)

5.82 (148.0) 58 1.02 (26.0) 1.39 (35.3)

5.78 (147.0) 65 1.04 (26.5) 1.37 (34.8)

5.74 (146.0) 72 1.06 (27.0) 1.35 (34.3)

5.70 (145.0) 79 1.08 (27.5) 1.33 (33.8)

5.66 (144.0) 86 1.10 (28.0) 1.31 (33.3)

5.62 (142.5) 93 1.12 (28.5) 1.29 (32.8)

5.58 (141.5) 100 1.14 (29.0) 1.27 (32.3)

5.54 (140.5) 107 1.16 (29.5) 1.25 (31.8)

5.50 (139.5) 114 1.18 (30.0) 1.23 (31.2)

5.46 (138.5) 121 1.20 (30.5) 1.21 (30.7)

Flange diameter is 7.87" (200 mm)

Undercarriage Code: 434, 440, 442, 445, 453, 454

643

225, 219, 215 S.A., FB221, FB217, DL221 — 7.50" (190 mm) & 6.91" (175.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 643
