Caterpillar Custom Track Service Handbook Page 590

Service Handbook

Page of 826

/ 826

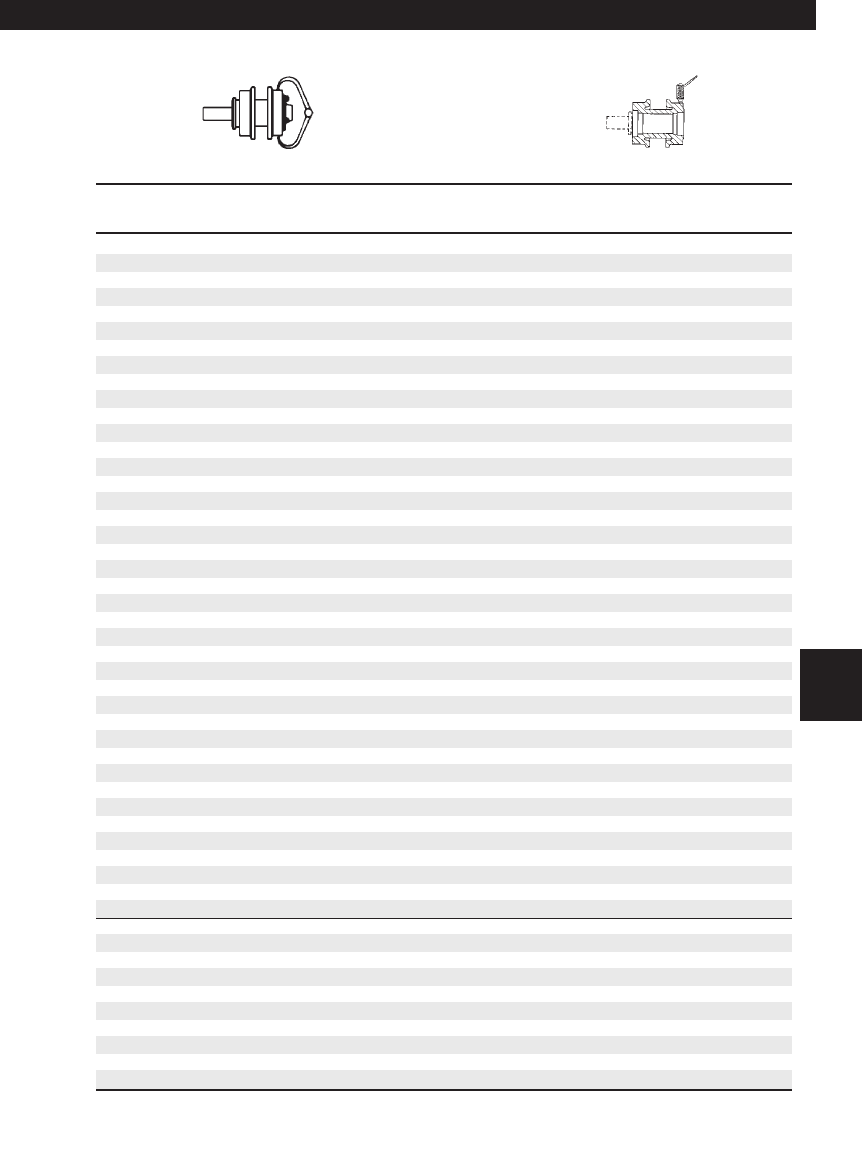

Carrier Rollers

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

9.05 (230.0) 0 2.54 (64.5)

9.01 (229.0) 4 2.52 (64.0)

8.97 (228.0) 8 2.50 (63.5)

8.93 (227.0) 12 2.48 (63.0)

8.89 (226.0) 16 2.46 (62.5)

8.85 (225.0) 20 2.44 (62.0)

8.81 (224.0) 24 2.42 (61.5)

8.77 (223.0) 28 2.40 (61.0)

8.73 (221.5) 32 2.38 (60.5)

8.69 (220.5) 36 2.36 (59.9)

8.65 (219.5) 40 2.34 (59.4)

8.61 (218.5) 44 2.32 (58.9)

8.57 (217.5) 46 2.30 (58.4)

8.53 (216.5) 48 2.28 (57.9)

8.49 (215.5) 50 2.26 (57.4)

8.45 (214.5) 52 2.24 (56.9)

8.41 (213.5) 54 2.22 (56.4)

8.37 (212.5) 56 2.20 (55.9)

8.33 (211.5) 58 2.18 (55.4)

8.29 (210.5) 60 2.16 (54.9)

8.25 (209.5) 62 2.14 (54.4)

8.21 (208.5) 64 2.12 (53.8)

8.17 (207.5) 66 2.10 (53.3)

8.13 (206.5) 68 2.08 (52.8)

8.09 (205.5) 70 2.06 (52.3)

8.05 (204.5) 72 2.04 (51.8)

8.01 (203.5) 74 2.02 (51.3)

7.97 (202.5) 76 2.00 (50.8)

7.93 (201.5) 78 1.98 (50.3)

7.89 (200.5) 80 1.96 (49.8)

7.85 (199.5) 82 1.94 (49.3)

7.81 (198.5) 84 1.92 (48.8)

7.77 (197.5) 86 1.90 (48.3)

7.73 (196.5) 88 1.88 (47.8)

7.69 (195.5) 90 1.86 (47.2)

7.65 (194.5) 92 1.84 (46.7)

7.61 (193.5) 94 1.82 (46.2)

7.57 (192.5) 96 1.80 (45.7)

7.53 (191.5) 98 1.78 (45.2)

7.49 (190.0) 100 1.76 (44.7)

7.45 (189.0) 102 1.74 (44.2)

7.41 (188.0) 104 1.72 (43.7)

7.37 (187.0) 106 1.70 (43.2)

7.33 (186.0) 108 1.68 (42.7)

7.29 (185.0) 110 1.66 (42.2)

7.25 (184.0) 112 1.64 (41.7)

7.21 (183.0) 114 1.62 (41.1)

7.17 (182.0) 116 1.60 (40.6)

7.13 (181.0) 118 1.58 (40.1)

7.09 (180.0) 120 1.56 (39.6)

Undercarriage Code: 665

589

Excavators

5110 — 10.25" (260.4 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 589
