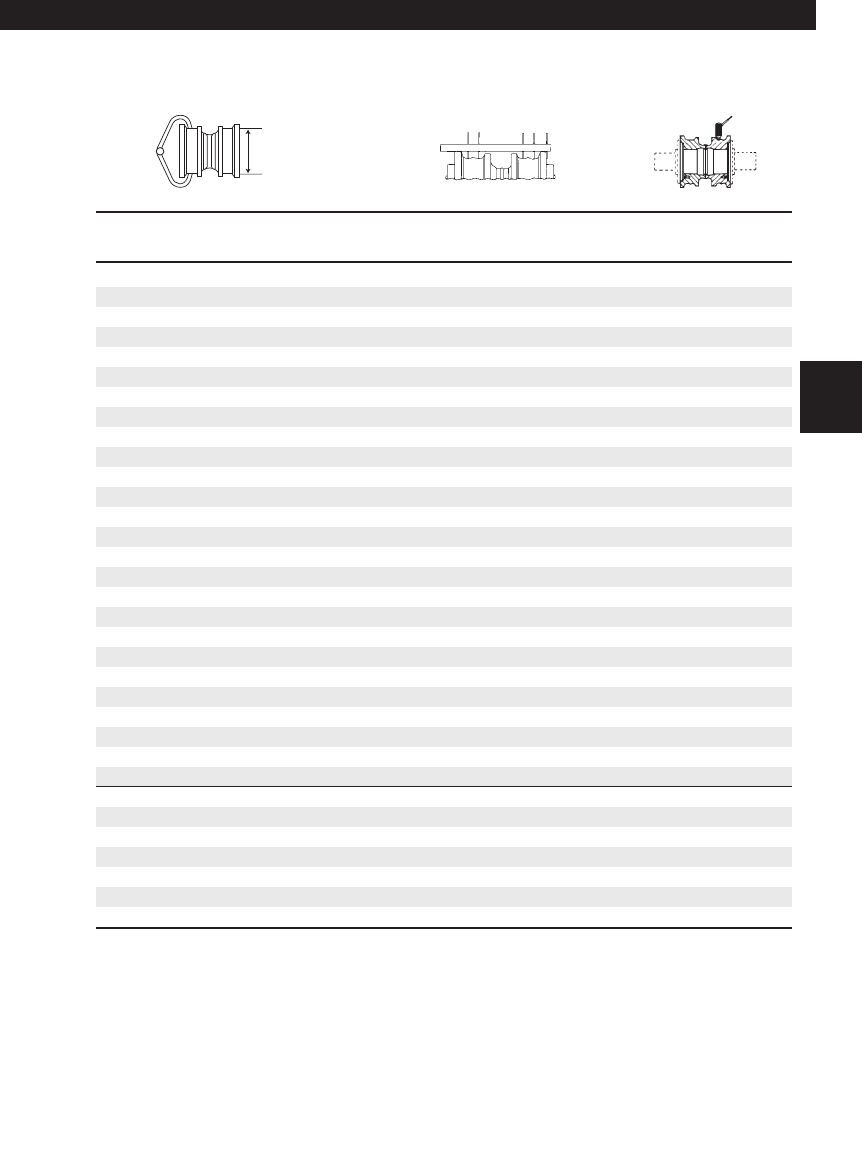

Track Rollers with End Collars

Use with Sealed & Lubricated Track

6Y9261 & 62 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

6.89 (175.0) 0 0.47 (12.0) 1.44 (36.6)

6.85 (174.0) 5 0.49 (12.5) 1.42 (36.1)

6.81 (173.0) 10 0.51 (13.0) 1.40 (35.6)

6.77 (172.0) 15 0.53 (13.5) 1.38 (35.1)

6.73 (171.0) 20 0.55 (14.0) 1.36 (34.5)

6.69 (170.0) 25 0.57 (14.5) 1.34 (34.0)

6.65 (169.0) 30 0.59 (15.0) 1.32 (33.5)

6.61 (168.0) 35 0.61 (15.5) 1.30 (33.0)

6.57 (167.0) 40 0.63 (16.0) 1.28 (32.5)

6.53 (166.0) 45 0.65 (16.5) 1.26 (32.0)

6.49 (165.0) 50 0.67 (17.0) 1.24 (31.5)

6.45 (164.0) 55 0.69 (17.5) 1.22 (31.0)

6.41 (163.0) 60 0.71 (18.0) 1.20 (30.5)

6.37 (162.0) 64 0.73 (18.5) 1.18 (30.0)

6.33 (161.0) 67 0.75 (19.0) 1.16 (29.5)

6.29 (160.0) 70 0.77 (19.5) 1.14 (29.0)

6.25 (159.0) 73 0.79 (20.0) 1.12 (28.4)

6.21 (157.5) 76 0.81 (20.5) 1.10 (27.9)

6.17 (156.5) 79 0.83 (21.0) 1.08 (27.4)

6.13 (155.5) 82 0.85 (21.5) 1.06 (26.9)

6.09 (154.5) 85 0.87 (22.0) 1.04 (26.4)

6.05 (153.5) 88 0.89 (22.5) 1.02 (25.9)

6.01 (152.5) 91 0.91 (23.0) 1.00 (25.4)

5.97 (151.5) 94 0.93 (23.5) 0.98 (24.9)

5.93 (150.5) 97 0.95 (24.0) 0.96 (24.4)

5.89 (149.5) 100 0.97 (24.5) 0.94 (23.9)

5.85 (148.5) 103 0.99 (25.0) 0.92 (23.4)

5.81 (147.5) 106 1.01 (25.5) 0.90 (22.9)

5.77 (146.5) 109 1.03 (26.0) 0.88 (22.4)

5.73 (145.5) 112 1.05 (26.5) 0.86 (21.8)

5.69 (144.5) 115 1.07 (27.0) 0.84 (21.3)

5.65 (143.5) 118 1.09 (27.5) 0.82 (20.8)

5.61 (142.5) 121 1.11 (28.0) 0.80 (20.3)

Flange diameter is 7.83" (199 mm)

Undercarriage Code: 135, 13502, 1353, 13532, 3071

307

D5G, D5C, 939 — 6.75" (171.5 mm)

Low Sprocket Machines
