Caterpillar Custom Track Service Handbook Page 503

Service Handbook

Page of 826

/ 826

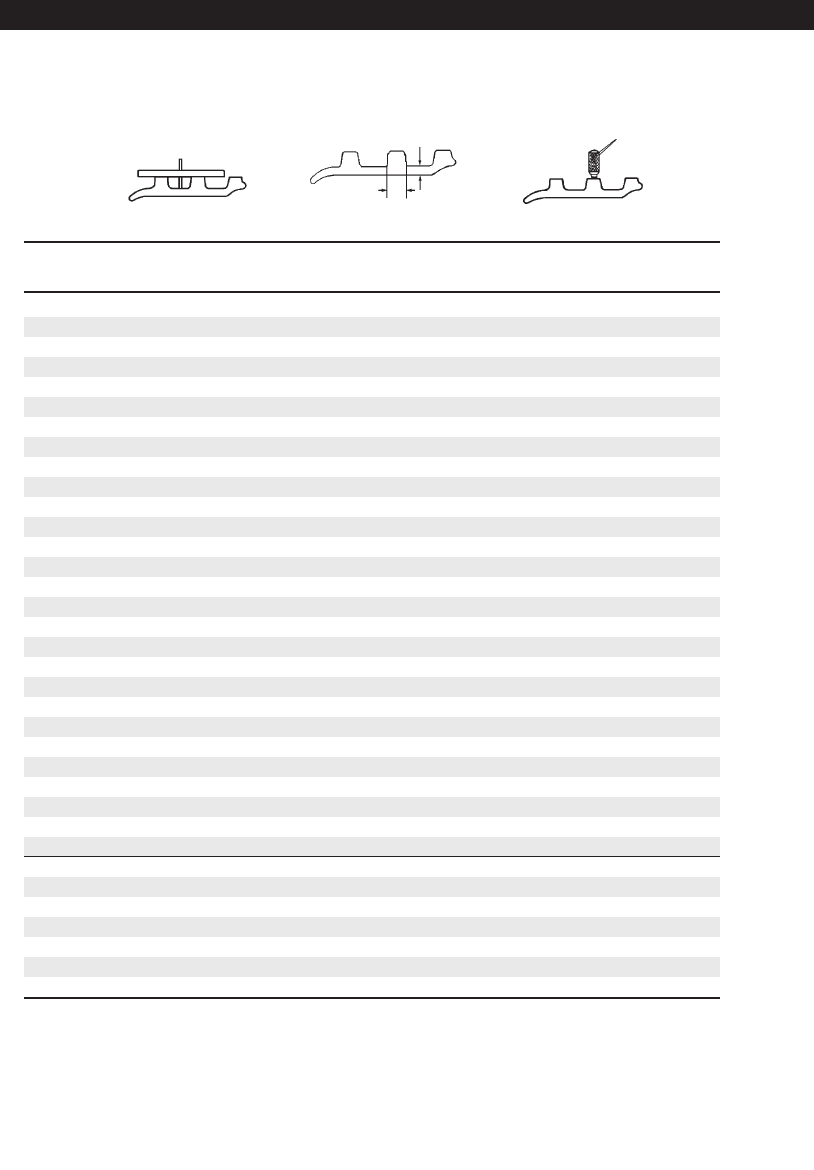

Track Shoes

Triple Grouser

6.06" (154 mm) Pitch

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

0.79 (20.0) 0 1.02 (25.9)

0.77 (19.5) 4 1.00 (25.4)

0.75 (19.0) 8 0.98 (24.9)

0.73 (18.5) 12 0.96 (24.4)

0.71 (18.0) 16 0.94 (23.9)

0.69 (17.5) 20 0.92 (23.4)

0.67 (17.0) 24 0.90 (22.9)

0.65 (16.5) 28 0.88 (22.4)

0.63 (16.0) 32 0.86 (21.8)

0.61 (15.5) 36 0.84 (21.3)

0.59 (15.0) 40 0.82 (20.8)

0.57 (14.5) 44 0.80 (20.3)

0.55 (14.0) 48 0.78 (19.8)

0.53 (13.5) 52 0.76 (19.3)

0.51 (13.0) 56 0.74 (18.8)

0.49 (12.5) 60 0.72 (18.3)

0.47 (12.0) 64 0.70 (17.8)

0.45 (11.5) 68 0.68 (17.3)

0.43 (11.0) 72 0.66 (16.8)

0.41 (10.5) 76 0.64 (16.3)

0.39 (10.0) 79 0.62 (15.7)

0.37 (9.5) 82 0.60 (15.2)

0.35 (9.0) 85 0.58 (14.7)

0.33 (8.5) 88 0.56 (14.2)

0.31 (8.0) 91 0.54 (13.7)

0.29 (7.5) 94 0.52 (13.2)

0.27 (7.0) 97 0.50 (12.7)

0.25 (6.5) 100 0.48 (12.2)

0.23 (6.0) 103 0.46 (11.7)

0.21 (5.5) 106 0.44 (11.2)

0.19 (5.0) 109 0.42 (10.7)

0.17 (4.5) 112 0.40 (10.2)

0.15 (4.0) 115 0.38 (9.7)

0.13 (3.5) 118 0.36 (9.1)

0.11 (3.0) 121 0.34 (8.6)

Undercarriage Code: 503, 504

502

307, 308 — 6.06" (154 mm)

Excavators

.24" (6 mm)

.63" (16 mm)

10.Exc.(488-607) 7/14/03 7:32 AM Page 502
