Caterpillar Custom Track Service Handbook Page 729

Service Handbook

Page of 826

/ 826

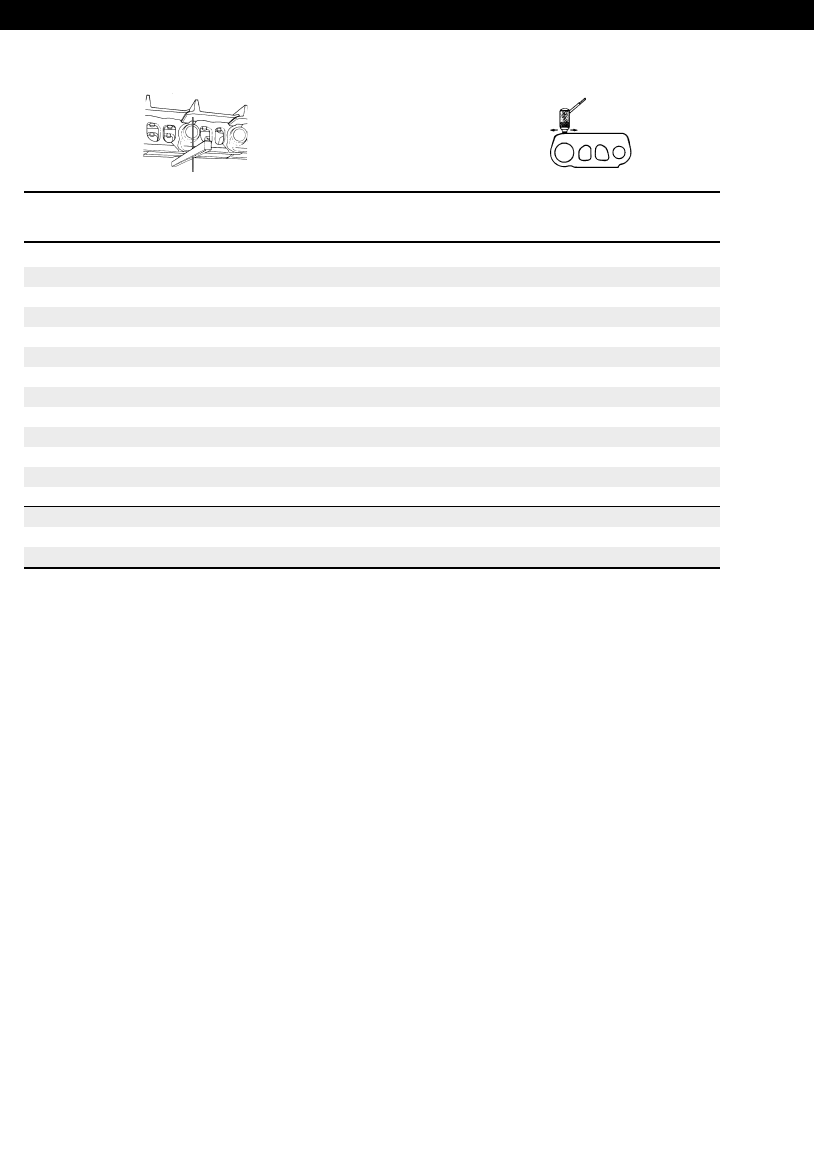

Track Links

931977 & 78

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

3.66 (93.0) 0 1.04 (26.4)

3.64 (92.5) 9 1.02 (25.9)

3.62 (92.0) 18 1.00 (25.4)

3.60 (91.5) 27 0.98 (24.9)

3.58 (91.0) 36 0.96 (24.4)

3.56 (90.5) 45 0.94 (23.9)

3.54 (90.0) 54 0.92 (23.4)

3.52 (89.5) 63 0.90 (22.9)

3.50 (89.0) 72 0.88 (22.4)

3.48 (88.5) 79 0.86 (21.8)

3.46 (88.0) 86 0.84 (21.3)

3.44 (87.5) 93 0.82 (20.8)

3.42 (87.0) 100 0.80 (20.3)

3.40 (86.5) 107 0.78 (19.8)

3.38 (86.0) 114 0.76 (19.3)

3.36 (85.5) 121 0.74 (18.8)

Undercarriage Code: 545

728

E140 — 6.75" (171.5 mm)

Excavators

12.Exc.(710-791) 7/14/03 8:34 AM Page 728
