Caterpillar Custom Track Service Handbook Page 157

Service Handbook

Page of 826

/ 826

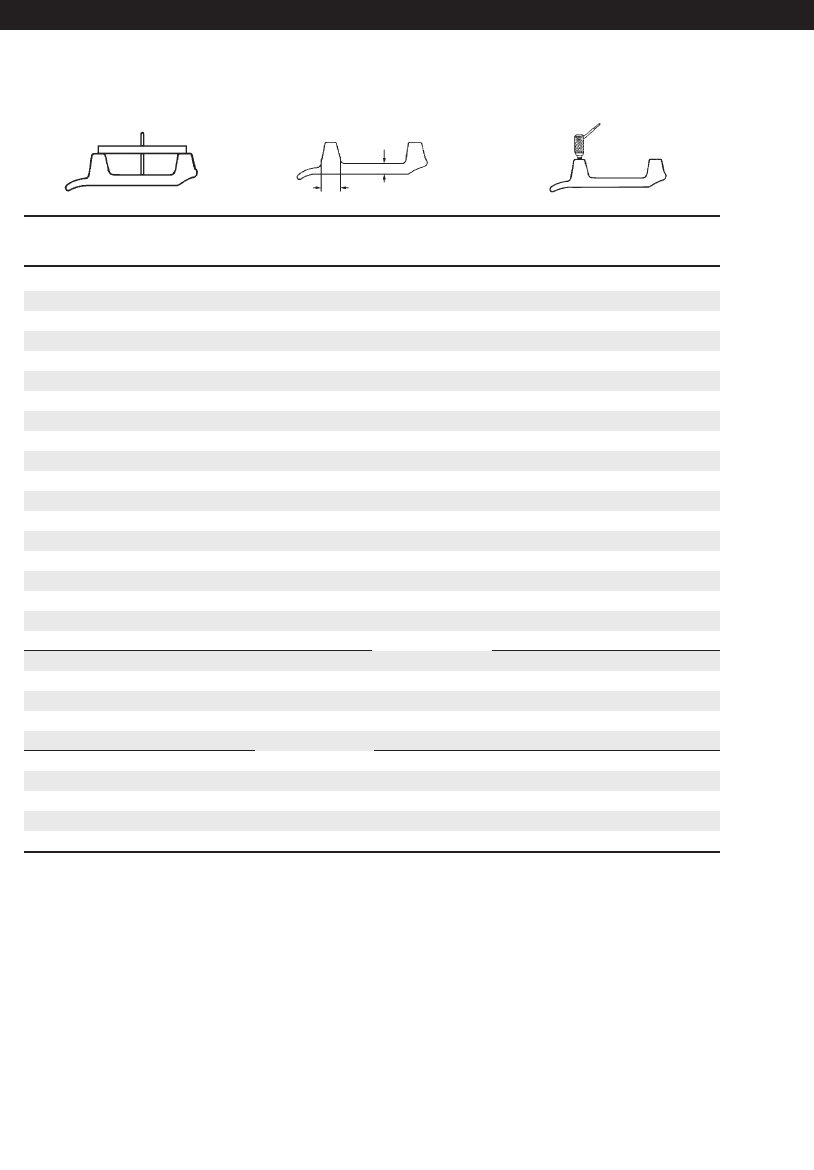

Track Shoes

Double Grouser

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

1.65 (42.0) 0 0 2.20 (55.9)

1.60 (40.5) 6 5 2.15 (54.6)

1.55 (39.5) 12 10 2.10 (53.3)

1.50 (38.0) 18 15 2.05 (52.1)

1.45 (37.0) 24 20 2.00 (50.8)

1.40 (35.5) 30 25 1.95 (49.5)

1.35 (34.5) 36 30 1.90 (48.3)

1.30 (33.0) 42 35 1.85 (47.0)

1.25 (32.0) 48 40 1.80 (45.7)

1.20 (30.5) 54 44 1.75 (44.5)

1.15 (29.0) 60 48 1.70 (43.2)

1.10 (28.0) 65 52 1.65 (41.9)

1.05 (26.5) 70 56 1.60 (40.6)

1.00 (25.5) 75 60 1.55 (39.4)

0.95 (24.0) 80 64 1.50 (38.1)

0.90 (23.0) 85 68 1.45 (36.8)

0.85 (21.5) 90 72 1.40 (35.6)

0.80 (20.5) 95 76 1.35 (34.3)

0.75 (19.0) 100 80 1.30 (33.0)

0.70 (18.0) 105 84 1.25 (31.8)

0.65 (16.5) 110 88 1.20 (30.5)

0.60 (15.0) 115 92 1.15 (29.2)

0.55 (14.0) 120 96 1.10 (27.9)

0.50 (12.5) 100 1.05 (26.7)

0.45 (11.5) 104 1.00 (25.4)

0.40 (10.0) 108 0.95 (24.1)

0.35 (9.0) 112 0.90 (22.9)

0.30 (7.5) 116 0.85 (21.6)

0.25 (6.5) 120 0.80 (20.3)

Undercarriage Code: 150, 153, 157, 1578, 158, 1581, 163, 290, 2901, 291

156

D6H, D6R, 527 — 8.00" (203.2 mm)

Elevated Sprocket Machines

.57" (14.5 mm)

1.22" (31 mm)

03.Elev.(146-197) 7/11/03 3:44 PM Page 156
