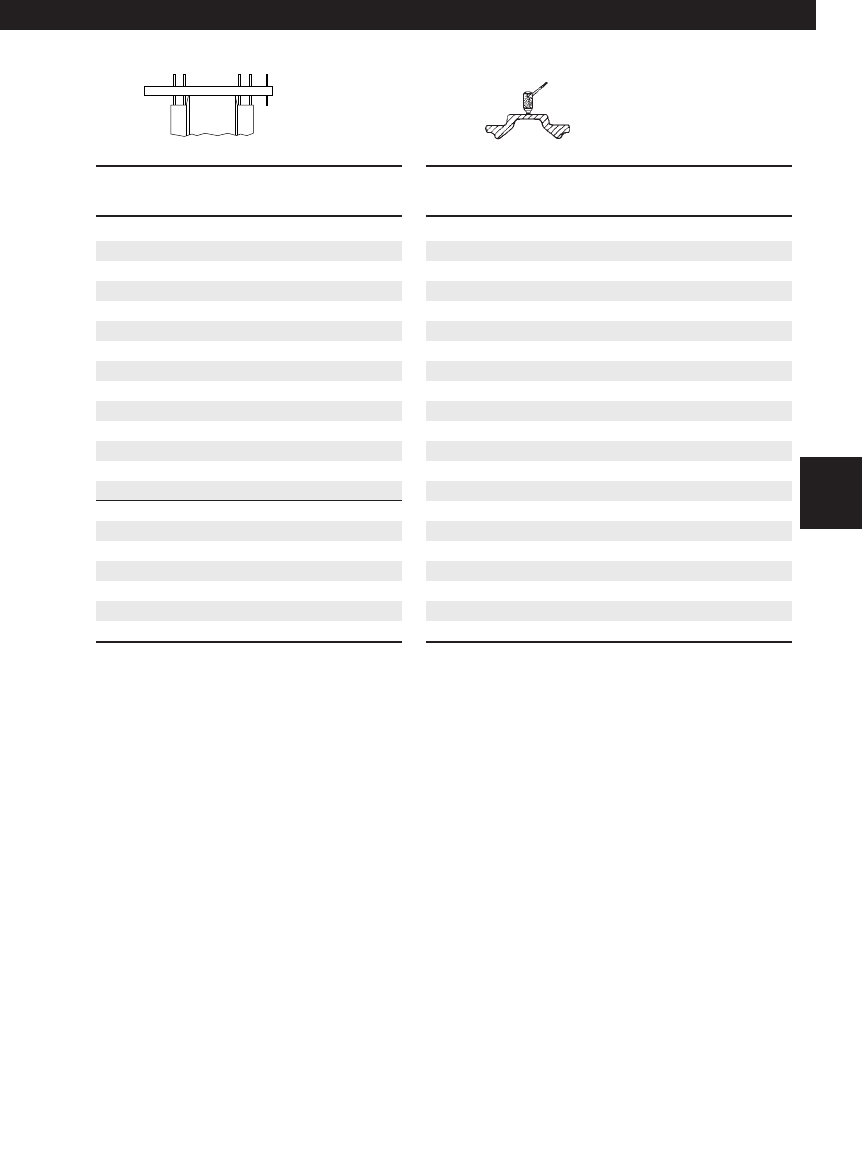

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.88 (22.5) 0 0.42 (10.7) 0.00 (0.0)

0.90 (23.0) 12 0.40 (10.2) 0.02 (0.5)

0.92 (23.5) 24 0.38 (9.7) 0.04 (1.0)

0.94 (24.0) 36 0.36 (9.1) 0.06 (1.5)

0.96 (24.5) 48 0.34 (8.6) 0.08 (2.0)

0.98 (25.0) 60 0.32 (8.1) 0.10 (2.5)

1.00 (25.5) 72 0.30 (7.6) 0.12 (3.0)

1.02 (26.0) 82 0.28 (7.1) 0.14 (3.5)

1.04 (26.5) 85 0.26 (6.6) 0.16 (4.0)

1.06 (27.0) 88 0.24 (6.1) 0.18 (4.5)

1.08 (27.5) 91 0.22 (5.6) 0.20 (5.0)

1.10 (28.0) 94 0.20 (5.1) 0.22 (5.5)

1.12 (28.5) 97 0.18 (4.6) 0.24 (6.0)

1.14 (29.0) 100 0.16 (4.1) 0.26 (6.5)

1.16 (29.5) 103 0.14 (3.6) 0.28 (7.0)

1.18 (30.0) 106 0.12 (3.0) 0.30 (7.5)

1.20 (30.5) 109 0.10 (2.5) 0.32 (8.0)

1.22 (31.0) 112 0.08 (2.0) 0.34 (8.5)

1.24 (31.5) 115 0.06 (1.5) 0.36 (9.0)

1.26 (32.0) 118 0.04 (1.0) 0.38 (9.5)

1.28 (32.5) 121 0.02 (0.5) 0.40 (10.0)

NOTE: Ultrasonic measurement is to determine

flange wear only.

Undercarriage Code: 1545

407

D6 — 8.00" (203.2 mm)

Cat Classic Undercarriage

08.Classic(388-425) 7/14/03 7:31 AM Page 407
