Swapping Carrier Rollers

Carrier rollers can be swapped from front

to rear and left to right to help balance

their wear life in cases where conditions

have caused unequal wear rates. Criteria

are: greater than 1.5:1 ratio and average

less than 60 percent worn.

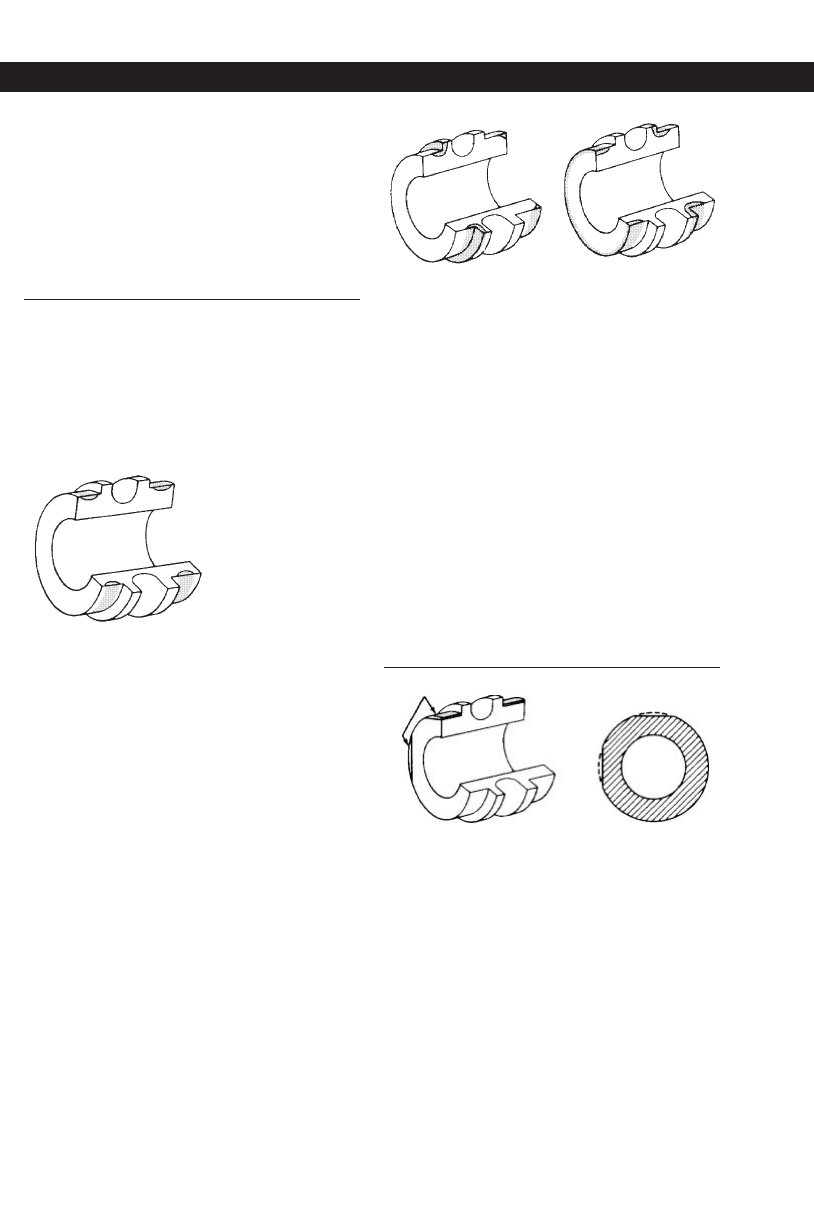

Carrier Roller Wear Patterns

There are three principle wear patterns

found on carrier rollers. In each case the

effect on the links may be more critical,

considering total undercarriage life, than

on the carrier rollers themselves.

Tread Wear

(Uniform)

CAUSES: (1) Rolling and sliding motion

with link rail (top) surfaces. (2) Sliding

contact with packing material on roller

frame.

ACCELERATORS: Machine speed.

Weight of track which is governed by shoe

width including packing material. Track

tension is primary controllable variable as

tight track increases loads and too loose

track causes impact between links and

tread surface, particularly in forward

motion.

EFFECT: Wear life of carrier roller and

links. No other components affected

unless service limit exceeded, then flanges

may strike bushings causing unusual wear

pattern and premature failure.

REMEDIES: Maintain proper track tension

and reduce or eliminate other controllable

accelerator variables. Rebuild or replace

carrier roller shell when service limit reached.

Uneven Flange Side Wear and Off-

center Tread Wear

CAUSES: Rolling and sliding contact

with link rail top and sides not aligned

with carrier roller.

ACCELERATORS: Same as “Carrier

Roller Tread Wear” plus terrain and side-

hill; and misalignment of carrier rollers,

sprocket and/or idler. Offset shoes will

move track to outboard side.

EFFECTS: Loss of potential wear life and

rebuildability of carrier roller and links.

REMEDIES: Reduce or eliminate control-

lable accelerators. Swap carrier roller to

balance wear.

Flat Spots on Tread

CAUSES: Sliding contact with link rail

tops when carrier roller not turning.

ACCELERATORS: Same as “Even Tread

Wear.” Packing between roller frame and

carrier roller is principle cause of seizing.

EFFECT: Reduced wear life and rebuild-

ability of carrier rollers. Accelerated wear

on links.

REMEDIES: Clean packing material away

from carrier rollers.

Flat Spots

CARRIER ROLLERS

General Information
