Track Links

6Y6721 & 22

Not for use on 365

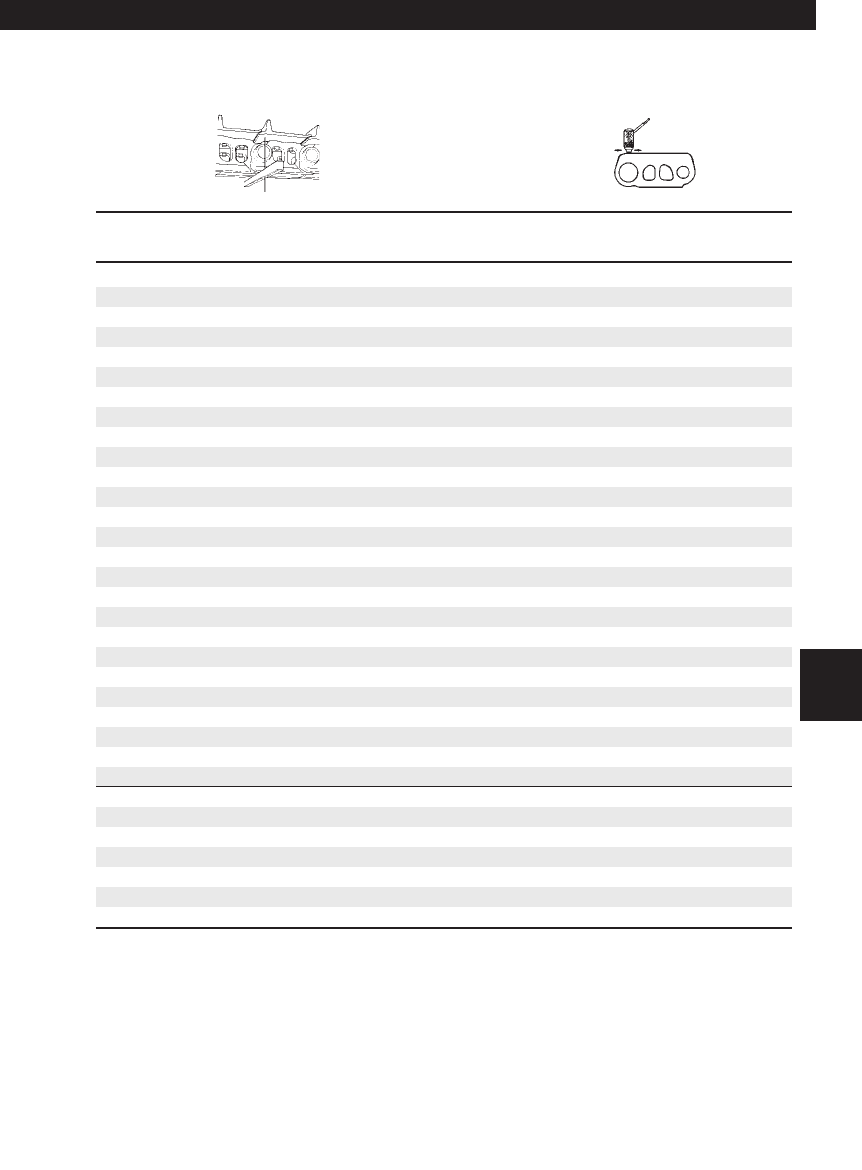

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

6.12 (155.5) 0 1.55 (39.4)

6.10 (155.0) 6 1.53 (38.9)

6.08 (154.5) 12 1.51 (38.4)

6.06 (154.0) 18 1.49 (37.8)

6.04 (153.5) 24 1.47 (37.3)

6.02 (153.0) 30 1.45 (36.8)

6.00 (152.5) 36 1.43 (36.3)

5.98 (152.0) 42 1.41 (35.8)

5.96 (151.5) 48 1.39 (35.3)

5.94 (151.0) 52 1.37 (34.8)

5.92 (150.5) 55 1.35 (34.3)

5.90 (150.0) 58 1.33 (33.8)

5.88 (149.5) 61 1.31 (33.3)

5.86 (149.0) 64 1.29 (32.8)

5.84 (148.5) 67 1.27 (32.3)

5.82 (148.0) 70 1.25 (31.8)

5.80 (147.5) 73 1.23 (31.2)

5.78 (147.0) 76 1.21 (30.7)

5.76 (146.5) 79 1.19 (30.2)

5.74 (146.0) 82 1.17 (29.7)

5.72 (145.5) 85 1.15 (29.2)

5.70 (145.0) 88 1.13 (28.7)

5.68 (144.5) 91 1.11 (28.2)

5.66 (144.0) 94 1.09 (27.7)

5.64 (143.5) 97 1.07 (27.2)

5.62 (142.5) 100 1.05 (26.7)

5.60 (142.0) 103 1.03 (26.2)

5.58 (141.5) 106 1.01 (25.7)

5.56 (141.0) 109 0.99 (25.1)

5.54 (140.5) 112 0.97 (24.6)

5.52 (140.0) 115 0.95 (24.1)

5.50 (139.5) 118 0.93 (23.6)

5.48 (139.0) 121 0.91 (23.1)

Undercarriage Code: 641, 650, 660, 662

575

Excavators

375, 385, 5080, 5090 — 10.25" (260.4 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 575
