Caterpillar Custom Track Service Handbook Page 702

Service Handbook

Page of 826

/ 826

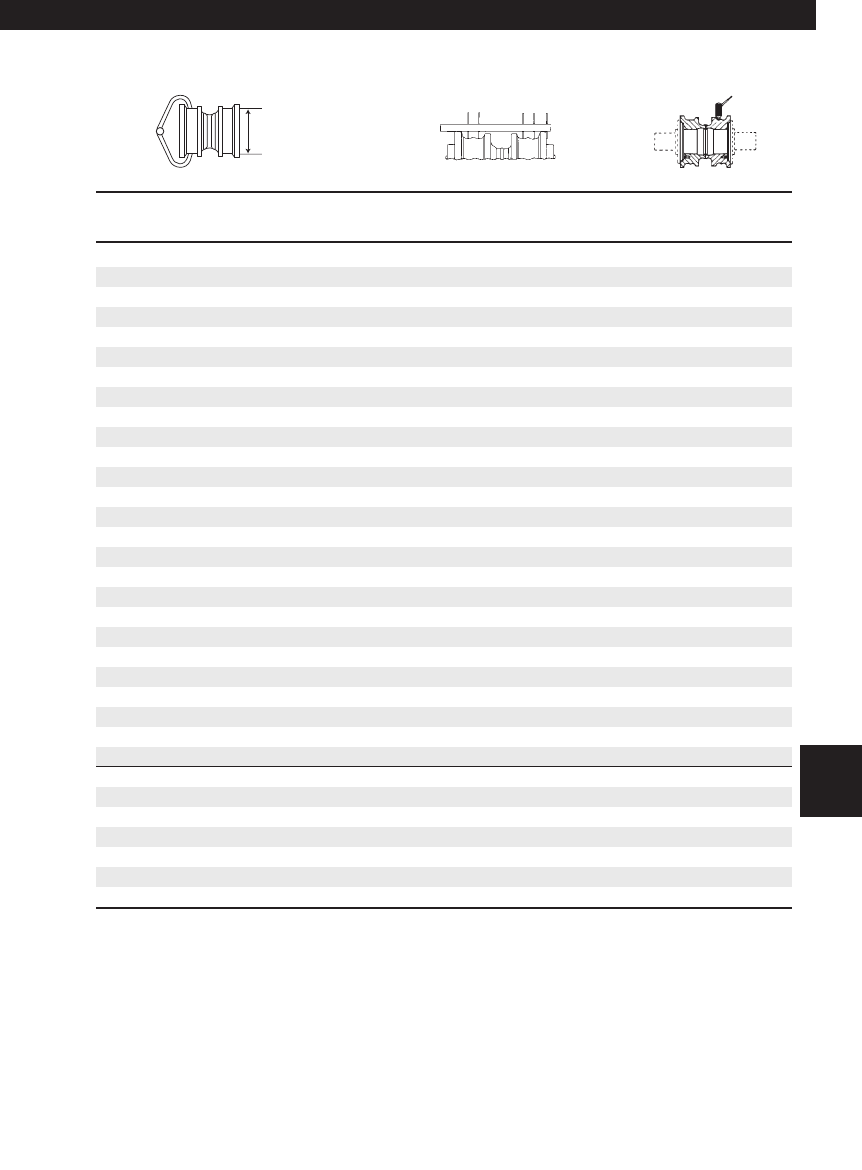

Track Rollers

9G Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

9.56 (243.0) 0 0.88 (22.5) 2.40 (61.0)

9.52 (242.0) 4 0.90 (23.0) 2.38 (60.5)

9.48 (241.0) 8 0.92 (23.5) 2.36 (59.9)

9.44 (240.0) 12 0.94 (24.0) 2.34 (59.4)

9.40 (239.0) 16 0.96 (24.5) 2.32 (58.9)

9.36 (237.5) 20 0.98 (25.0) 2.30 (58.4)

9.32 (236.5) 24 1.00 (25.5) 2.28 (57.9)

9.28 (235.5) 28 1.02 (26.0) 2.26 (57.4)

9.24 (234.5) 32 1.04 (26.5) 2.24 (56.9)

9.20 (233.5) 36 1.06 (27.0) 2.22 (56.4)

9.16 (232.5) 40 1.08 (27.5) 2.20 (55.9)

9.12 (231.5) 44 1.10 (28.0) 2.18 (55.4)

9.08 (230.5) 48 1.12 (28.5) 2.16 (54.9)

9.04 (229.5) 52 1.14 (29.0) 2.14 (54.4)

9.00 (228.5) 56 1.16 (29.5) 2.12 (53.8)

8.96 (227.5) 60 1.18 (30.0) 2.10 (53.3)

8.92 (226.5) 64 1.20 (30.5) 2.08 (52.8)

8.88 (225.5) 68 1.22 (31.0) 2.06 (52.3)

8.84 (224.5) 72 1.24 (31.5) 2.04 (51.8)

8.80 (223.5) 76 1.26 (32.0) 2.02 (51.3)

8.76 (222.5) 80 1.28 (32.5) 2.00 (50.8)

8.72 (221.5) 84 1.30 (33.0) 1.98 (50.3)

8.68 (220.5) 88 1.32 (33.5) 1.96 (49.8)

8.64 (219.5) 92 1.34 (34.0) 1.94 (49.3)

8.60 (218.5) 96 1.36 (34.5) 1.92 (48.8)

8.56 (217.5) 100 1.38 (35.0) 1.90 (48.3)

8.52 (216.5) 103 1.40 (35.5) 1.88 (47.8)

8.48 (215.5) 106 1.42 (36.0) 1.86 (47.2)

8.44 (214.5) 109 1.44 (36.5) 1.84 (46.7)

8.40 (213.5) 112 1.46 (37.0) 1.82 (46.2)

8.36 (212.5) 115 1.48 (37.5) 1.80 (45.7)

8.32 (211.5) 118 1.50 (38.0) 1.78 (45.2)

8.28 (210.5) 121 1.52 (38.5) 1.76 (44.7)

Flange diameter is 11.31" (287 mm)

Undercarriage Code: 491

701

245 — 10.25" (260.4 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 701
