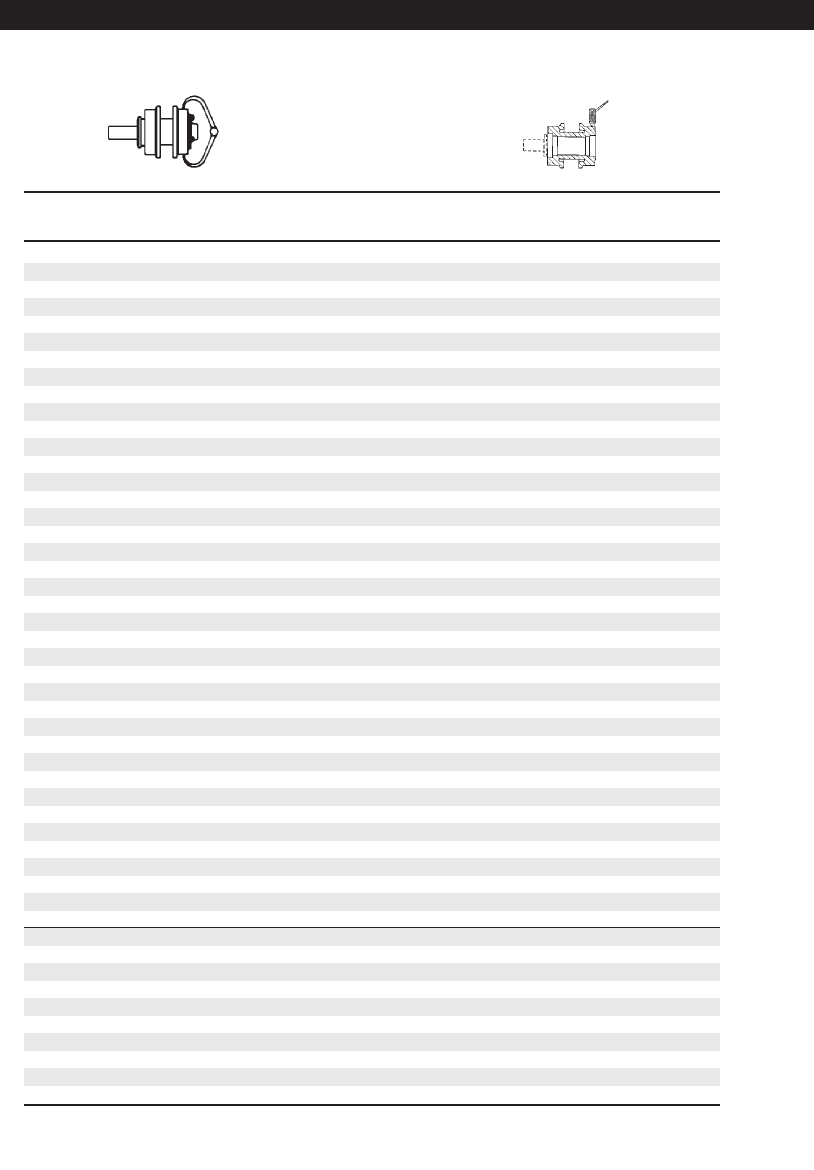

Carrier Rollers

Use with 1061625 & 26 Heavy Duty and Rotating Bushing Track

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

6.75 (171.5) 0 1.55 (39.4)

6.71 (170.5) 3 1.53 (38.9)

6.67 (169.5) 6 1.51 (38.4)

6.63 (168.5) 9 1.49 (37.8)

6.59 (167.5) 12 1.47 (37.3)

6.55 (166.5) 15 1.45 (36.8)

6.51 (165.5) 18 1.43 (36.3)

6.47 (164.5) 21 1.41 (35.8)

6.43 (163.5) 24 1.39 (35.3)

6.39 (162.5) 27 1.37 (34.8)

6.35 (161.5) 30 1.35 (34.3)

6.31 (160.5) 33 1.33 (33.8)

6.27 (159.5) 36 1.31 (33.3)

6.23 (158.0) 39 1.29 (32.8)

6.19 (157.0) 42 1.27 (32.3)

6.15 (156.0) 45 1.25 (31.8)

6.11 (155.0) 48 1.23 (31.2)

6.07 (154.0) 51 1.21 (30.7)

6.03 (153.0) 54 1.19 (30.2)

5.99 (152.0) 57 1.17 (29.7)

5.95 (151.0) 60 1.15 (29.2)

5.91 (150.0) 63 1.13 (28.7)

5.87 (149.0) 66 1.11 (28.2)

5.83 (148.0) 69 1.09 (27.7)

5.79 (147.0) 72 1.07 (27.2)

5.75 (146.0) 74 1.05 (26.7)

5.71 (145.0) 76 1.03 (26.2)

5.67 (144.0) 78 1.01 (25.7)

5.63 (143.0) 80 0.99 (25.1)

5.59 (142.0) 82 0.97 (24.6)

5.55 (141.0) 84 0.95 (24.1)

5.51 (140.0) 86 0.93 (23.6)

5.47 (139.0) 88 0.91 (23.1)

5.43 (138.0) 90 0.89 (22.6)

5.39 (137.0) 92 0.87 (22.1)

5.35 (136.0) 94 0.85 (21.6)

5.31 (135.0) 96 0.83 (21.1)

5.27 (134.0) 98 0.81 (20.6)

5.23 (133.0) 100 0.79 (20.1)

5.19 (132.0) 102 0.77 (19.6)

5.15 (131.0) 104 0.75 (19.1)

5.11 (130.0) 106 0.73 (18.5)

5.07 (129.0) 108 0.71 (18.0)

5.03 (128.0) 110 0.69 (17.5)

4.99 (126.5) 112 0.67 (17.0)

4.95 (125.5) 114 0.65 (16.5)

4.91 (124.5) 116 0.63 (16.0)

4.87 (123.5) 118 0.61 (15.5)

4.83 (122.5) 120 0.59 (15.0)

Undercarriage Code: 1338, 137, 140, 141, 1411, 144, 146, 1461, 280, 281

140

D5H, D6M, D6N, 517 — 7.50" (190 mm)

Elevated Sprocket Machines
