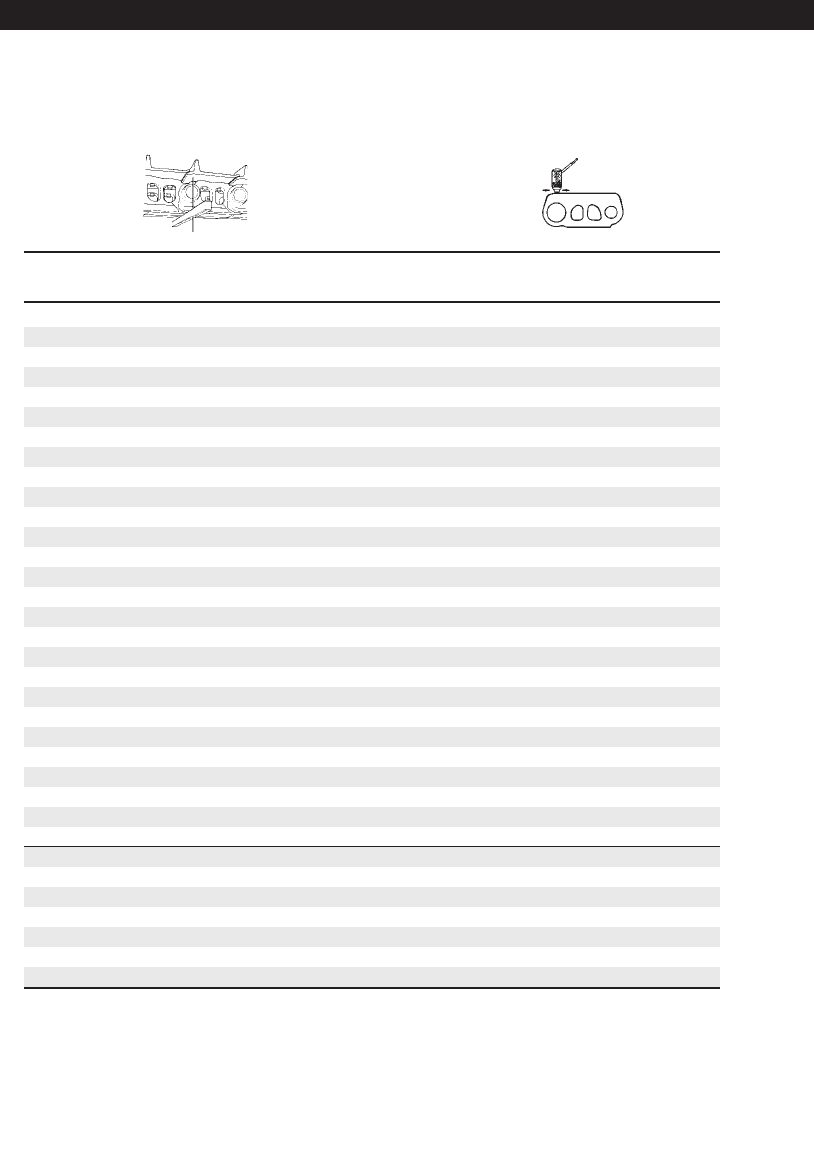

Track Links

Heavy Duty Track

Rotating Bushing Track

8E7405 & 06

195-6515 & 16

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

5.19 (132.0) 0 1.69 (42.9)

5.17 (131.5) 4 1.67 (42.4)

5.15 (131.0) 8 1.65 (41.9)

5.13 (130.5) 12 1.63 (41.4)

5.11 (130.0) 16 1.61 (40.9)

5.09 (129.5) 20 1.59 (40.4)

5.07 (129.0) 24 1.57 (39.9)

5.05 (128.5) 28 1.55 (39.4)

5.03 (128.0) 32 1.53 (38.9)

5.01 (127.5) 36 1.51 (38.4)

4.99 (126.5) 40 1.49 (37.8)

4.97 (126.0) 44 1.47 (37.3)

4.95 (125.5) 48 1.45 (36.8)

4.93 (125.0) 52 1.43 (36.3)

4.91 (124.5) 56 1.41 (35.8)

4.89 (124.0) 60 1.39 (35.3)

4.87 (123.5) 64 1.37 (34.8)

4.85 (123.0) 68 1.35 (34.3)

4.83 (122.5) 72 1.33 (33.8)

4.81 (122.0) 76 1.31 (33.3)

4.79 (121.5) 80 1.29 (32.8)

4.77 (121.0) 84 1.27 (32.3)

4.75 (120.5) 88 1.25 (31.8)

4.73 (120.0) 91 1.23 (31.2)

4.71 (119.5) 94 1.21 (30.7)

4.69 (119.0) 97 1.19 (30.2)

4.67 (118.5) 100 1.17 (29.7)

4.65 (118.0) 103 1.15 (29.2)

4.63 (117.5) 106 1.13 (28.7)

4.61 (117.0) 109 1.11 (28.2)

4.59 (116.5) 112 1.09 (27.7)

4.57 (116.0) 115 1.07 (27.2)

4.55 (115.5) 118 1.05 (26.7)

4.53 (115.0) 121 1.03 (26.2)

Undercarriage Code: 153, 157, 158, 1581, 163, 290, 2901, 291

148

D6H, D6R, 527 — 8.00" (203.2 mm)

Elevated Sprocket Machines

03.Elev.(146-197) 7/11/03 3:44 PM Page 148
