Caterpillar Custom Track Service Handbook Page 285

Service Handbook

Page of 826

/ 826

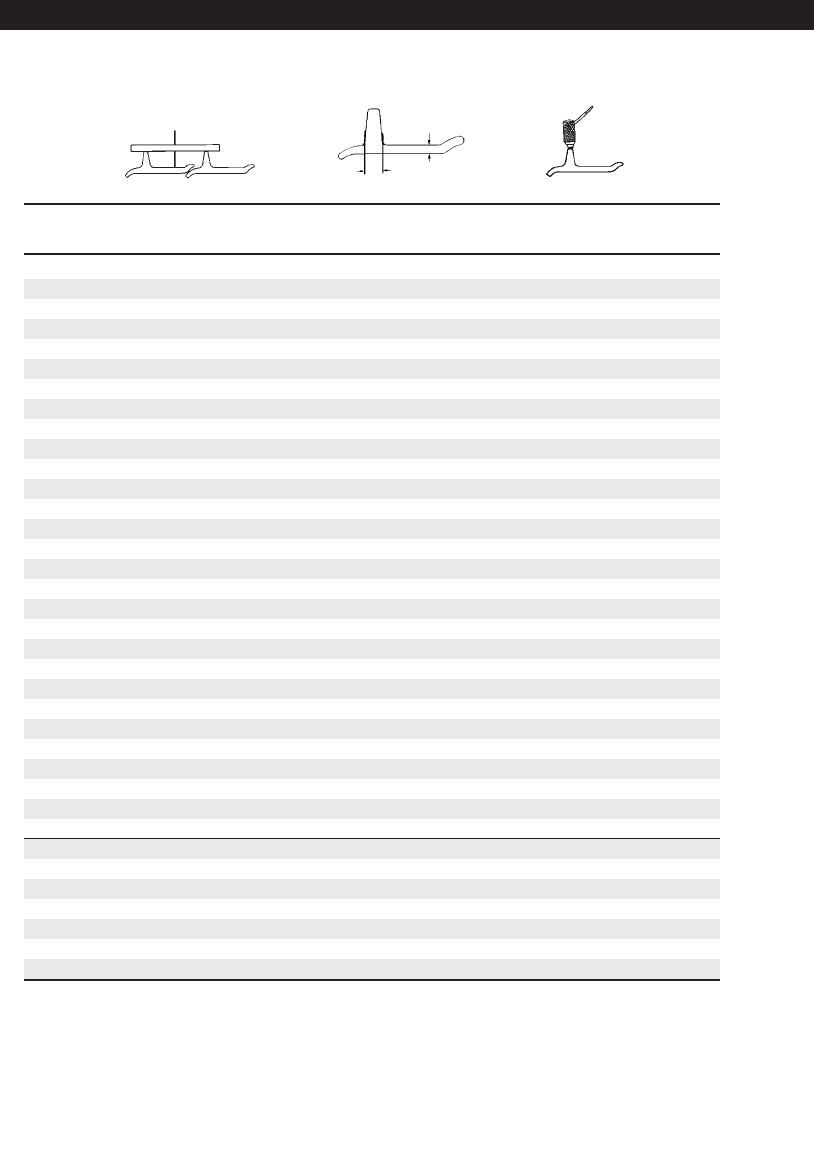

Track Shoes

Extreme Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.25 (57.0) 0 2.75 (69.9)

2.20 (56.0) 4 2.70 (68.6)

2.15 (54.5) 8 2.65 (67.4)

2.10 (53.5) 12 2.60 (66.1)

2.05 (52.0) 16 2.55 (64.8)

2.00 (51.0) 20 2.50 (63.6)

1.95 (49.5) 24 2.45 (62.3)

1.90 (48.5) 28 2.40 (61.0)

1.85 (47.0) 32 2.35 (59.7)

1.80 (45.5) 36 2.30 (58.5)

1.75 (44.5) 40 2.25 (57.2)

1.70 (43.0) 44 2.20 (55.9)

1.65 (42.0) 48 2.15 (54.7)

1.60 (40.5) 52 2.10 (53.4)

1.55 (39.5) 56 2.05 (52.1)

1.50 (38.0) 60 2.00 (50.9)

1.45 (37.0) 64 1.95 (49.6)

1.40 (35.5) 67 1.90 (48.3)

1.35 (34.5) 70 1.85 (47.0)

1.30 (33.0) 73 1.80 (45.8)

1.25 (32.0) 76 1.75 (44.5)

1.20 (30.5) 79 1.70 (43.2)

1.15 (29.0) 82 1.65 (42.0)

1.10 (28.0) 85 1.60 (40.7)

1.05 (26.5) 88 1.55 (39.4)

1.00 (25.5) 91 1.50 (38.2)

0.95 (24.0) 94 1.45 (36.9)

0.90 (23.0) 97 1.40 (35.6)

0.85 (21.5) 100 1.35 (34.3)

0.80 (20.5) 103 1.30 (33.1)

0.75 (19.0) 106 1.25 (31.8)

0.70 (18.0) 109 1.20 (30.5)

0.65 (16.5) 112 1.15 (29.3)

0.60 (15.0) 115 1.10 (28.0)

0.55 (14.0) 118 1.05 (26.7)

0.50 (12.5) 121 1.00 (25.5)

Undercarriage Code: 116, 118, 311, 313

284

D4, 941 — 6.75" (171.5 mm)

Low Sprocket Machines

.50" (12.7 mm)

.91" (23 mm)

05.Low(246-325) 7/11/03 3:52 PM Page 284
