Caterpillar Custom Track Service Handbook Page 416

Service Handbook

Page of 826

/ 826

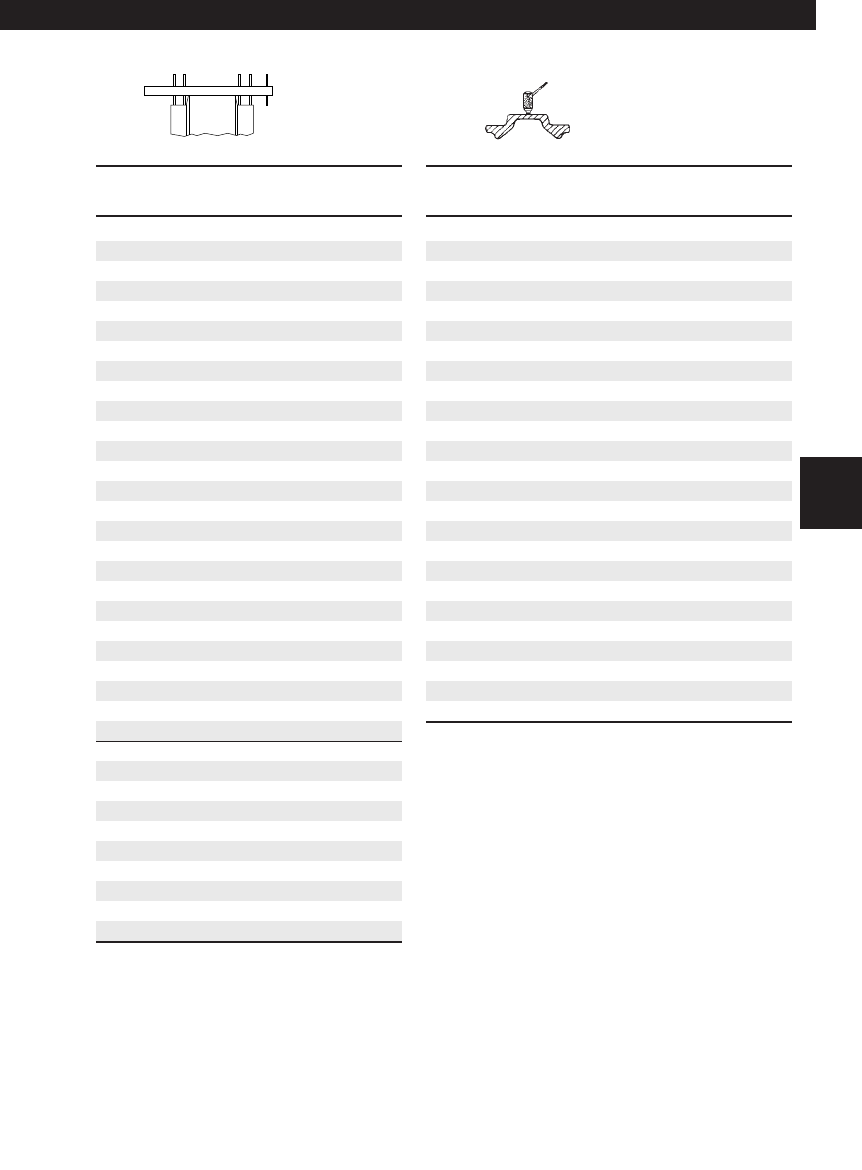

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.49 (12.4) 0.00 (0.0)

0.80 (20.5) 6 0.47 (11.9) 0.02 (0.5)

0.82 (21.0) 12 0.45 (11.4) 0.04 (1.0)

0.84 (21.5) 18 0.43 (10.9) 0.06 (1.5)

0.86 (22.0) 24 0.41 (10.4) 0.08 (2.0)

0.88 (22.5) 30 0.39 (9.9) 0.10 (2.5)

0.90 (23.0) 36 0.37 (9.4) 0.12 (3.0)

0.92 (23.5) 42 0.35 (8.9) 0.14 (3.5)

0.94 (24.0) 48 0.33 (8.4) 0.16 (4.0)

0.96 (24.5) 54 0.31 (7.9) 0.18 (4.5)

0.98 (25.0) 60 0.29 (7.4) 0.20 (5.0)

1.00 (25.5) 66 0.27 (6.9) 0.22 (5.5)

1.02 (26.0) 72 0.25 (6.3) 0.24 (6.0)

1.04 (26.5) 76 0.23 (5.8) 0.26 (6.5)

1.06 (27.0) 78 0.21 (5.3) 0.28 (7.0)

1.08 (27.5) 80 0.19 (4.8) 0.30 (7.5)

1.10 (28.0) 82 0.17 (4.3) 0.32 (8.0)

1.12 (28.5) 84 0.15 (3.8) 0.34 (8.5)

1.14 (29.0) 86 0.13 (3.3) 0.36 (9.0)

1.16 (29.5) 88 0.11 (2.8) 0.38 (9.5)

1.18 (30.0) 90 0.09 (2.3) 0.40 (10.0)

1.20 (30.5) 92 0.07 (1.8) 0.42 (10.5)

1.22 (31.0) 94 0.05 (1.3) 0.44 (11.0)

1.24 (31.5) 96 0.03 (0.8) 0.46 (11.5)

1.26 (32.0) 98 0.01 (0.3) 0.48 (12.0)

1.28 (32.5) 100

NOTE: Ultrasonic measurement is to determine

1.30 (33.0) 102

flange wear only.

1.32 (33.5) 104

1.34 (34.0) 106

1.36 (34.5) 108

1.38 (35.0) 110

1.40 (35.5) 112

1.42 (36.0) 114

1.44 (36.5) 116

1.46 (37.0) 118

1.48 (37.5) 120

Flange width: 4.02" (102 mm)

Undercarriage Code: 1655

415

D7 — 8.50" (215.9 mm)

Cat Classic Undercarriage

08.Classic(388-425) 7/14/03 7:31 AM Page 415
