Caterpillar Custom Track Service Handbook Page 812

Service Handbook

Page of 826

/ 826

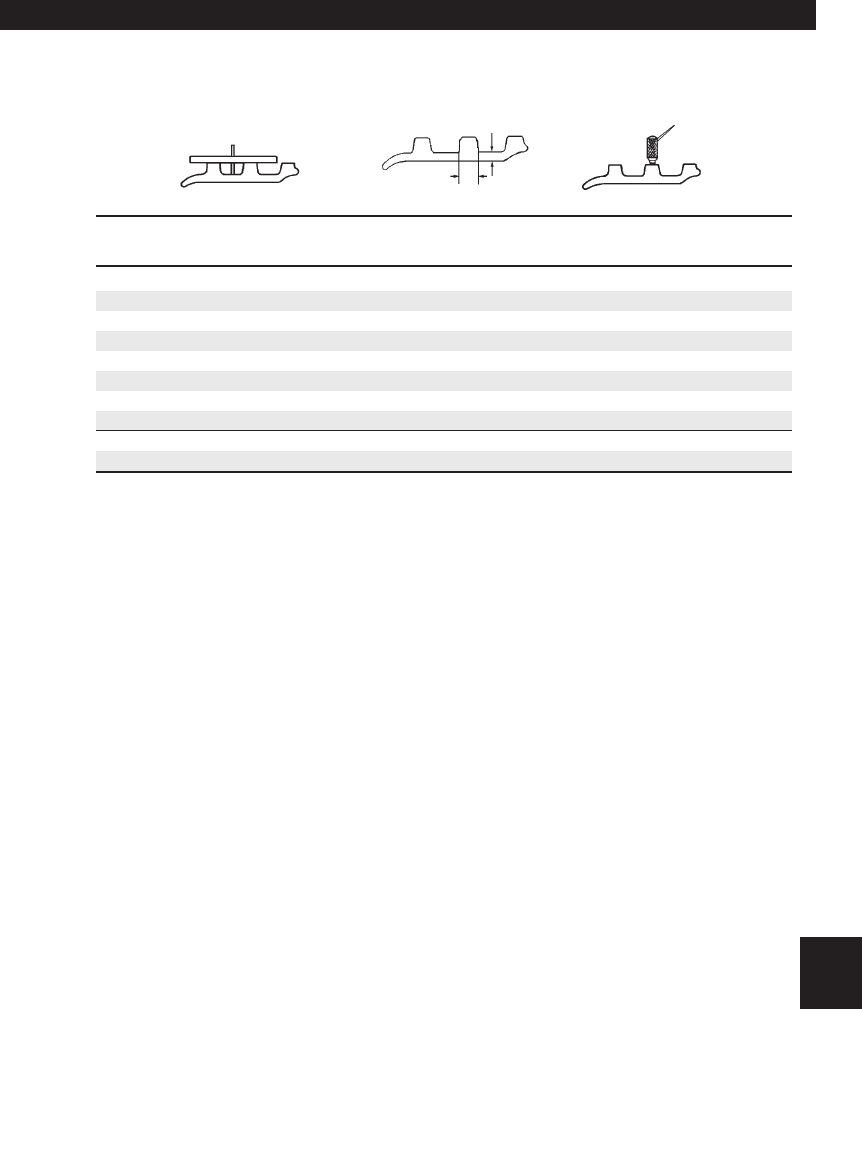

Track Shoes

Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

0.60 (15.0) 0 1.00 (25.4)

0.55 (14.0) 15 0.95 (24.1)

0.50 (12.5) 30 0.90 (22.9)

0.45 (11.5) 44 0.85 (21.6)

0.40 (10.0) 58 0.80 (20.3)

0.35 (9.0) 72 0.75 (19.1)

0.30 (7.5) 86 0.70 (17.8)

0.25 (6.5) 100 0.65 (16.5)

0.20 (5.0) 114 0.60 (15.2)

0.15 (4.0) 128 0.55 (14.0)

Undercarriage Code: 700, 730, 740, 770

811

PR450B, SF350, SF250B, TR225B — 6.125" (155.6 mm)

Paving Products/Drive Belts

.39" (10 mm)

.82" (20.8 mm)

13.Pav/Ag.(792-817) 7/14/03 7:35 AM Page 811
