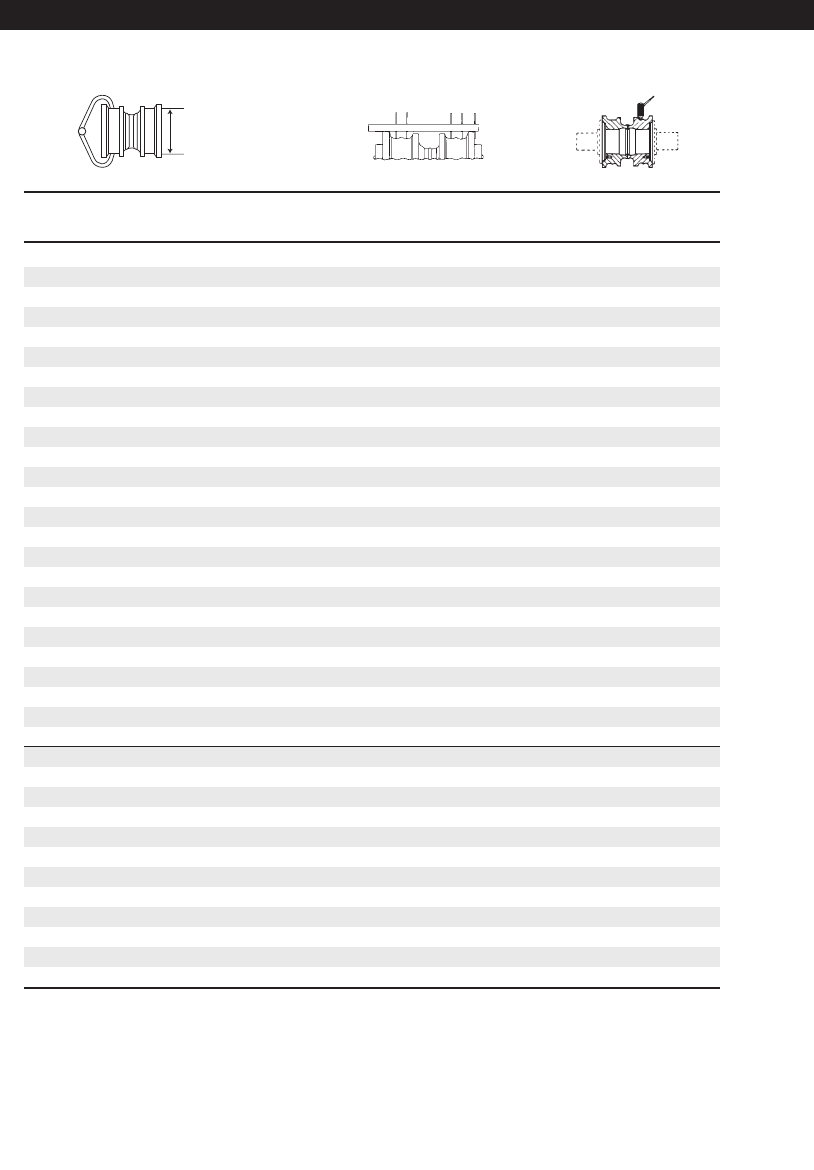

Track Rollers

Double Flange

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.55 (268.0) 0 0.86 (22.0) 2.65 (67.3)

10.45 (265.5) 5 0.91 (23.0) 2.60 (66.0)

10.35 (263.0) 10 0.96 (24.5) 2.55 (64.8)

10.25 (260.5) 15 1.01 (25.5) 2.50 (63.5)

10.15 (258.0) 20 1.06 (27.0) 2.45 (62.2)

10.05 (255.5) 25 1.11 (28.0) 2.40 (61.0)

9.95 (252.5) 30 1.16 (29.5) 2.35 (59.7)

9.85 (250.0) 35 1.21 (30.5) 2.30 (58.4)

9.75 (247.5) 40 1.26 (32.0) 2.25 (57.2)

9.65 (245.0) 45 1.31 (33.5) 2.20 (55.9)

9.55 (242.5) 50 1.36 (34.5) 2.15 (54.6)

9.45 (240.0) 55 1.41 (36.0) 2.10 (53.3)

9.35 (237.5) 60 1.46 (37.0) 2.05 (52.1)

9.25 (235.0) 65 1.51 (38.5) 2.00 (50.8)

9.15 (232.5) 70 1.56 (39.5) 1.95 (49.5)

9.05 (230.0) 73 1.61 (41.0) 1.90 (48.3)

8.95 (227.5) 76 1.66 (42.0) 1.85 (47.0)

8.85 (225.0) 79 1.71 (43.5) 1.80 (45.7)

8.75 (222.5) 82 1.76 (44.5) 1.75 (44.5)

8.65 (219.5) 85 1.81 (46.0) 1.70 (43.2)

8.55 (217.0) 88 1.86 (47.0) 1.65 (41.9)

8.45 (214.5) 91 1.91 (48.5) 1.60 (40.6)

8.35 (212.0) 94 1.96 (50.0) 1.55 (39.4)

8.25 (209.5) 97 2.01 (51.0) 1.50 (38.1)

8.15 (207.0) 100 2.06 (52.5) 1.45 (36.8)

8.05 (204.5) 103 2.11 (53.5) 1.40 (35.6)

7.95 (202.0) 106 2.16 (55.0) 1.35 (34.3)

7.85 (199.5) 109 2.21 (56.0) 1.30 (33.0)

7.75 (197.0) 112 2.26 (57.5) 1.25 (31.8)

7.65 (194.5) 115 2.31 (58.5) 1.20 (30.5)

7.55 (192.0) 118 2.36 (60.0) 1.15 (29.2)

7.45 (189.0) 121 2.41 (61.0) 1.10 (27.9)

7.35 (186.5) 124 2.46 (62.5) 1.05 (26.7)

7.25 (184.0) 127 2.51 (64.0) 1.00 (25.4)

7.15 (181.5) 130 2.56 (65.0) 0.95 (24.1)

7.05 (179.0) 133 2.61 (66.5) 0.90 (22.9)

6.95 (176.5) 136 2.66 (67.5) 0.85 (21.6)

Flange diameter is 12.28" (312 mm)

Undercarriage Code: 208, 209

226

D10N, D10R — 10.25" (260.4 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 226
