Caterpillar Custom Track Service Handbook Page 261

Service Handbook

Page of 826

/ 826

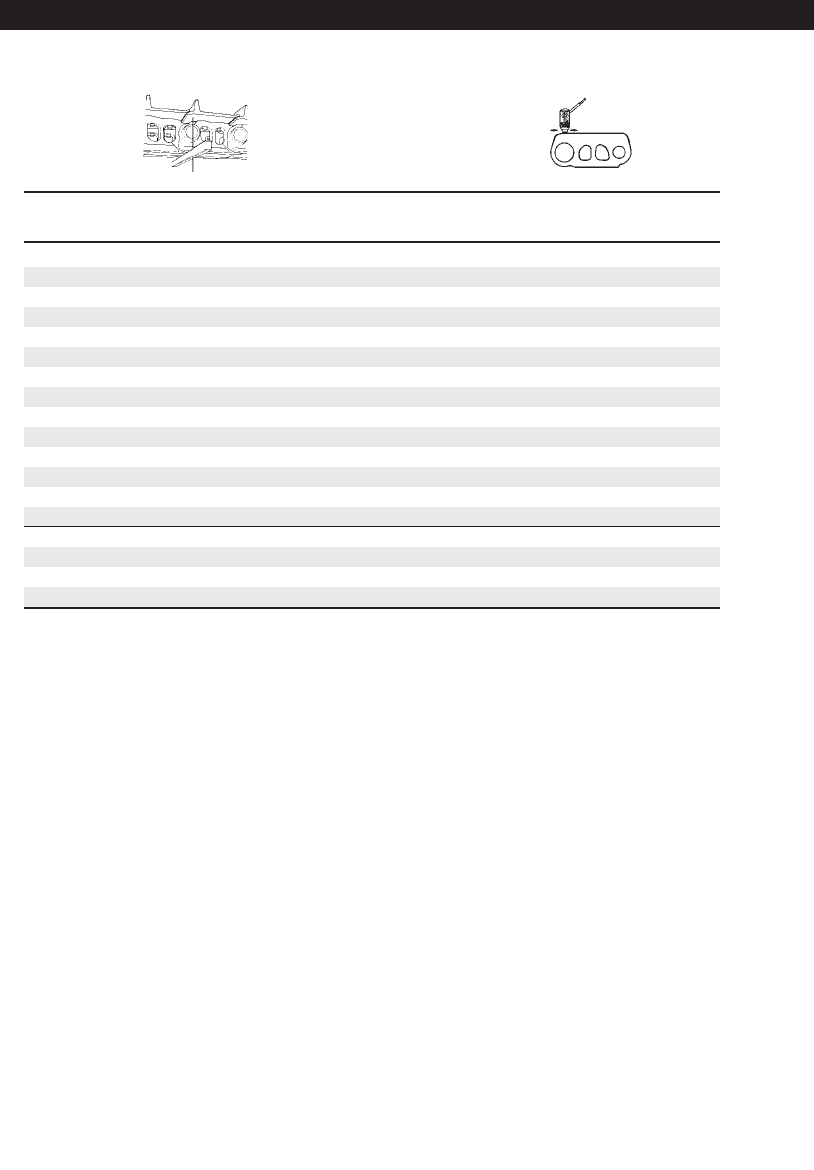

Track Links

6S3143 & 44

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

3.18 (81.0) 0 0.86 (21.8)

3.16 (80.5) 8 0.84 (21.3)

3.14 (80.0) 16 0.82 (20.8)

3.12 (79.0) 24 0.80 (20.3)

3.10 (78.5) 32 0.78 (19.8)

3.08 (78.0) 40 0.76 (19.3)

3.06 (77.5) 48 0.74 (18.8)

3.04 (77.0) 56 0.72 (18.3)

3.02 (76.5) 64 0.70 (17.8)

3.00 (76.0) 72 0.68 (17.3)

2.98 (75.5) 80 0.66 (16.8)

2.96 (75.0) 88 0.64 (16.3)

2.94 (74.5) 94 0.62 (15.7)

2.92 (74.0) 100 0.60 (15.2)

2.90 (73.5) 106 0.58 (14.7)

2.88 (73.0) 112 0.56 (14.2)

2.86 (72.5) 118 0.54 (13.7)

2.84 (72.0) 124 0.52 (13.2)

Undercarriage Code: 100

260

D3, 931, 933, 935, D4B, D4C — 6.125" (155.6 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 260
