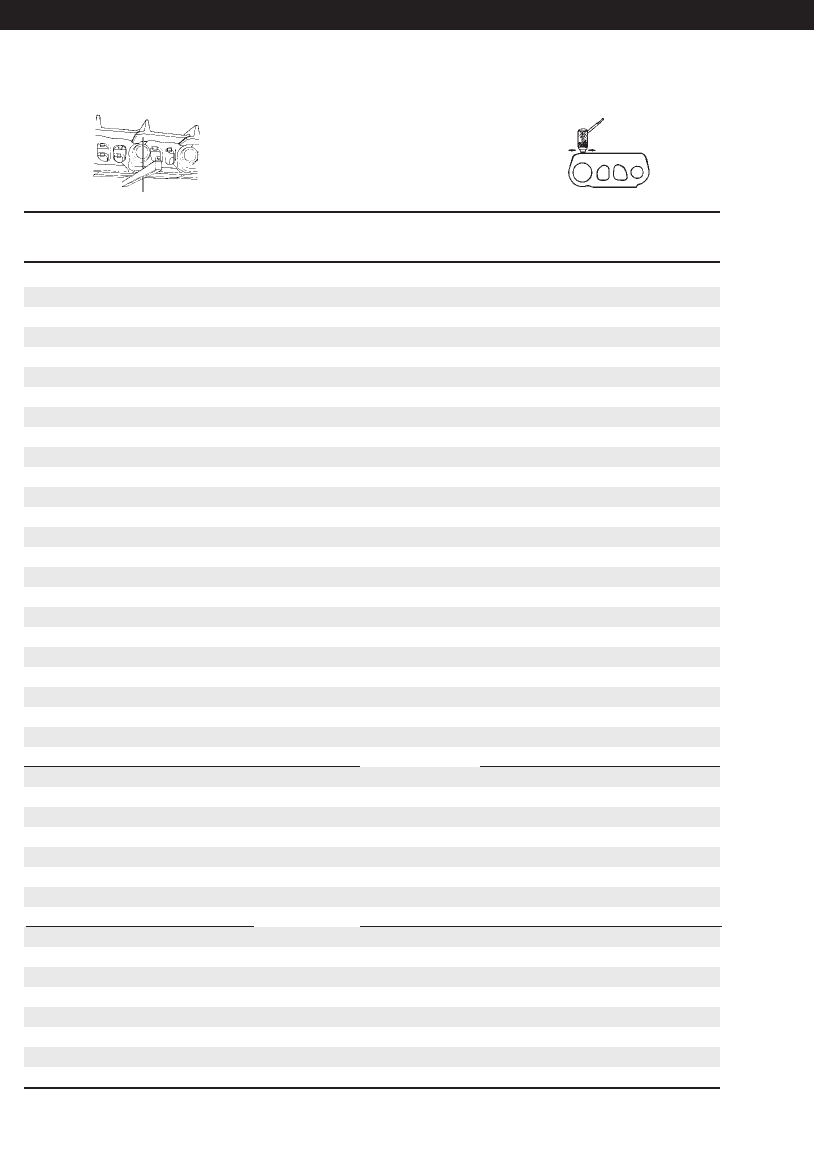

Track Links

9W5265 & 66

7T0715 & 16

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

7.12 (181.0) 0 0 2.36 (59.9)

7.10 (180.5) 5 4 2.34 (59.4)

7.08 (180.0) 10 8 2.32 (58.9)

7.06 (179.5) 15 12 2.30 (58.4)

7.04 (179.0) 20 16 2.28 (57.9)

7.02 (178.5) 25 20 2.26 (57.4)

7.00 (178.0) 30 24 2.24 (56.9)

6.98 (177.5) 35 28 2.22 (56.4)

6.96 (177.0) 40 32 2.20 (55.9)

6.94 (176.5) 45 36 2.18 (55.4)

6.92 (176.0) 50 40 2.16 (54.9)

6.90 (175.5) 55 44 2.14 (54.4)

6.88 (175.0) 60 48 2.12 (53.8)

6.86 (174.0) 64 52 2.10 (53.3)

6.84 (173.5) 68 55 2.08 (52.8)

6.82 (173.0) 71 58 2.06 (52.3)

6.80 (172.5) 74 60 2.04 (51.8)

6.78 (172.0) 77 63 2.02 (51.3)

6.76 (171.5) 81 65 2.00 (50.8)

6.74 (171.0) 84 68 1.98 (50.3)

6.72 (170.5) 87 70 1.96 (49.8)

6.70 (170.0) 90 73 1.94 (49.3)

6.68 (169.5) 94 75 1.92 (48.8)

6.66 (169.0) 97 78 1.90 (48.3)

6.64 (168.5) 100 80 1.88 (47.8)

6.62 (168.0) 103 83 1.86 (47.2)

6.60 (167.5) 107 85 1.84 (46.7)

6.58 (167.0) 110 88 1.82 (46.2)

6.56 (166.5) 113 90 1.80 (45.7)

6.54 (166.0) 116 93 1.78 (45.2)

6.52 (165.5) 120 95 1.76 (44.7)

6.50 (165.0) 98 1.74 (44.2)

6.48 (164.5) 100 1.72 (43.7)

6.46 (164.0) 103 1.70 (43.2)

6.44 (163.5) 105 1.68 (42.7)

6.42 (163.0) 108 1.66 (42.2)

6.40 (162.5) 110 1.64 (41.7)

6.38 (162.0) 113 1.62 (41.1)

6.36 (161.5) 115 1.60 (40.6)

6.34 (161.0) 118 1.58 (40.1)

6.32 (160.5) 120 1.56 (39.6)

Undercarriage Code: 208, 209

220

D10N, D10R — 10.25" (260.4 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 220
