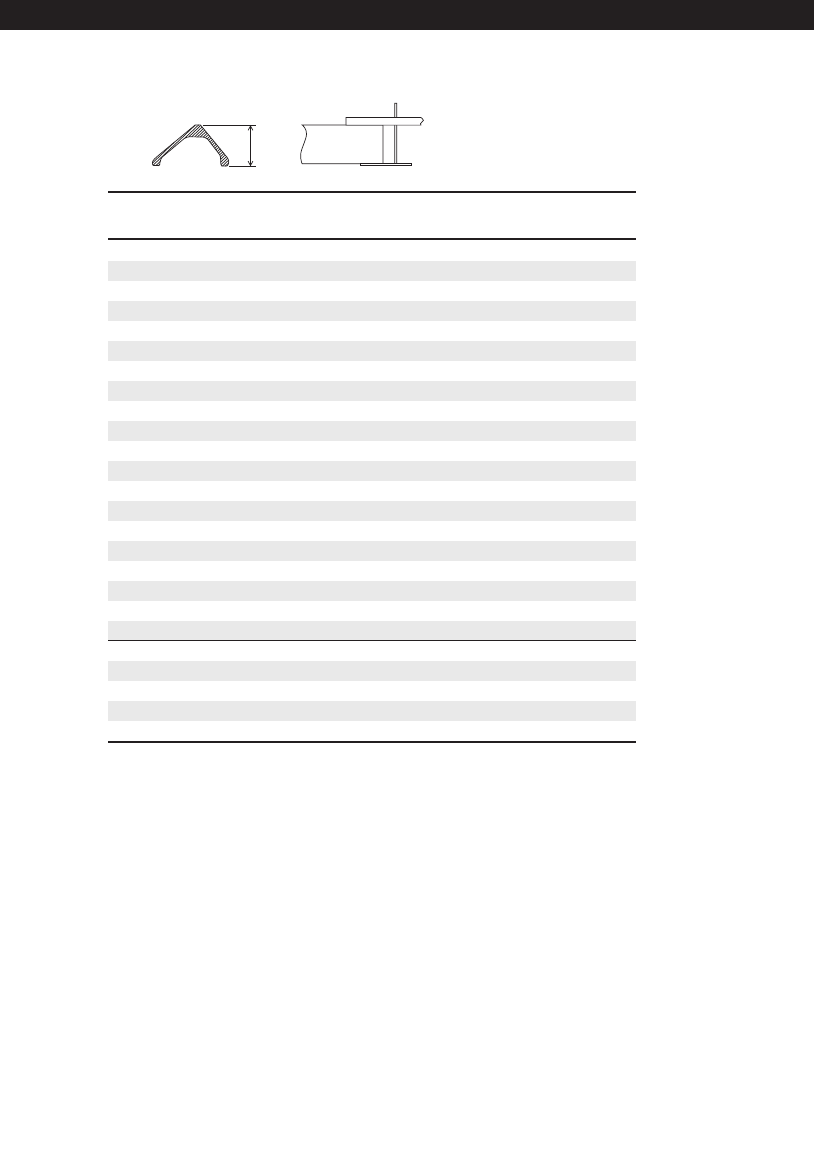

Track Shoes

Self Cleaning

Depth Gauge

Inches (mm) % Worn

3.18 (81.0) 0

3.16 (80.5) 6

3.14 (80.0) 12

3.12 (79.0) 18

3.10 (78.5) 24

3.08 (78.0) 30

3.06 (77.5) 36

3.04 (77.0) 42

3.02 (76.5) 48

3.00 (76.0) 54

2.98 (75.5) 60

2.96 (75.0) 66

2.94 (74.5) 72

2.92 (74.0) 76

2.90 (73.5) 80

2.88 (73.0) 84

2.86 (72.5) 88

2.84 (72.0) 92

2.82 (71.5) 96

2.80 (71.0) 100

2.78 (70.5) 104

2.76 (70.0) 108

2.74 (69.5) 112

2.72 (69.0) 116

2.70 (68.5) 120

Undercarriage Code:

110, 11002, 1101, 11012, 1108, 111, 1121,

1122, 120, 12002, 1201, 12012, 1208, 121,

124, 1248, 12482, 125, 1251, 128, 129, 1291

118

D4H, D5M, D5N, 561H, 561M, 561N — 6.75" (171.5 mm)

Elevated Sprocket Machines

02.Elev.(110-145) 7/11/03 3:43 PM Page 118
