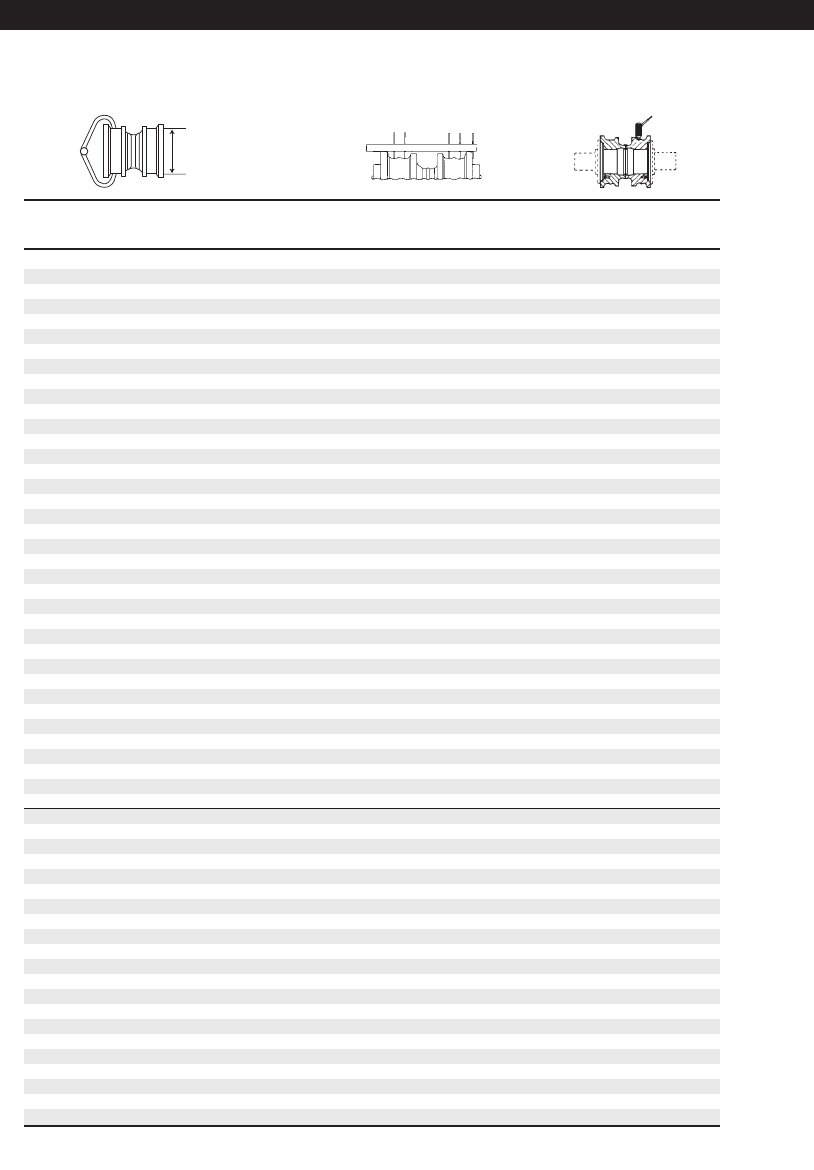

Track Rollers

Use with Sealed & Lubricated Track

8E2355 & 56 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.25 (209.5) 0 0.59 (15.0) 1.87 (47.5)

8.21 (208.5) 3 0.61 (15.5) 1.85 (47.0)

8.17 (207.5) 6 0.63 (16.0) 1.83 (46.5)

8.13 (206.5) 9 0.65 (16.5) 1.81 (46.0)

8.09 (205.5) 12 0.67 (17.0) 1.79 (45.5)

8.05 (204.5) 15 0.69 (17.5) 1.77 (45.0)

8.01 (203.5) 18 0.71 (18.0) 1.75 (44.5)

7.97 (202.5) 21 0.73 (18.5) 1.73 (43.9)

7.93 (201.5) 24 0.75 (19.0) 1.71 (43.4)

7.89 (200.5) 27 0.77 (19.5) 1.69 (42.9)

7.85 (199.5) 30 0.79 (20.0) 1.67 (42.4)

7.81 (198.5) 33 0.81 (20.5) 1.65 (41.9)

7.77 (197.5) 36 0.83 (21.0) 1.63 (41.4)

7.73 (196.5) 39 0.85 (21.5) 1.61 (40.9)

7.69 (195.5) 42 0.87 (22.0) 1.59 (40.4)

7.65 (194.5) 45 0.89 (22.5) 1.57 (39.9)

7.61 (193.5) 48 0.91 (23.0) 1.55 (39.4)

7.57 (192.5) 51 0.93 (23.5) 1.53 (38.9)

7.53 (191.5) 54 0.95 (24.0) 1.51 (38.4)

7.49 (190.0) 57 0.97 (24.5) 1.49 (37.8)

7.45 (189.0) 60 0.99 (25.0) 1.47 (37.3)

7.41 (188.0) 63 1.01 (25.5) 1.45 (36.8)

7.37 (187.0) 66 1.03 (26.0) 1.43 (36.3)

7.33 (186.0) 69 1.05 (26.5) 1.41 (35.8)

7.29 (185.0) 72 1.07 (27.0) 1.39 (35.3)

7.25 (184.0) 75 1.09 (27.5) 1.37 (34.8)

7.21 (183.0) 78 1.11 (28.0) 1.35 (34.3)

7.17 (182.0) 81 1.13 (28.5) 1.33 (33.8)

7.13 (181.0) 84 1.15 (29.0) 1.31 (33.3)

7.09 (180.0) 86 1.17 (29.5) 1.29 (32.8)

7.05 (179.0) 88 1.19 (30.0) 1.27 (32.3)

7.01 (178.0) 90 1.21 (30.5) 1.25 (31.8)

6.97 (177.0) 92 1.23 (31.0) 1.23 (31.2)

6.93 (176.0) 94 1.25 (32.0) 1.21 (30.7)

6.89 (175.0) 96 1.27 (32.5) 1.19 (30.2)

6.85 (174.0) 98 1.29 (33.0) 1.17 (29.7)

6.81 (173.0) 100 1.31 (33.5) 1.15 (29.2)

6.77 (172.0) 102 1.33 (34.0) 1.13 (28.7)

6.73 (171.0) 104 1.35 (34.5) 1.11 (28.2)

6.69 (170.0) 106 1.37 (35.0) 1.09 (27.7)

6.65 (169.0) 108 1.39 (35.5) 1.07 (27.2)

6.61 (168.0) 110 1.41 (36.0) 1.05 (26.7)

6.57 (167.0) 112 1.43 (36.5) 1.03 (26.2)

6.53 (166.0) 114 1.45 (37.0) 1.01 (25.7)

6.49 (165.0) 116 1.47 (37.5) 0.99 (25.1)

6.45 (164.0) 118 1.49 (38.0) 0.97 (24.6)

6.41 (163.0) 120 1.51 (38.5) 0.95 (24.1)

6.37 (162.0) 122 1.53 (39.0) 0.93 (23.6)

6.33 (161.0) 124 1.55 (39.5) 0.91 (23.1)

6.29 (160.0) 126 1.57 (40.0) 0.89 (22.6)

6.25 (159.0) 128 1.59 (40.5) 0.87 (22.1)

6.21 (157.5) 130 1.61 (41.0) 0.85 (21.6)

6.17 (156.5) 132 1.63 (41.5) 0.83 (21.1)

6.13 (155.5) 134 1.65 (42.0) 0.81 (20.6)

6.09 (154.5) 136 1.67 (42.5) 0.79 (20.1)

6.05 (153.5) 138 1.69 (43.0) 0.77 (19.6)

6.01 (152.5) 140 1.71 (43.5) 0.75 (19.1)

5.97 (151.5) 142 1.73 (44.0) 0.73 (18.5)

Flange diameter is 9.43" (240 mm)

Undercarriage Code: 150, 1578

164

D6H, D6R, 527 — 8.00" (203.2 mm)

Elevated Sprocket Machines

03.Elev.(146-197) 7/11/03 3:44 PM Page 164
