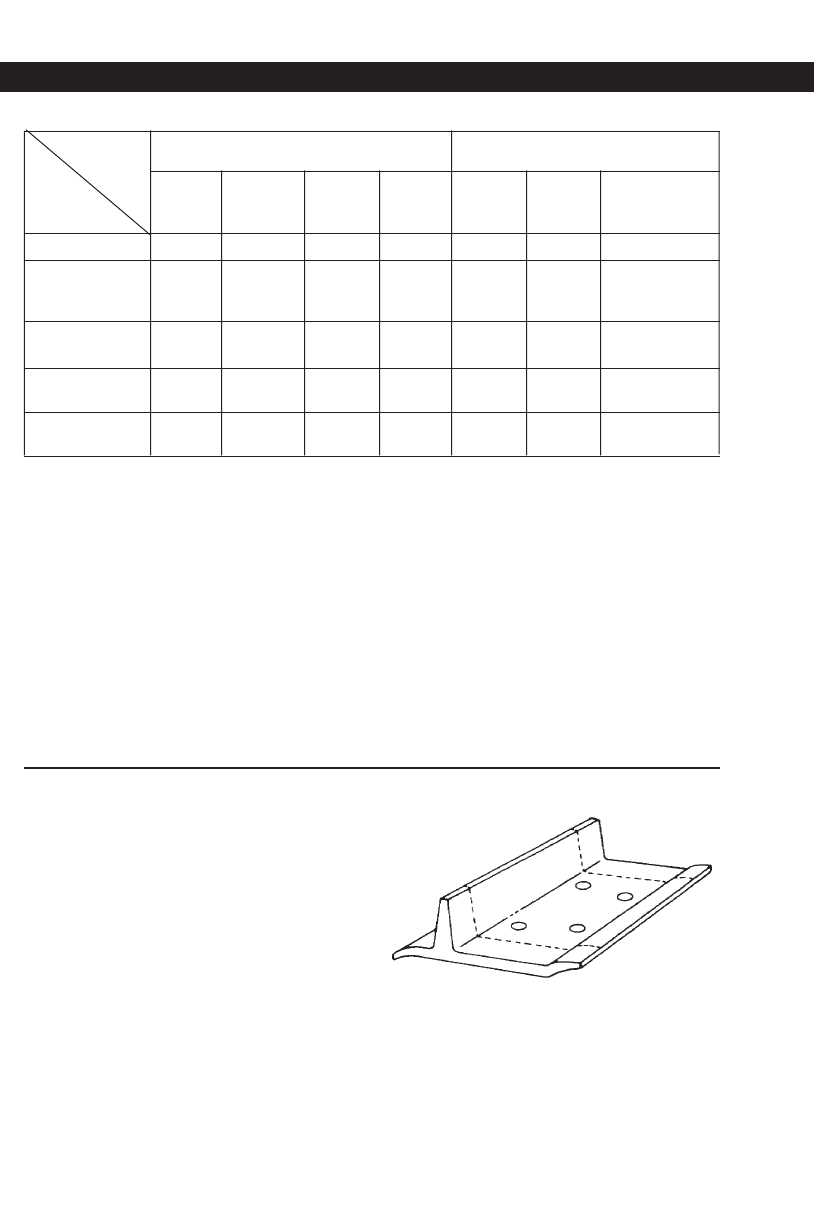

These Machine U/C System Wear & Structural

. . . Productivity Factors Life Factors

As Flotation Penetration Maneuver- Versatility Shoe Shoe Pin & Link &

these Traction ability Bushing Rollers

increase . . . W.L. S.L. W.L. & S.L Com W.L. & S.L.

Shoe Width ⇑⇒ ⇓ ⇒⇓⇓

(grouser & plate)

Shoe Section

⇒⇒⇒

⇑⇑

Thickness

Shoe Hardened

Wear material

⇒⇒ ⇒⇒⇑⇑⇒ ⇒

Number of

Grousers

⇒

N/A

⇑

⇒

Height of

Grousers

⇒

⇑⇓

⇒

⇑⇑

W.L. = Wear Life S.L. = Structural Life

How to use this chart:

1. First find machine productivity factor most important to the user.

2. Find what effect the various shoes selection variables may have.

3. Next, look straight across to find what degree of wear and structural life effects may be

expected.

4. Repeat these steps until all productivity and life factors have been considered.

5. Working backwards the chart will help determine wear and structural problems caused

by different shoes.

6. Refer to the Parts Sales Kit for a description of the various shoes available for each

model size.

⇒

SHOES

General Information

Modify Shoes

for Special Conditions

Caterpillar offers a wide range of shoe

types and sizes to meet most needs.

However, dealers or users may wish to

modify new or existing shoes to better

match or balance productivity and under-

carriage life considerations. Following is a

brief description of the various dealer/user

modifications possible. Refer to appropri-

ate service department publications for

exact cutting and welding procedures and

dimensions for various shoes.

Shortening or Offsetting

Shoes may be cut off at one or both ends

to reduce width on inner and/or outer

sides as required.
