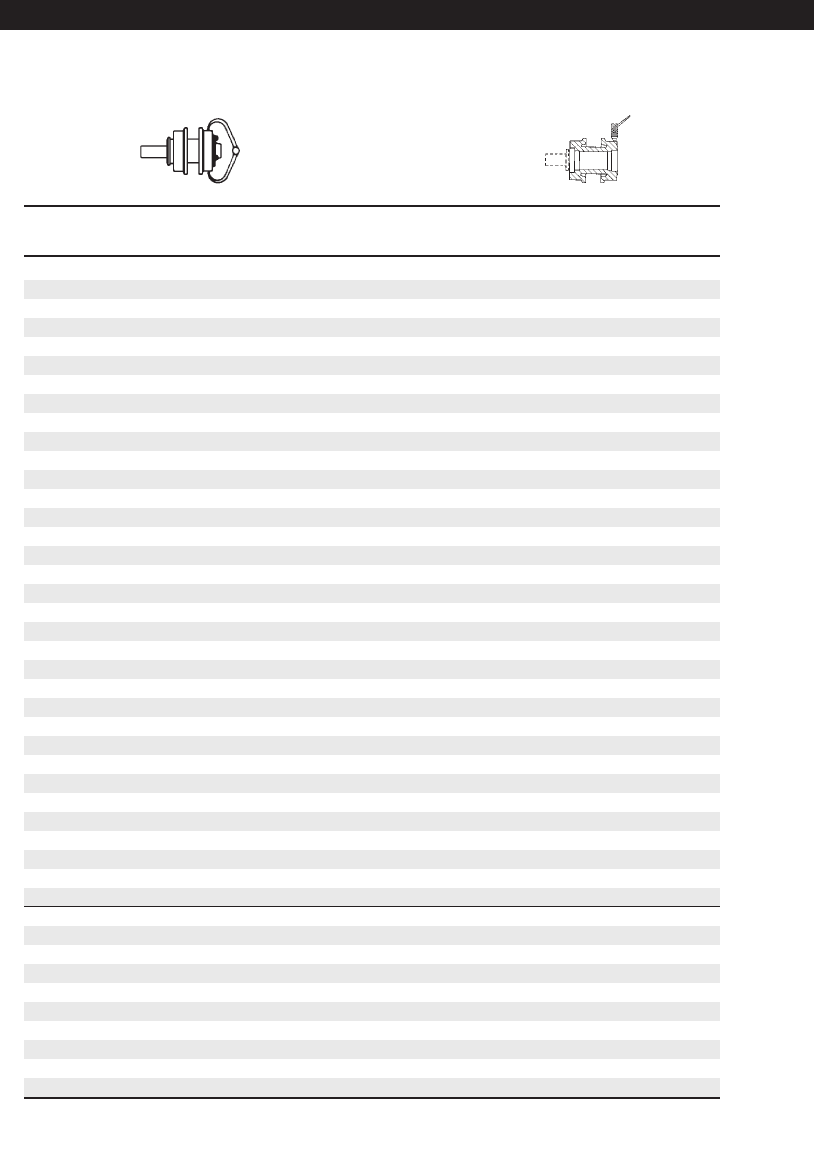

Carrier Rollers

Use with 8E and 7T Links

Not for use with 955

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

7.38 (187.5) 0 1.86 (47.2)

7.34 (186.5) 4 1.84 (46.7)

7.30 (185.5) 8 1.82 (46.2)

7.26 (184.5) 12 1.80 (45.7)

7.22 (183.5) 16 1.78 (45.2)

7.18 (182.5) 20 1.76 (44.7)

7.14 (181.5) 24 1.74 (44.2)

7.10 (180.5) 28 1.72 (43.7)

7.06 (179.5) 32 1.70 (43.2)

7.02 (178.5) 36 1.68 (42.7)

6.98 (177.5) 40 1.66 (42.2)

6.94 (176.5) 44 1.64 (41.7)

6.90 (175.5) 48 1.62 (41.1)

6.86 (174.0) 52 1.60 (40.6)

6.82 (173.0) 56 1.58 (40.1)

6.78 (172.0) 60 1.56 (39.6)

6.74 (171.0) 64 1.54 (39.1)

6.70 (170.0) 68 1.52 (38.6)

6.66 (169.0) 70 1.50 (38.1)

6.62 (168.0) 72 1.48 (37.6)

6.58 (167.0) 74 1.46 (37.1)

6.54 (166.0) 76 1.44 (36.6)

6.50 (165.0) 78 1.42 (36.1)

6.46 (164.0) 80 1.40 (35.6)

6.42 (163.0) 82 1.38 (35.1)

6.38 (162.0) 84 1.36 (34.5)

6.34 (161.0) 86 1.34 (34.0)

6.30 (160.0) 88 1.32 (33.5)

6.26 (159.0) 90 1.30 (33.0)

6.22 (158.0) 92 1.28 (32.5)

6.18 (157.0) 94 1.26 (32.0)

6.14 (156.0) 96 1.24 (31.5)

6.10 (155.0) 98 1.22 (31.0)

6.06 (154.0) 100 1.20 (30.5)

6.02 (153.0) 102 1.18 (30.0)

5.98 (152.0) 104 1.16 (29.5)

5.94 (151.0) 106 1.14 (29.0)

5.90 (150.0) 108 1.12 (28.4)

5.86 (149.0) 110 1.10 (27.9)

5.82 (148.0) 112 1.08 (27.4)

5.78 (147.0) 114 1.06 (26.9)

5.74 (146.0) 116 1.04 (26.4)

5.70 (145.0) 118 1.02 (25.9)

5.66 (144.0) 120 1.00 (25.4)

Undercarriage Code: 154, 1511

342

D6, 955 — 8.00" (203.2 mm)

Low Sprocket Machines

06.Low(326-347) 7/11/03 3:52 PM Page 342
