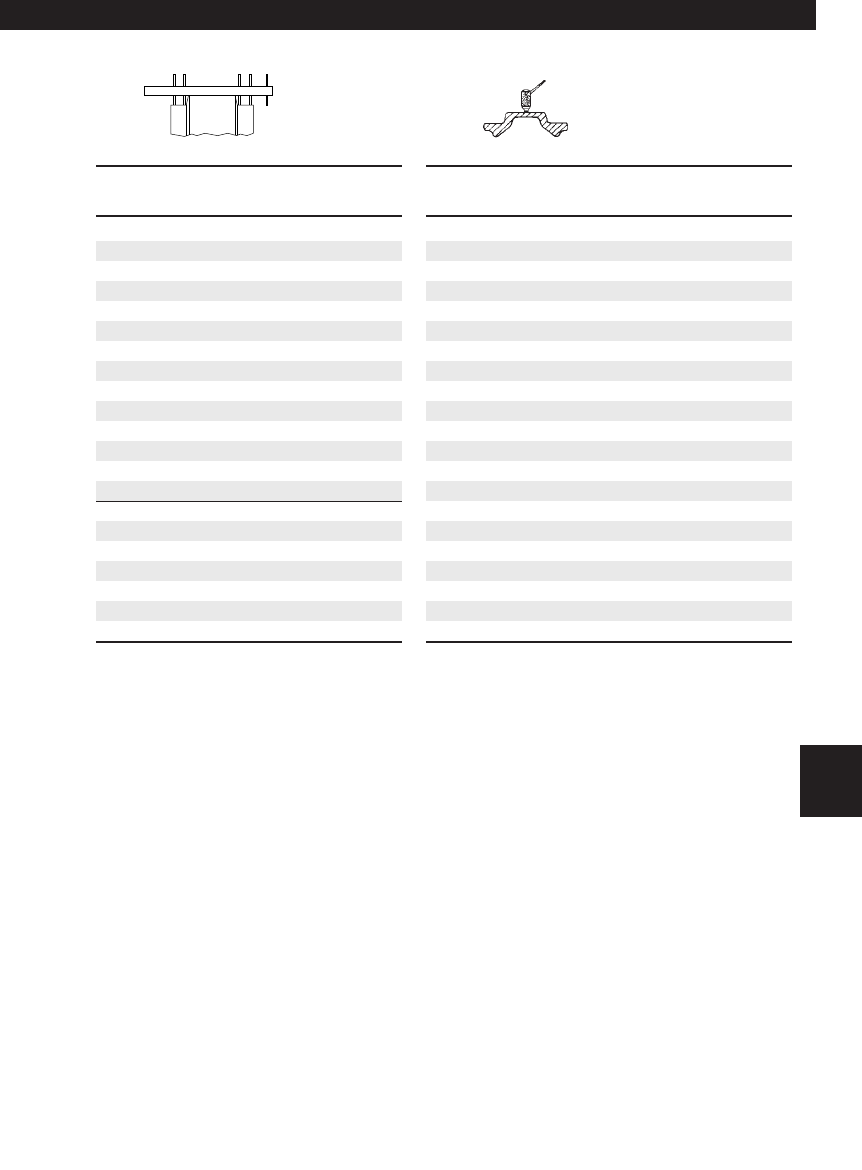

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.88 (22.5) 0 0.42 (10.7) 0.00 (0.0)

0.90 (23.0) 12 0.40 (10.2) 0.02 (0.5)

0.92 (23.5) 24 0.38 (9.7) 0.04 (1.0)

0.94 (24.0) 36 0.36 (9.1) 0.06 (1.5)

0.96 (24.5) 48 0.34 (8.6) 0.08 (2.0)

0.98 (25.0) 60 0.32 (8.1) 0.10 (2.5)

1.00 (25.5) 72 0.30 (7.6) 0.12 (3.0)

1.02 (26.0) 82 0.28 (7.1) 0.14 (3.5)

1.04 (26.5) 85 0.26 (6.6) 0.16 (4.0)

1.06 (27.0) 88 0.24 (6.1) 0.18 (4.5)

1.08 (27.5) 91 0.22 (5.6) 0.20 (5.0)

1.10 (28.0) 94 0.20 (5.1) 0.22 (5.5)

1.12 (28.5) 97 0.18 (4.6) 0.24 (6.0)

1.14 (29.0) 100 0.16 (4.1) 0.26 (6.5)

1.16 (29.5) 103 0.14 (3.6) 0.28 (7.0)

1.18 (30.0) 106 0.12 (3.0) 0.30 (7.5)

1.20 (30.5) 109 0.10 (2.5) 0.32 (8.0)

1.22 (31.0) 112 0.08 (2.0) 0.34 (8.5)

1.24 (31.5) 115 0.06 (1.5) 0.36 (9.0)

1.26 (32.0) 118 0.04 (1.0) 0.38 (9.5)

1.28 (32.5) 121 0.02 (0.5) 0.40 (10.0)

Flange width: 3.75" (95.5 mm) NOTE: Ultrasonic measurement is to determine

flange wear only.

Undercarriage Code: 480

689

235 — 8.00" (203.2 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 689
