Caterpillar Custom Track Service Handbook Page 693

Service Handbook

Page of 826

/ 826

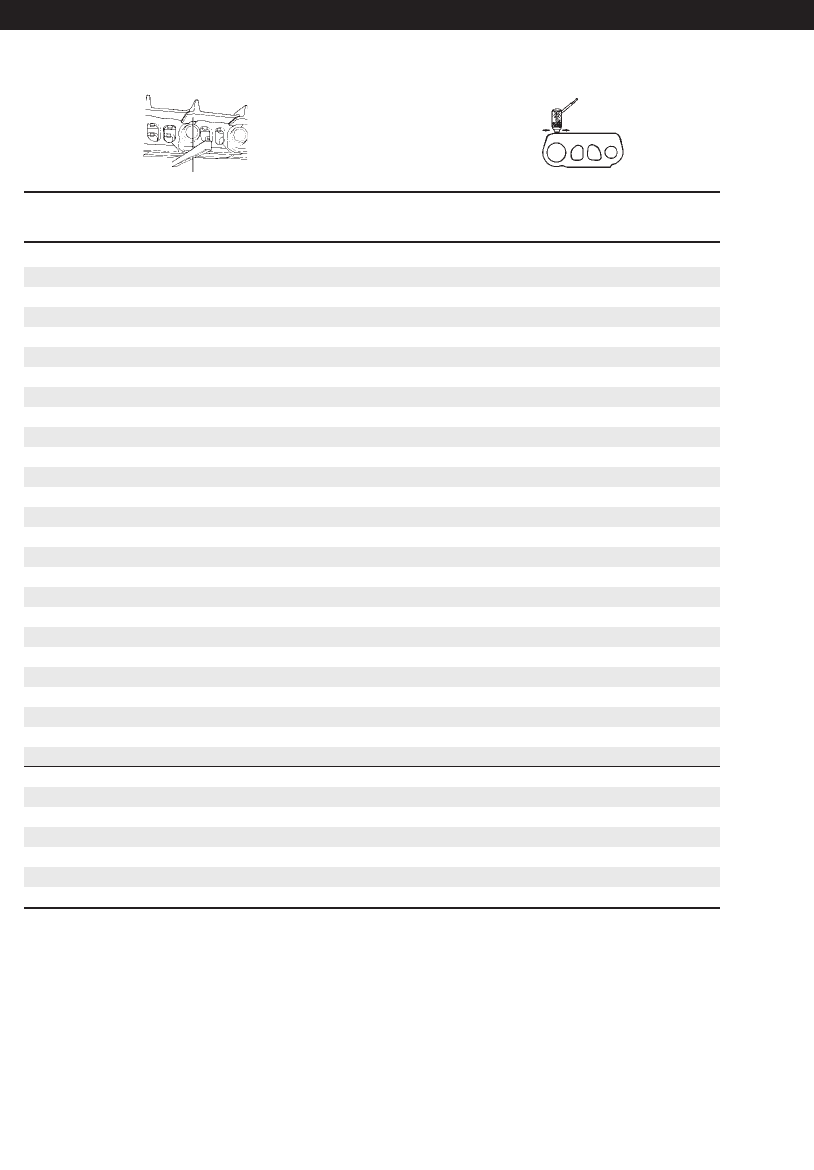

Track Links

9S1927 & 28

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

6.12 (155.5) 0 1.56 (39.6)

6.10 (155.0) 4 1.54 (39.1)

6.08 (154.5) 8 1.52 (38.6)

6.06 (154.0) 12 1.50 (38.1)

6.04 (153.5) 16 1.48 (37.6)

6.02 (153.0) 20 1.46 (37.1)

6.00 (152.5) 24 1.44 (36.6)

5.98 (152.0) 28 1.42 (36.1)

5.96 (151.5) 32 1.40 (35.6)

5.94 (151.0) 36 1.38 (35.1)

5.92 (150.5) 40 1.36 (34.5)

5.90 (150.0) 44 1.34 (34.0)

5.88 (149.5) 48 1.32 (33.5)

5.86 (149.0) 52 1.30 (33.0)

5.84 (148.5) 56 1.28 (32.5)

5.82 (148.0) 60 1.26 (32.0)

5.80 (147.5) 64 1.24 (31.5)

5.78 (147.0) 68 1.22 (31.0)

5.76 (146.5) 72 1.20 (30.5)

5.74 (146.0) 76 1.18 (30.0)

5.72 (145.5) 80 1.16 (29.5)

5.70 (145.0) 84 1.14 (29.0)

5.68 (144.5) 88 1.12 (28.4)

5.66 (144.0) 92 1.10 (27.9)

5.64 (143.5) 96 1.08 (27.4)

5.62 (142.5) 100 1.06 (26.9)

5.60 (142.0) 103 1.04 (26.4)

5.58 (141.5) 106 1.02 (25.9)

5.56 (141.0) 109 1.00 (25.4)

5.54 (140.5) 112 0.98 (24.9)

5.52 (140.0) 115 0.96 (24.4)

5.50 (139.5) 118 0.94 (23.9)

5.48 (139.0) 121 0.92 (23.4)

Undercarriage Code: 491, 492, 493

692

245 — 10.25" (260.4 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 692
