Caterpillar Custom Track Service Handbook Page 371

Service Handbook
Track Shoes
Super Extreme Service

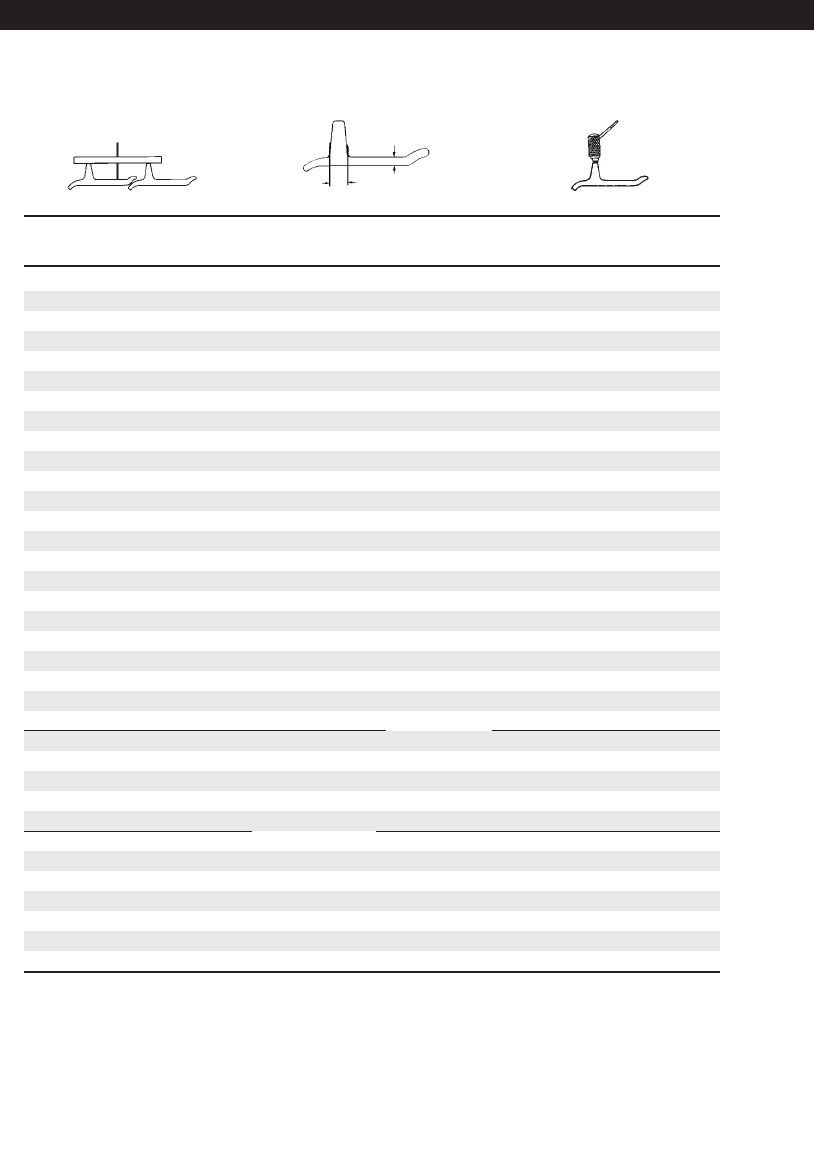

Depth Gauge High Impact Low Impact Ultrasonic
Inches (mm) % Worn % Worn Inches (mm)
3.70 (94.0) 0 0 4.50 (114.3)
3.60 (91.5) 5 4 4.40 (111.8)
3.50 (89.0) 10 8 4.30 (109.2)
3.40 (86.5) 15 12 4.20 (106.7)
3.30 (84.0) 20 16 4.10 (104.1)
3.20 (81.5) 25 20 4.00 (101.6)
3.10 (78.5) 30 24 3.90 (99.1)
3.00 (76.0) 35 28 3.80 (96.5)
2.90 (73.5) 40 32 3.70 (94.0)
2.80 (71.0) 45 36 3.60 (91.4)
2.70 (68.5) 50 40 3.50 (88.9)
2.60 (66.0) 55 44 3.40 (86.4)
2.50 (63.5) 60 48 3.30 (83.8)
2.40 (61.0) 64 52 3.20 (81.3)
2.30 (58.5) 68 56 3.10 (78.7)
2.20 (56.0) 72 60 3.00 (76.2)
2.10 (53.5) 76 64 2.90 (73.7)
2.00 (51.0) 80 68 2.80 (71.1)
1.90 (48.5) 84 72 2.70 (68.6)
1.80 (45.5) 88 76 2.60 (66.0)
1.70 (43.0) 92 79 2.50 (63.5)
1.60 (40.5) 96 82 2.40 (61.0)
1.50 (38.0) 100 85 2.30 (58.4)
1.40 (35.5) 104 88 2.20 (55.9)
1.30 (33.0) 108 91 2.10 (53.3)
1.20 (30.5) 112 94 2.00 (50.8)
1.10 (28.0) 116 97 1.90 (48.3)
1.00 (25.5) 120 100 1.80 (45.7)
0.90 (23.0) 103 1.70 (43.2)
0.80 (20.5) 106 1.60 (40.6)
0.70 (18.0) 109 1.50 (38.1)
0.60 (15.0) 112 1.40 (35.6)
0.50 (12.5) 115 1.30 (33.0)
0.40 (10.0) 118 1.20 (30.5)
0.30 (7.5) 121 1.10 (27.9)
Undercarriage Code: 175, 390
370
D8, 983 — 9.00" (228.6 mm)
Low Sprocket Machines
.83" (21 mm)
1.73" (44 mm)
07.Low(348-387) 7/14/03 7:30 AM Page 370
