Caterpillar Custom Track Service Handbook Page 710

Service Handbook

Page of 826

/ 826

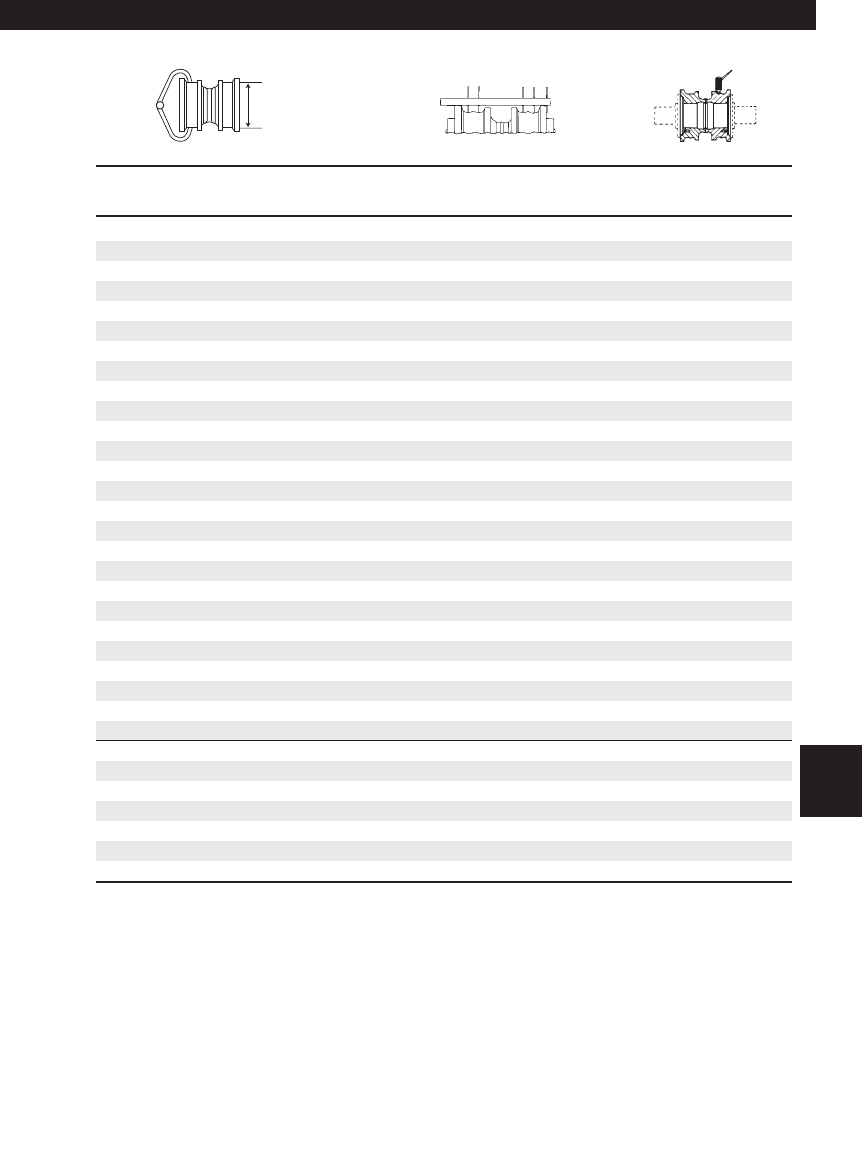

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

9.56 (243.0) 0 0.87 (22.0) 2.40 (61.0)

9.52 (242.0) 5 0.89 (22.5) 2.38 (60.5)

9.48 (241.0) 10 0.91 (23.0) 2.36 (59.9)

9.44 (240.0) 15 0.93 (23.5) 2.34 (59.4)

9.40 (239.0) 20 0.95 (24.0) 2.32 (58.9)

9.36 (237.5) 25 0.97 (24.5) 2.30 (58.4)

9.32 (236.5) 30 0.99 (25.0) 2.28 (57.9)

9.28 (235.5) 35 1.01 (25.5) 2.26 (57.4)

9.24 (234.5) 40 1.03 (26.0) 2.24 (56.9)

9.20 (233.5) 45 1.05 (26.5) 2.22 (56.4)

9.16 (232.5) 50 1.07 (27.0) 2.20 (55.9)

9.12 (231.5) 55 1.09 (27.5) 2.18 (55.4)

9.08 (230.5) 60 1.11 (28.0) 2.16 (54.9)

9.04 (229.5) 64 1.13 (28.5) 2.14 (54.4)

9.00 (228.5) 67 1.15 (29.0) 2.12 (53.8)

8.96 (227.5) 70 1.17 (29.5) 2.10 (53.3)

8.92 (226.5) 73 1.19 (30.0) 2.08 (52.8)

8.88 (225.5) 76 1.21 (30.5) 2.06 (52.3)

8.84 (224.5) 79 1.23 (31.0) 2.04 (51.8)

8.80 (223.5) 82 1.25 (32.0) 2.02 (51.3)

8.76 (222.5) 85 1.27 (32.5) 2.00 (50.8)

8.72 (221.5) 88 1.29 (33.0) 1.98 (50.3)

8.68 (220.5) 91 1.31 (33.5) 1.96 (49.8)

8.64 (219.5) 94 1.33 (34.0) 1.94 (49.3)

8.60 (218.5) 97 1.35 (34.5) 1.92 (48.8)

8.56 (217.5) 100 1.37 (35.0) 1.90 (48.3)

8.52 (216.5) 103 1.39 (35.5) 1.88 (47.8)

8.48 (215.5) 106 1.41 (36.0) 1.86 (47.2)

8.44 (214.5) 109 1.43 (36.5) 1.84 (46.7)

8.40 (213.5) 112 1.45 (37.0) 1.82 (46.2)

8.36 (212.5) 115 1.47 (37.5) 1.80 (45.7)

8.32 (211.5) 118 1.49 (38.0) 1.78 (45.2)

8.28 (210.5) 121 1.51 (38.5) 1.76 (44.7)

Flange diameter is 11.31" (287 mm)

Undercarriage Code: 490

709

245 — 9.00" (228.6 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 709
