Caterpillar Custom Track Service Handbook Page 692

Service Handbook

Page of 826

/ 826

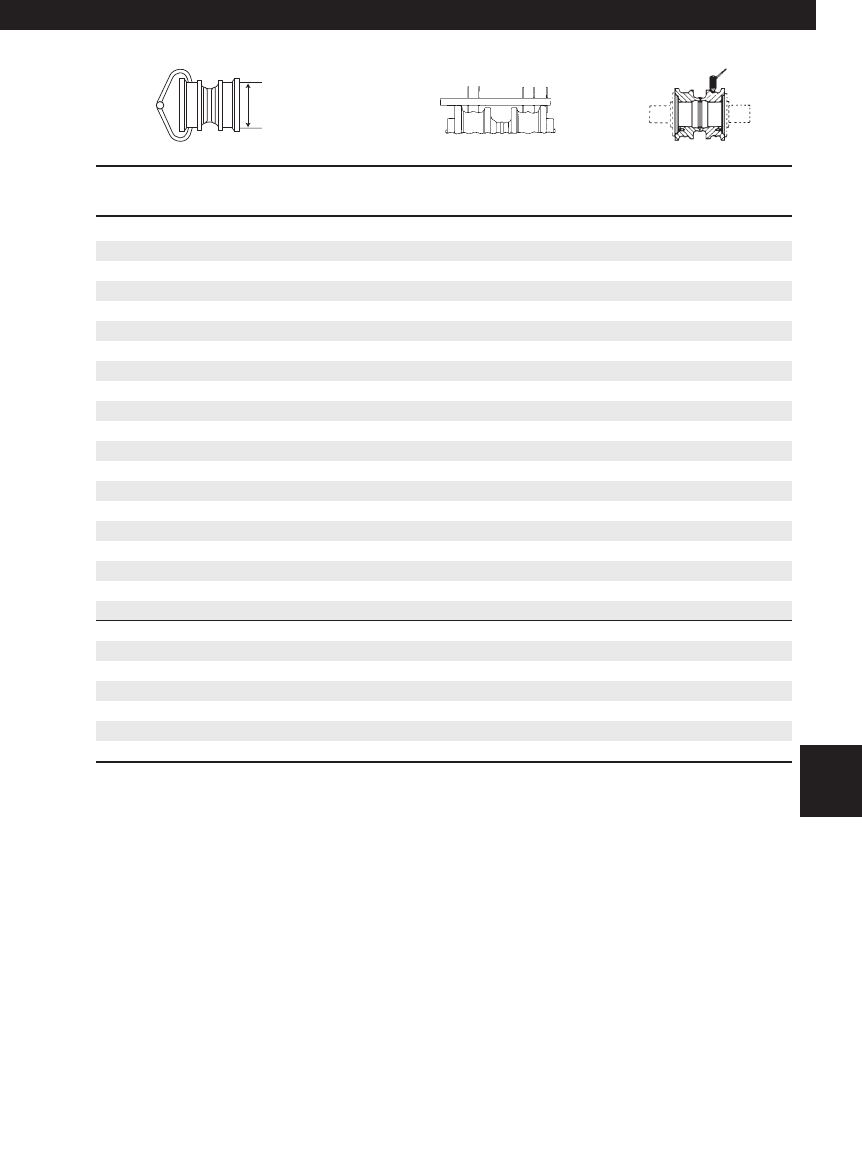

Track Rollers

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.25 (209.5) 0 0.74 (19.0) 1.88 (47.8)

8.21 (208.5) 6 0.76 (19.5) 1.86 (47.2)

8.17 (207.5) 12 0.78 (20.0) 1.84 (46.7)

8.13 (206.5) 18 0.80 (20.5) 1.82 (46.2)

8.09 (205.5) 24 0.82 (21.0) 1.80 (45.7)

8.05 (204.5) 30 0.84 (21.5) 1.78 (45.2)

8.01 (203.5) 36 0.86 (22.0) 1.76 (44.7)

7.97 (202.5) 42 0.88 (22.5) 1.74 (44.2)

7.93 (201.5) 48 0.90 (23.0) 1.72 (43.7)

7.89 (200.5) 54 0.92 (23.5) 1.70 (43.2)

7.85 (199.5) 60 0.94 (24.0) 1.68 (42.7)

7.81 (198.5) 66 0.96 (24.5) 1.66 (42.2)

7.77 (197.5) 72 0.98 (25.0) 1.64 (41.7)

7.73 (196.5) 78 1.00 (25.5) 1.62 (41.1)

7.69 (195.5) 84 1.02 (26.0) 1.60 (40.6)

7.65 (194.5) 88 1.04 (26.5) 1.58 (40.1)

7.61 (193.5) 91 1.06 (27.0) 1.56 (39.6)

7.57 (192.5) 94 1.08 (27.5) 1.54 (39.1)

7.53 (191.5) 97 1.10 (28.0) 1.52 (38.6)

7.49 (190.0) 100 1.12 (28.5) 1.50 (38.1)

7.45 (189.0) 103 1.14 (29.0) 1.48 (37.6)

7.41 (188.0) 106 1.16 (29.5) 1.46 (37.1)

7.37 (187.0) 109 1.18 (30.0) 1.44 (36.6)

7.33 (186.0) 112 1.20 (30.5) 1.42 (36.1)

7.29 (185.0) 115 1.22 (31.0) 1.40 (35.6)

7.25 (184.0) 118 1.24 (31.5) 1.38 (35.1)

7.21 (183.0) 121 1.26 (32.0) 1.36 (34.5)

Flange diameter is 9.72" (247 mm)

Undercarriage Code: 480

691

235 — 8.00" (203.2 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 691
