Caterpillar Custom Track Service Handbook Page 224

Service Handbook

Page of 826

/ 826

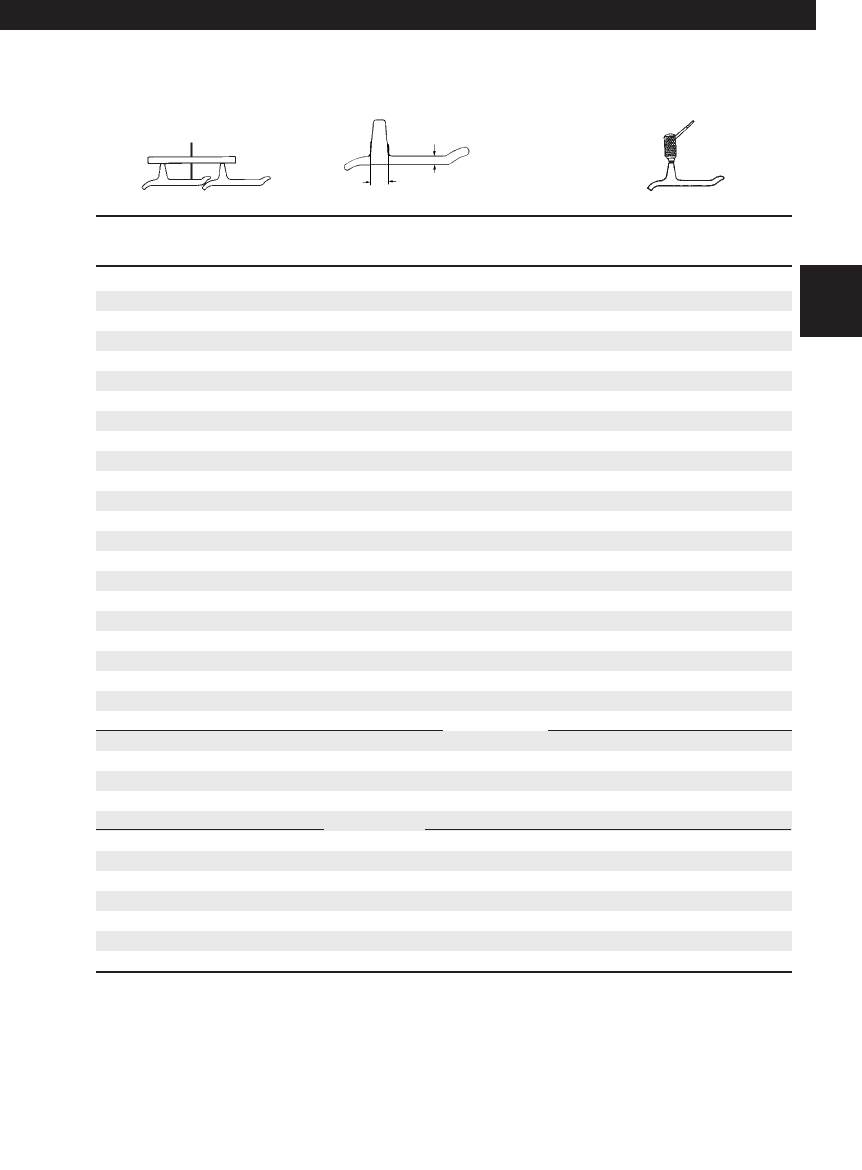

Track Shoes

Extreme Service

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

3.70 (94.0) 0 0 4.50 (114.3)

3.60 (91.5) 5 4 4.40 (111.8)

3.50 (89.0) 10 8 4.30 (109.2)

3.40 (86.5) 15 12 4.20 (106.7)

3.30 (84.0) 20 16 4.10 (104.1)

3.20 (81.5) 25 20 4.00 (101.6)

3.10 (78.5) 30 24 3.90 (99.1)

3.00 (76.0) 35 28 3.80 (96.5)

2.90 (73.5) 40 32 3.70 (94.0)

2.80 (71.0) 45 36 3.60 (91.4)

2.70 (68.5) 50 40 3.50 (88.9)

2.60 (66.0) 55 44 3.40 (86.4)

2.50 (63.5) 60 48 3.30 (83.8)

2.40 (61.0) 64 52 3.20 (81.3)

2.30 (58.5) 68 56 3.10 (78.7)

2.20 (56.0) 72 60 3.00 (76.2)

2.10 (53.5) 76 64 2.90 (73.7)

2.00 (51.0) 80 68 2.80 (71.1)

1.90 (48.5) 84 72 2.70 (68.6)

1.80 (45.5) 88 76 2.60 (66.0)

1.70 (43.0) 92 79 2.50 (63.5)

1.60 (40.5) 96 82 2.40 (61.0)

1.50 (38.0) 100 85 2.30 (58.4)

1.40 (35.5) 104 88 2.20 (55.9)

1.30 (33.0) 108 91 2.10 (53.3)

1.20 (30.5) 112 94 2.00 (50.8)

1.10 (28.0) 116 97 1.90 (48.3)

1.00 (25.5) 120 100 1.80 (45.7)

0.90 (23.0) 103 1.70 (43.2)

0.80 (20.5) 106 1.60 (40.6)

0.70 (18.0) 109 1.50 (38.1)

0.60 (15.0) 112 1.40 (35.6)

0.50 (12.5) 115 1.30 (33.0)

0.40 (10.0) 118 1.20 (30.5)

0.30 (7.5) 121 1.10 (27.9)

Undercarriage Code: 208, 209

223

D10N, D10R — 10.25" (260.4 mm)

Elevated Sprocket Machines

.81" (20.5 mm)

1.73" (44 mm)

04.Elev.(198-245) 7/11/03 3:45 PM Page 223
