Caterpillar Custom Track Service Handbook Page 563

Service Handbook

Page of 826

/ 826

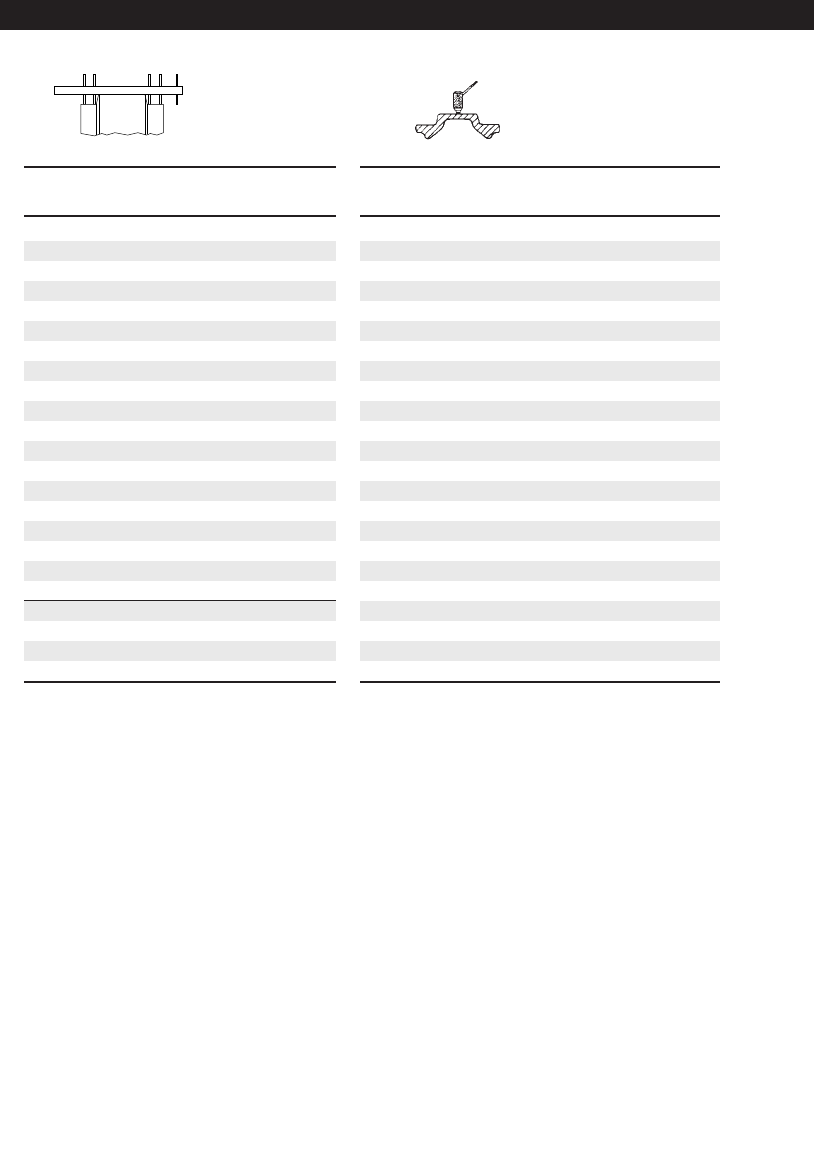

Idlers

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.78 (20.0) 0 0.48 (12.2) 0.00 (0.0)

0.80 (20.5) 7 0.46 (11.7) 0.02 (0.5)

0.82 (21.0) 14 0.44 (11.2) 0.04 (1.0)

0.84 (21.5) 21 0.42 (10.7) 0.06 (1.5)

0.86 (22.0) 28 0.40 (10.2) 0.08 (2.0)

0.88 (22.5) 35 0.38 (9.7) 0.10 (2.5)

0.90 (23.0) 40 0.36 (9.1) 0.12 (3.0)

0.92 (23.5) 45 0.34 (8.6) 0.14 (3.5)

0.94 (24.0) 50 0.32 (8.1) 0.16 (4.0)

0.96 (24.5) 55 0.30 (7.6) 0.18 (4.5)

0.98 (25.0) 60 0.28 (7.1) 0.20 (5.0)

1.00 (25.5) 65 0.26 (6.6) 0.22 (5.5)

1.02 (26.0) 70 0.24 (6.1) 0.24 (6.0)

1.04 (26.5) 75 0.22 (5.6) 0.26 (6.5)

1.06 (27.0) 80 0.20 (5.1) 0.28 (7.0)

1.08 (27.5) 85 0.18 (4.6) 0.30 (7.5)

1.10 (28.0) 90 0.16 (4.1) 0.32 (8.0)

1.12 (28.5) 95 0.14 (3.6) 0.34 (8.5)

1.14 (29.0) 100 0.12 (3.0) 0.36 (9.0)

1.16 (29.5) 105 0.10 (2.5) 0.38 (9.5)

1.18 (30.0) 110 0.08 (2.0) 0.40 (10.0)

1.20 (30.5) 115 0.06 (1.5) 0.42 (10.5)

1.22 (31.0) 120 0.04 (1.0) 0.44 (11.0)

Undercarriage Code: 610, 6101, 620, 6201

562

330 FM, 345 — 8.50" (215.9 mm)

Excavators

Flange width: 4.02" (102 mm) NOTE: Ultrasonic measurement is to determine flange

wear only. Use ultrasonic only on fabricated idlers.

10.Exc.(488-607) 7/14/03 7:32 AM Page 562
