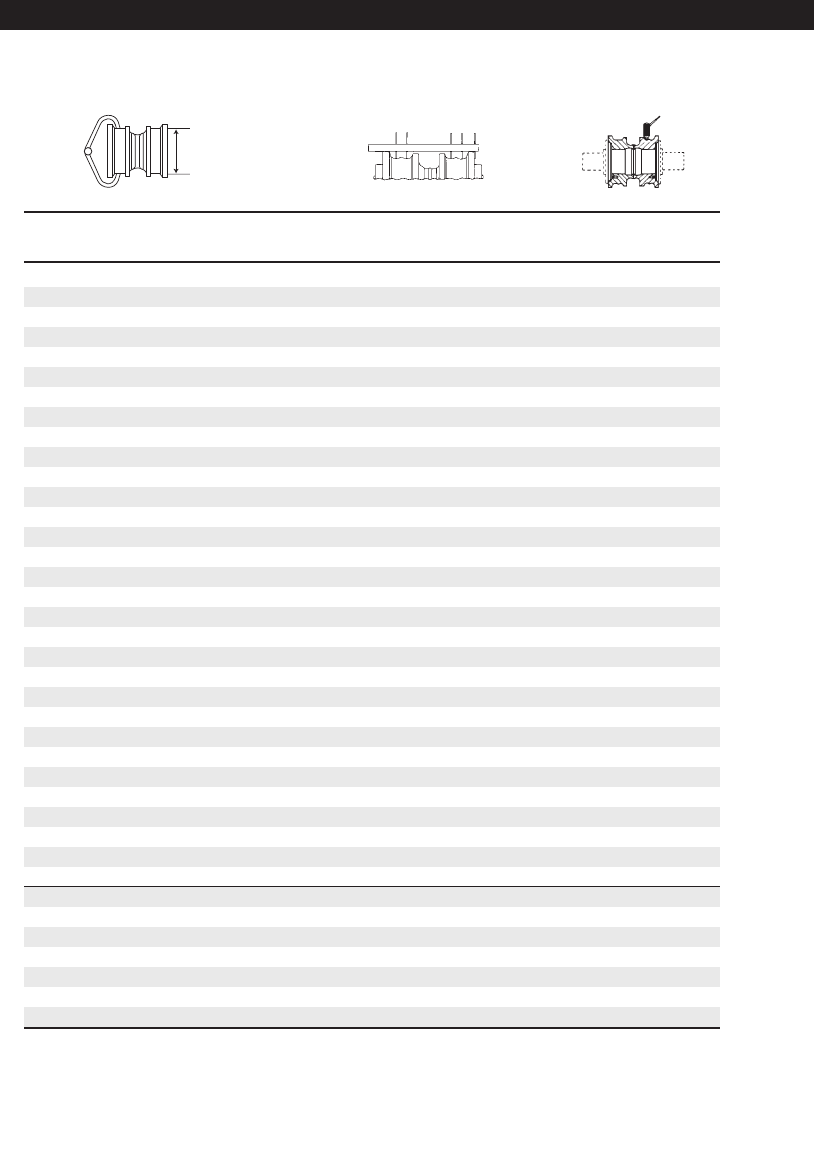

Track Rollers with End Collars

Use with Rotating Bushing Track

108-0947 & 48 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

6.89 (175.0) 0 0.47 (12.0) 1.44 (36.6)

6.85 (174.0) 4 0.49 (12.5) 1.42 (36.1)

6.81 (173.0) 8 0.51 (13.0) 1.40 (35.6)

6.77 (172.0) 12 0.53 (13.5) 1.38 (35.1)

6.73 (171.0) 16 0.55 (14.0) 1.36 (34.5)

6.69 (170.0) 20 0.57 (14.5) 1.34 (34.0)

6.65 (169.0) 24 0.59 (15.0) 1.32 (33.5)

6.61 (168.0) 28 0.61 (15.5) 1.30 (33.0)

6.57 (167.0) 32 0.63 (16.0) 1.28 (32.5)

6.53 (166.0) 36 0.65 (16.5) 1.26 (32.0)

6.49 (165.0) 40 0.67 (17.0) 1.24 (31.5)

6.45 (164.0) 43 0.69 (17.5) 1.22 (31.0)

6.41 (163.0) 46 0.71 (18.0) 1.20 (30.5)

6.37 (162.0) 49 0.73 (18.5) 1.18 (30.0)

6.33 (161.0) 52 0.75 (19.0) 1.16 (29.5)

6.29 (160.0) 55 0.77 (19.5) 1.14 (29.0)

6.25 (159.0) 58 0.79 (20.0) 1.12 (28.4)

6.21 (157.5) 61 0.81 (20.5) 1.10 (27.9)

6.17 (156.5) 64 0.83 (21.0) 1.08 (27.4)

6.13 (155.5) 67 0.85 (21.5) 1.06 (26.9)

6.09 (154.5) 70 0.87 (22.0) 1.04 (26.4)

6.05 (153.5) 73 0.89 (22.5) 1.02 (25.9)

6.01 (152.5) 76 0.91 (23.0) 1.00 (25.4)

5.97 (151.5) 79 0.93 (23.5) 0.98 (24.9)

5.93 (150.5) 82 0.95 (24.0) 0.96 (24.4)

5.89 (149.5) 85 0.97 (24.5) 0.94 (23.9)

5.85 (148.5) 88 0.99 (25.0) 0.92 (23.4)

5.81 (147.5) 91 1.01 (25.5) 0.90 (22.9)

5.77 (146.5) 94 1.03 (26.0) 0.88 (22.4)

5.73 (145.5) 97 1.05 (26.5) 0.86 (21.8)

5.69 (144.5) 100 1.07 (27.0) 0.84 (21.3)

5.65 (143.5) 103 1.09 (27.5) 0.82 (20.8)

5.61 (142.5) 106 1.11 (28.0) 0.80 (20.3)

5.57 (141.5) 109 1.13 (28.5) 0.78 (19.8)

5.53 (140.5) 112 1.15 (29.0) 0.76 (19.3)

5.49 (139.5) 115 1.17 (29.5) 0.74 (18.8)

5.45 (138.5) 118 1.19 (30.0) 0.72 (18.3)

5.41 (137.5) 121 1.21 (30.5) 0.70 (17.8)

Flange diameter is 7.83" (199 mm)

Undercarriage Code: 1351, 1352, 1354, 1355, 3072, 3073

306

D5G, D5C, 939 — 6.75" (171.5 mm)

Low Sprocket Machines
