must be tight before measuring. Measure

from the side of one pin to the same side

of the fifth pin away (which includes 4 sec-

tions). See details on measurement proce-

dure on page 48.

Shoes

See pages 51 through 55 for detailed shoe

information.

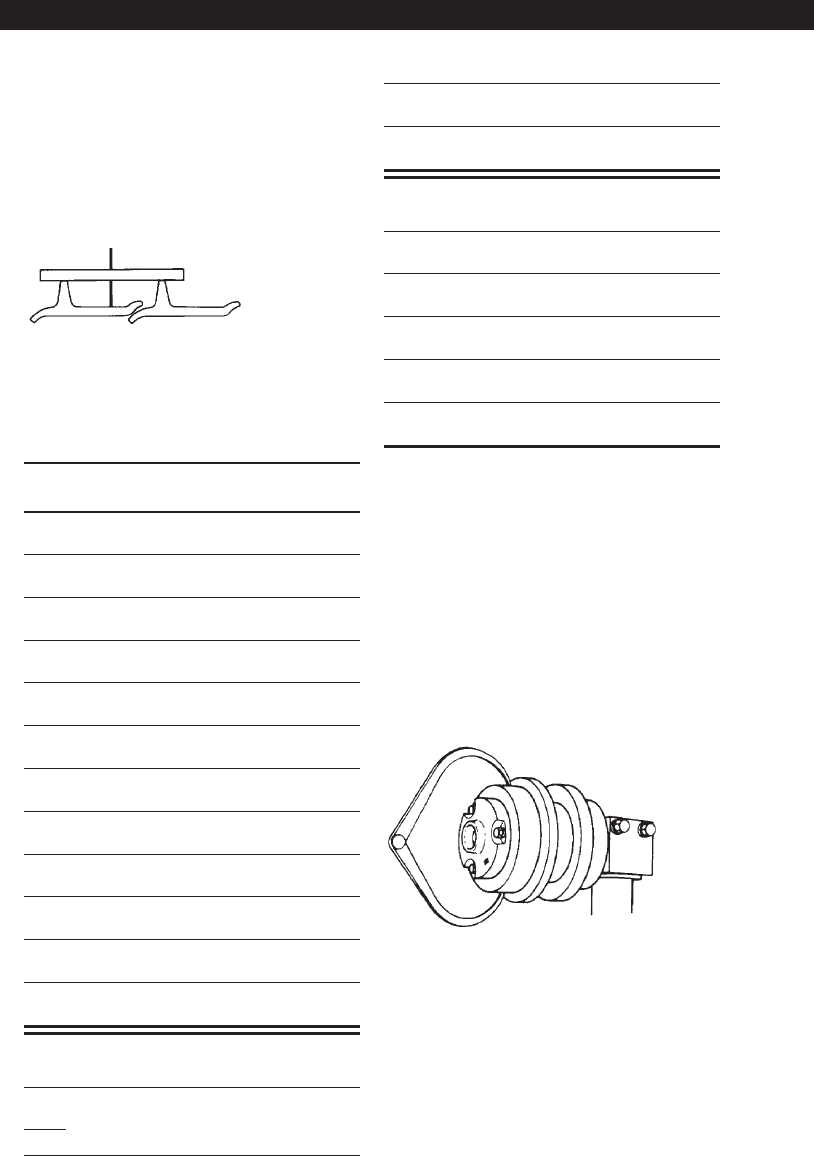

Measurement — Use the depth gauge or

the Ultrasonic Wear Indicator to measure

shoes.

Bolt Torques — Use the torque-turn tight-

ening method on page 55.

Bolt

Model Size Torque Turn*

307, 308 1/2'' 165 ± 15 ft. lb. +1/3 turn

220 ± 20 Nm +1/3 turn

311, 312, 16 mm 130 ± 30 ft. lb. +1/3 turn

313, 314 175 ± 40 Nm +1/3 turn

315, 317 20 mm 300 ± 50 ft. lb. +1/3 turn

400 ± 70 Nm +1/3 turn

318 20 mm 400 ± 50 ft. lb. +1/3 turn

530 ± 70 Nm +1/3 turn

320, 322, 20 mm 300 ± 50 ft. lb. +1/3 turn

325 400 ± 70 Nm +1/3 turn

330, 350 22 mm 370 ± 50 ft. lb. +1/3 turn

500 ± 70 Nm +1/3 turn

345 24 mm 370 ± 50 ft. lb. +1/3 turn

500 ± 70 Nm +1/3 turn

365, 375 27 mm 410 ± 50 ft. lb. +1/3 turn

500 ± 70 Nm +1/3 turn

385 30 mm 675 ± 70 ft. lb. +1/3 turn

900 ± 100 Nm +1/3 turn

5080, 5090 27 mm 675 ± 70 ft. lb. +1/3 turn

900 ± 100 Nm +1/3 turn

5110 1 1/8'' 670 ± 70 ft. lb. +1/3 turn

870 ± 90 Nm +1/3 turn

5130 1 3/8'' 1150 ± 115 ft. lb. +1/3 turn

1500 ± 150 Nm +1/3 turn

205, 211, 9/16'' 65 ± 15 ft. lb. +1/3 turn

213, 215 90 ± 20 Nm +1/3 turn

205, 211, 5/8'' 120 ± 30 ft. lb. +1/3 turn

213 170 ± 40 Nm +1/3 turn

215, 225

225, 227, 3/4'' 220 ± 40 ft. lb. +1/3 turn

235 300 ± 50 Nm +1/3 turn

235 7/8'' 250 ± 50 ft. lb. +1/3 turn

340 ± 70 Nm +1/3 turn

245 1'' 650 ± 50 ft. lb. +1/3 turn

870 ± 70 Nm +1/3 turn

E070 1/2'' 70 ± 15 ft. lb. +1/3 turn

90 ± 20 Nm +1/3 turn

E110, 16 mm 130 ± 30 ft. lb. +1/3 turn

E120, E140 170 ± 40 Nm +1/3 turn

E180 18 mm 190 ± 40 ft. lb. +1/3 turn

250 ± 50 Nm +1/3 turn

E200, 20 mm 300 ± 50 ft. lb. +1/3 turn

E240, E300 400 ± 70 Nm +1/3 turn

E450 22 mm 370 ± 50 ft. lb. +1/3 turn

500 ± 70 Nm +1/3 turn

E650 24 mm 480 ± 50 ft. lb. +1/3 turn

650 ± 70 Nm +1/3 turn

*Use the assembly and torque turn tightening

procedures on pages 33 and 55.

Idlers

See pages 56 through 58 for detailed idler

information.

Measurement — Use the depth gauge to

measure idlers.

Carrier Rollers

See pages 59 through 60 for detailed car-

rier roller information.

Measurement — Use the caliper or the

Ultrasonic Wear Indicator to measure

carrier rollers.

494

COMPONENTS

Excavators

10.Exc.(488-607) 7/14/03 7:32 AM Page 494
