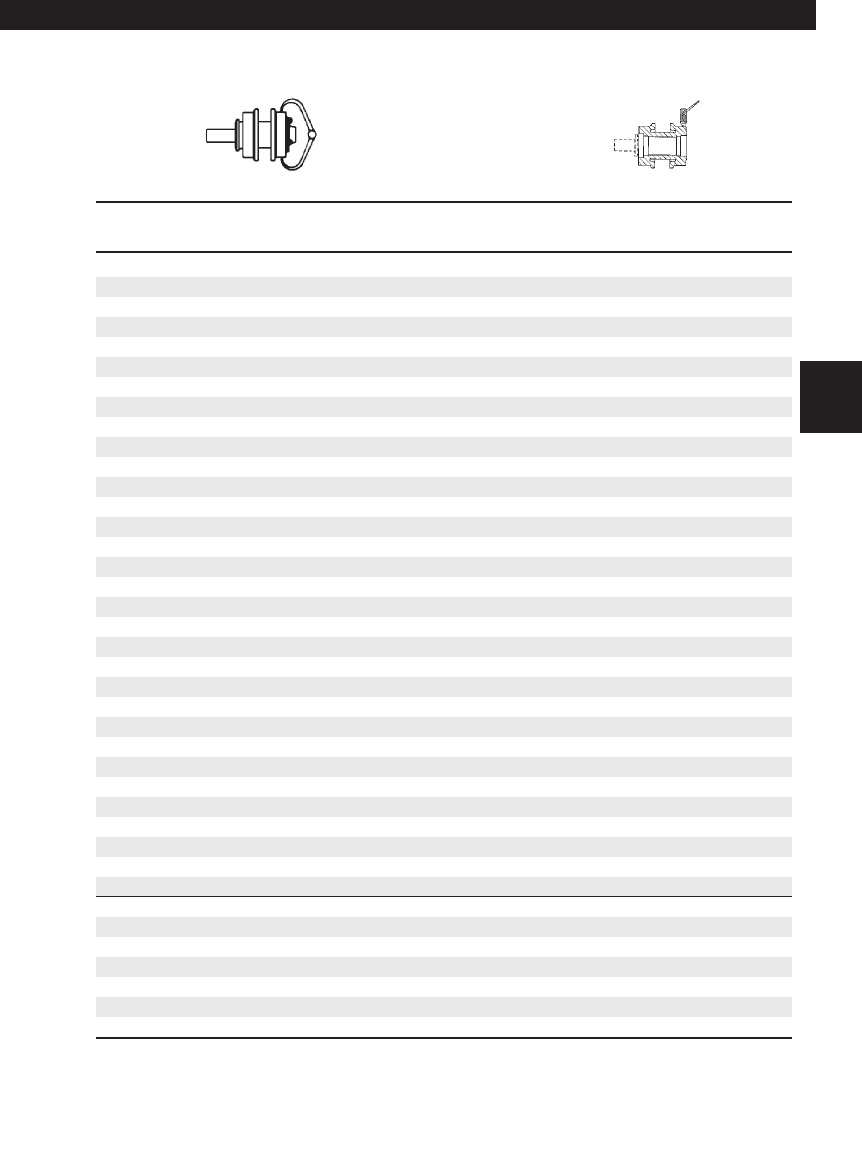

Carrier Rollers

Use with 7T Track Links

Caliper Ultrasonic

Inches (mm) % Worn Inches (mm)

6.75 (171.5) 0 1.55 (39.4)

6.71 (170.5) 4 1.53 (38.9)

6.67 (169.5) 8 1.51 (38.4)

6.63 (168.5) 12 1.49 (37.8)

6.59 (167.5) 16 1.47 (37.3)

6.55 (166.5) 20 1.45 (36.8)

6.51 (165.5) 24 1.43 (36.3)

6.47 (164.5) 28 1.41 (35.8)

6.43 (163.5) 31 1.39 (35.3)

6.39 (162.5) 34 1.37 (34.8)

6.35 (161.5) 37 1.35 (34.3)

6.31 (160.5) 40 1.33 (33.8)

6.27 (159.5) 43 1.31 (33.3)

6.23 (158.0) 46 1.29 (32.8)

6.19 (157.0) 49 1.27 (32.3)

6.15 (156.0) 52 1.25 (31.8)

6.11 (155.0) 55 1.23 (31.2)

6.07 (154.0) 58 1.21 (30.7)

6.03 (153.0) 61 1.19 (30.2)

5.99 (152.0) 64 1.17 (29.7)

5.95 (151.0) 67 1.15 (29.2)

5.91 (150.0) 70 1.13 (28.7)

5.87 (149.0) 73 1.11 (28.2)

5.83 (148.0) 76 1.09 (27.7)

5.79 (147.0) 79 1.07 (27.2)

5.75 (146.0) 82 1.05 (26.7)

5.71 (145.0) 85 1.03 (26.2)

5.67 (144.0) 88 1.01 (25.7)

5.63 (143.0) 91 0.99 (25.1)

5.59 (142.0) 94 0.97 (24.6)

5.55 (141.0) 97 0.95 (24.1)

5.51 (140.0) 100 0.93 (23.6)

5.47 (139.0) 103 0.91 (23.1)

5.43 (138.0) 106 0.89 (22.6)

5.39 (137.0) 109 0.87 (22.1)

5.35 (136.0) 112 0.85 (21.6)

5.31 (135.0) 115 0.83 (21.1)

5.27 (134.0) 118 0.81 (20.6)

5.23 (133.0) 121 0.79 (20.1)

Undercarriage Code: 104, 131, 332

321

D5, 955, 951, 561 — 6.91" (175.5 mm)

Low Sprocket Machines

05.Low(246-325) 7/11/03 3:52 PM Page 321
