Caterpillar Custom Track Service Handbook Page 468

Service Handbook

Page of 826

/ 826

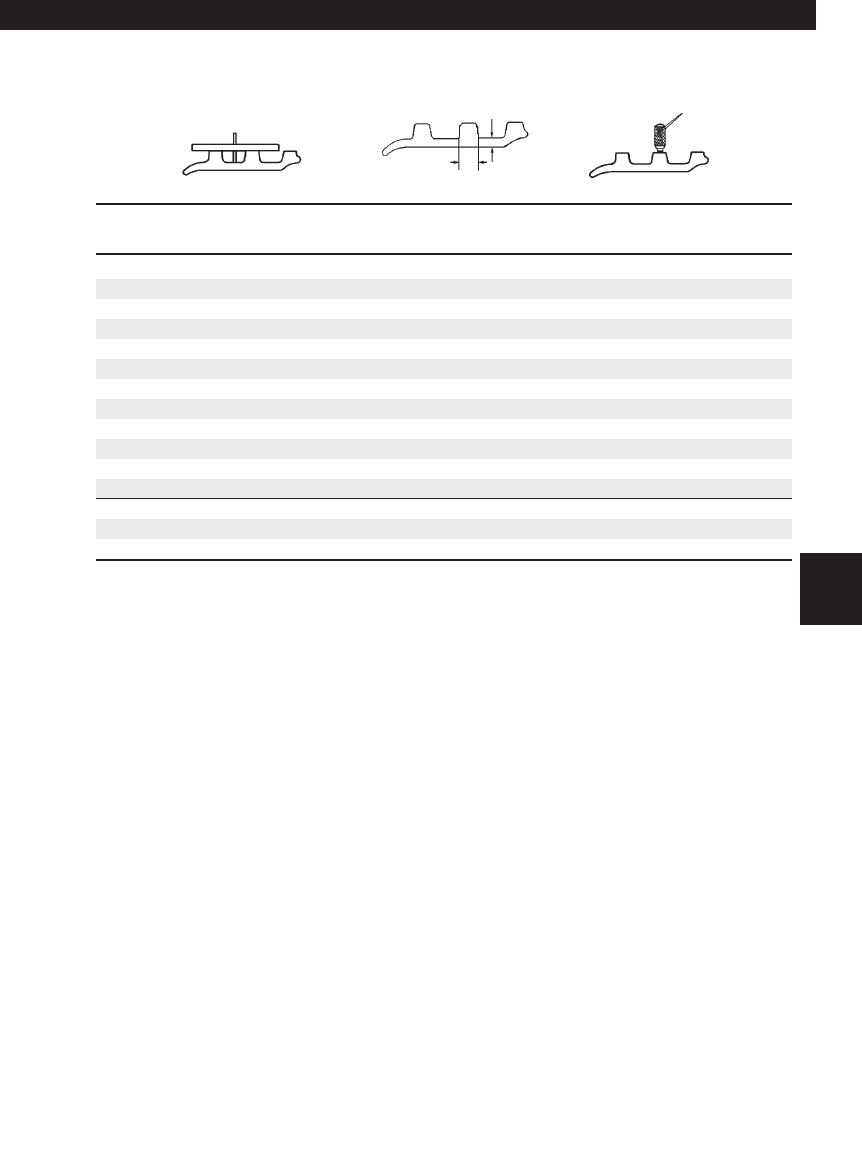

Track Shoes

Triple Grouser

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

1.05 (26.5) 0 1.65 (41.9)

1.00 (25.5) 10 1.60 (40.6)

0.95 (24.0) 19 1.55 (39.4)

0.90 (23.0) 28 1.50 (38.1)

0.85 (21.5) 37 1.45 (36.8)

0.80 (20.5) 46 1.40 (35.6)

0.75 (19.0) 55 1.35 (34.3)

0.70 (18.0) 64 1.30 (33.0)

0.65 (16.5) 73 1.25 (31.8)

0.60 (15.0) 82 1.20 (30.5)

0.55 (14.0) 91 1.15 (29.2)

0.50 (12.5) 100 1.10 (27.9)

0.45 (11.5) 109 1.05 (26.7)

0.40 (10.0) 118 1.00 (25.4)

0.35 (9.0) 127 0.95 (24.1)

Undercarriage Code: 364, 365

467

Hydrostatic Loaders

963 — 8.00" (203.2 mm)

.59" (15 mm)

1.21" (30.8 mm)

09.Hydro(426-487) 7/14/03 7:32 AM Page 467
