Variables That Affect

Wear Life

See pages 11 through 25 for details on the

effects of: Page

Controllable Variables 11

Track Adjustment 11

Shoe Width 12

Alignment 14

Non-Controllable Variables 21

Soil & Underfoot Conditions 21

Underfoot Conditions 22

Partially Controllable Variables 25

Components

Sealed and Lubricated Track

Sealed and Lubricated Track is used exclu-

sively on the elevated sprocket tractors

because internal pin and bushing wear,

found in Sealed Track, would be acceler-

ated on these models.

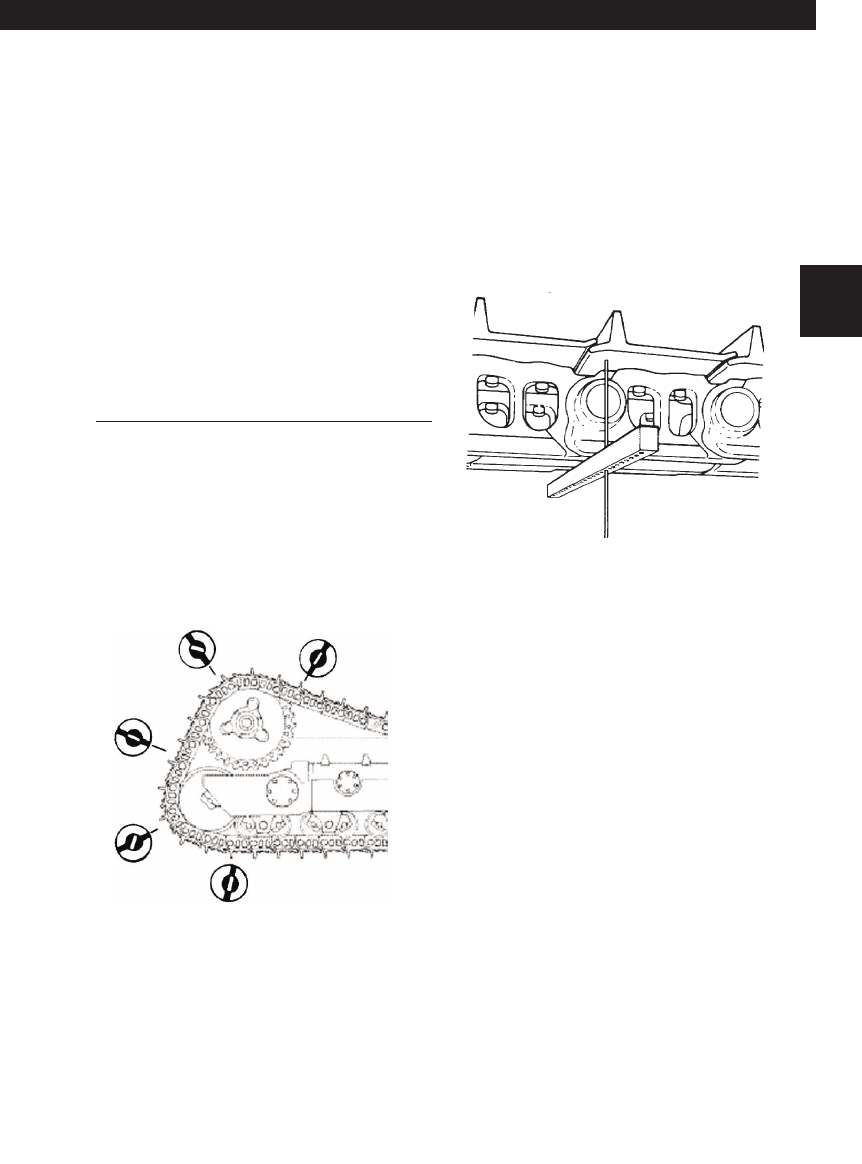

On low sprocket track-type tractors with

Sealed Track, internal pin and bushing

wear occurs in one position. The elevated

sprocket design has three positions where

internal pin and bushing wear would occur

if it used Sealed Track. Sealed and Lubri-

cated Track reduces internal pin and bush-

ing wear as a maintenance consideration.

The only time internal pin and bushing

wear can occur is when a track joint loses

its lubricant. If a track joint goes dry on a

machine with elevated sprockets, internal

pin and bushing wear may soon become

critical. Therefore, on the elevated sprocket

tractors, we recommend that operators

inspect the track weekly for dry joints. Use

the procedure on page 101 of this section.

Links

See pages 28 through 35 for detailed link

information.

Measurement — Measure the track link

over the centerline of the pin and bushing

bores. See page 28 for details.

Link Allowable Wear — Two-level allow-

able wear percent worn charts are provided

for the D8 through D11. The high impact

column should be used for machines which

could experience link structural failure due to

extremely high link rail projected wear life.

The low-moderate impact column should

be used for all other conditions. As an

example, you may learn that for some appli-

cations/underfoot conditions in your territory,

the D10N link will have structural problems

at 8-9,000 hours. For these machines, if the

projected link life using the low impact chart

exceeds 8-9,000 hours, the high impact

percent worn column should be used.

COMPONENTS

Elevated Sprocket Machines

02.1.Elev.(94-109) 7/11/03 3:42 PM Page 99
