Caterpillar Custom Track Service Handbook Page 660

Service Handbook

Page of 826

/ 826

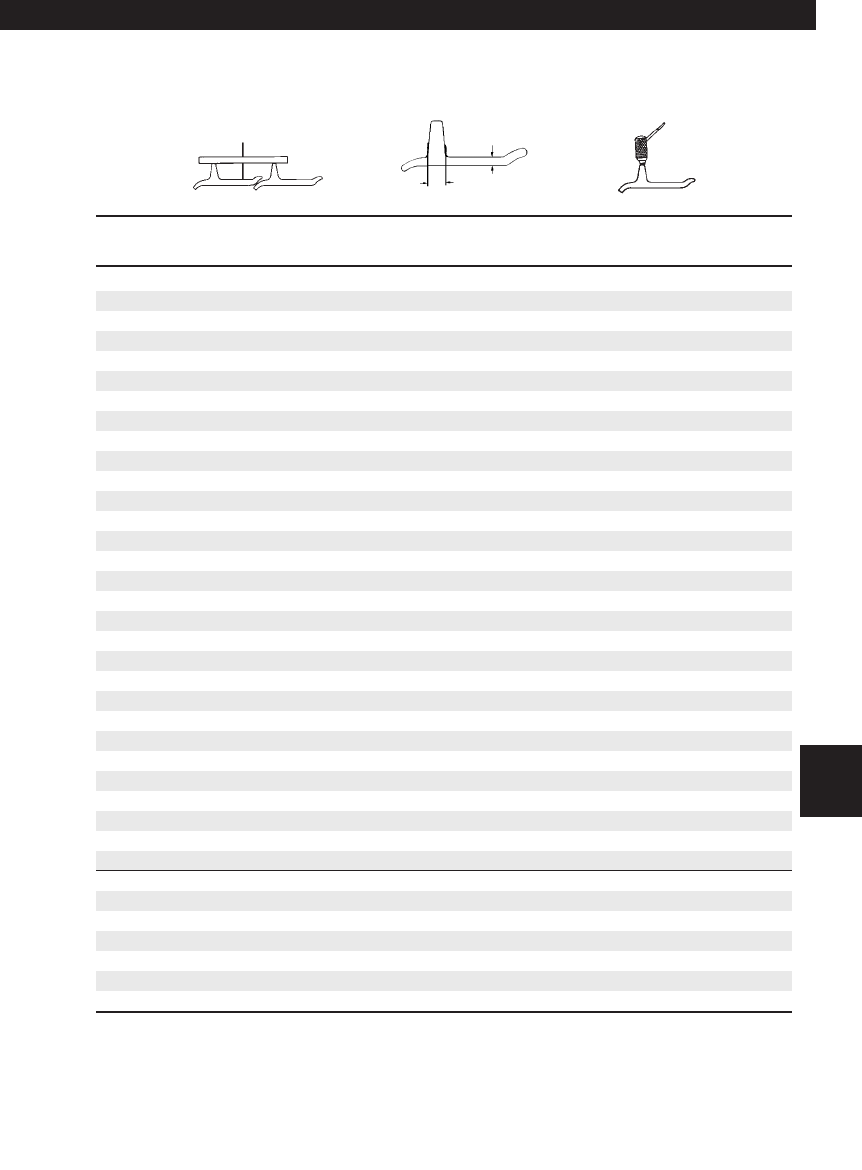

Track Shoes

Extreme Service

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.95 (75.0) 0 3.54 (90.0)

2.90 (73.5) 4 3.49 (88.7)

2.85 (72.5) 8 3.44 (87.5)

2.80 (71.0) 12 3.39 (86.2)

2.75 (70.0) 16 3.34 (84.9)

2.70 (68.5) 20 3.29 (83.7)

2.65 (67.5) 24 3.24 (82.4)

2.60 (66.0) 28 3.19 (81.1)

2.55 (65.0) 32 3.14 (79.8)

2.50 (63.5) 36 3.09 (78.6)

2.45 (62.0) 40 3.04 (77.3)

2.40 (61.0) 44 2.99 (76.0)

2.35 (59.5) 48 2.94 (74.8)

2.30 (58.5) 52 2.89 (73.5)

2.25 (57.0) 55 2.84 (72.2)

2.20 (56.0) 58 2.79 (71.0)

2.15 (54.5) 61 2.74 (69.7)

2.10 (53.5) 64 2.69 (68.4)

2.05 (52.0) 67 2.64 (67.1)

2.00 (51.0) 70 2.59 (65.9)

1.95 (49.5) 73 2.54 (64.6)

1.90 (48.5) 76 2.49 (63.3)

1.85 (47.0) 79 2.44 (62.1)

1.80 (45.5) 82 2.39 (60.8)

1.75 (44.5) 85 2.34 (59.5)

1.70 (43.0) 88 2.29 (58.3)

1.65 (42.0) 91 2.24 (57.0)

1.60 (40.5) 94 2.19 (55.7)

1.55 (39.5) 97 2.14 (54.4)

1.50 (38.0) 100 2.09 (53.2)

1.45 (37.0) 103 2.04 (51.9)

1.40 (35.5) 106 1.99 (50.6)

1.35 (34.5) 109 1.94 (49.4)

1.30 (33.0) 112 1.89 (48.1)

1.25 (32.0) 115 1.84 (46.8)

1.20 (30.5) 118 1.79 (45.6)

1.15 (29.0) 121 1.74 (44.3)

Undercarriage Code: 458, 460, 462, 463, 472, 473

659

227, 229, 231, 225 S.A., LL225 — 8.00" (203.2 mm)

Excavators

.59" (15 mm)

1.22" (31 mm)

11.Exc.(608-709) 7/14/03 7:33 AM Page 659
