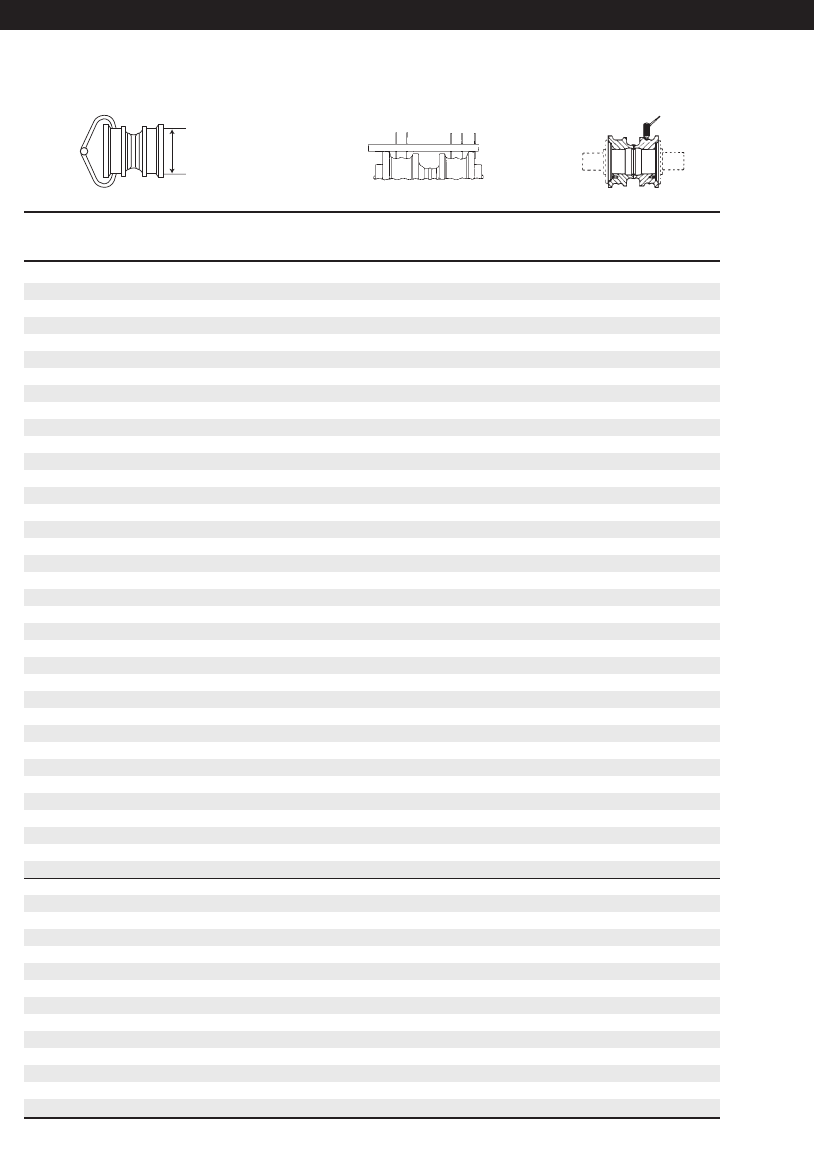

Track Rollers with End Collars

Use with Heavy Duty or Rotating Bushing Track

106-1625 & 26 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

7.75 (197.0) 0 0.59 (15.0) 1.75 (44.5)

7.71 (196.0) 3 0.61 (15.5) 1.73 (43.9)

7.67 (195.0) 6 0.63 (16.0) 1.71 (43.4)

7.63 (194.0) 9 0.65 (16.5) 1.69 (42.9)

7.59 (193.0) 12 0.67 (17.0) 1.67 (42.4)

7.55 (192.0) 15 0.69 (17.5) 1.65 (41.9)

7.51 (191.0) 18 0.71 (18.0) 1.63 (41.4)

7.47 (189.5) 21 0.73 (18.5) 1.61 (40.9)

7.43 (188.5) 24 0.75 (19.0) 1.59 (40.4)

7.39 (187.5) 27 0.77 (19.5) 1.57 (39.9)

7.35 (186.5) 30 0.79 (20.0) 1.55 (39.4)

7.31 (185.5) 33 0.81 (20.5) 1.53 (38.9)

7.27 (184.5) 36 0.83 (21.0) 1.51 (38.4)

7.23 (183.5) 39 0.85 (21.5) 1.49 (37.8)

7.19 (182.5) 42 0.87 (22.0) 1.47 (37.3)

7.15 (181.5) 45 0.89 (22.5) 1.45 (36.8)

7.11 (180.5) 48 0.91 (23.0) 1.43 (36.3)

7.07 (179.5) 51 0.93 (23.5) 1.41 (35.8)

7.03 (178.5) 54 0.95 (24.0) 1.39 (35.3)

6.99 (177.5) 57 0.97 (24.5) 1.37 (34.8)

6.95 (176.5) 60 0.99 (25.0) 1.35 (34.3)

6.91 (175.5) 63 1.01 (25.5) 1.33 (33.8)

6.87 (174.5) 66 1.03 (26.0) 1.31 (33.3)

6.83 (173.5) 69 1.05 (26.5) 1.29 (32.8)

6.79 (172.5) 72 1.07 (27.0) 1.27 (32.3)

6.75 (171.5) 75 1.09 (27.5) 1.25 (31.8)

6.71 (170.5) 78 1.11 (28.0) 1.23 (31.2)

6.67 (169.5) 81 1.13 (28.5) 1.21 (30.7)

6.63 (168.5) 84 1.15 (29.0) 1.19 (30.2)

6.59 (167.5) 87 1.17 (29.5) 1.17 (29.7)

6.55 (166.5) 90 1.19 (30.0) 1.15 (29.2)

6.51 (165.5) 92 1.21 (30.5) 1.13 (28.7)

6.47 (164.5) 94 1.23 (31.0) 1.11 (28.2)

6.43 (163.5) 96 1.25 (32.0) 1.09 (27.7)

6.39 (162.5) 98 1.27 (32.5) 1.07 (27.2)

6.35 (161.5) 100 1.29 (33.0) 1.05 (26.7)

6.31 (160.5) 102 1.31 (33.5) 1.03 (26.2)

6.27 (159.5) 104 1.33 (34.0) 1.01 (25.7)

6.23 (158.0) 106 1.35 (34.5) 0.99 (25.1)

6.19 (157.0) 108 1.37 (35.0) 0.97 (24.6)

6.15 (156.0) 110 1.39 (35.5) 0.95 (24.1)

6.11 (155.0) 112 1.41 (36.0) 0.93 (23.6)

6.07 (154.0) 114 1.43 (36.5) 0.91 (23.1)

6.03 (153.0) 116 1.45 (37.0) 0.89 (22.6)

5.99 (152.0) 118 1.47 (37.5) 0.87 (22.1)

5.95 (151.0) 120 1.49 (38.0) 0.85 (21.6)

5.91 (150.0) 122 1.51 (38.5) 0.83 (21.1)

5.87 (149.0) 124 1.53 (39.0) 0.81 (20.6)

5.83 (148.0) 126 1.55 (39.5) 0.79 (20.1)

5.79 (147.0) 128 1.57 (40.0) 0.77 (19.6)

Flange diameter is 8.94" (227 mm)

Undercarriage Code: 137, 140, 141, 1411, 144, 146, 1461, 280, 281

142

D5H, D6M, D6N, 517 — 7.50" (190 mm)

Elevated Sprocket Machines

02.Elev.(110-145) 7/11/03 3:43 PM Page 142
