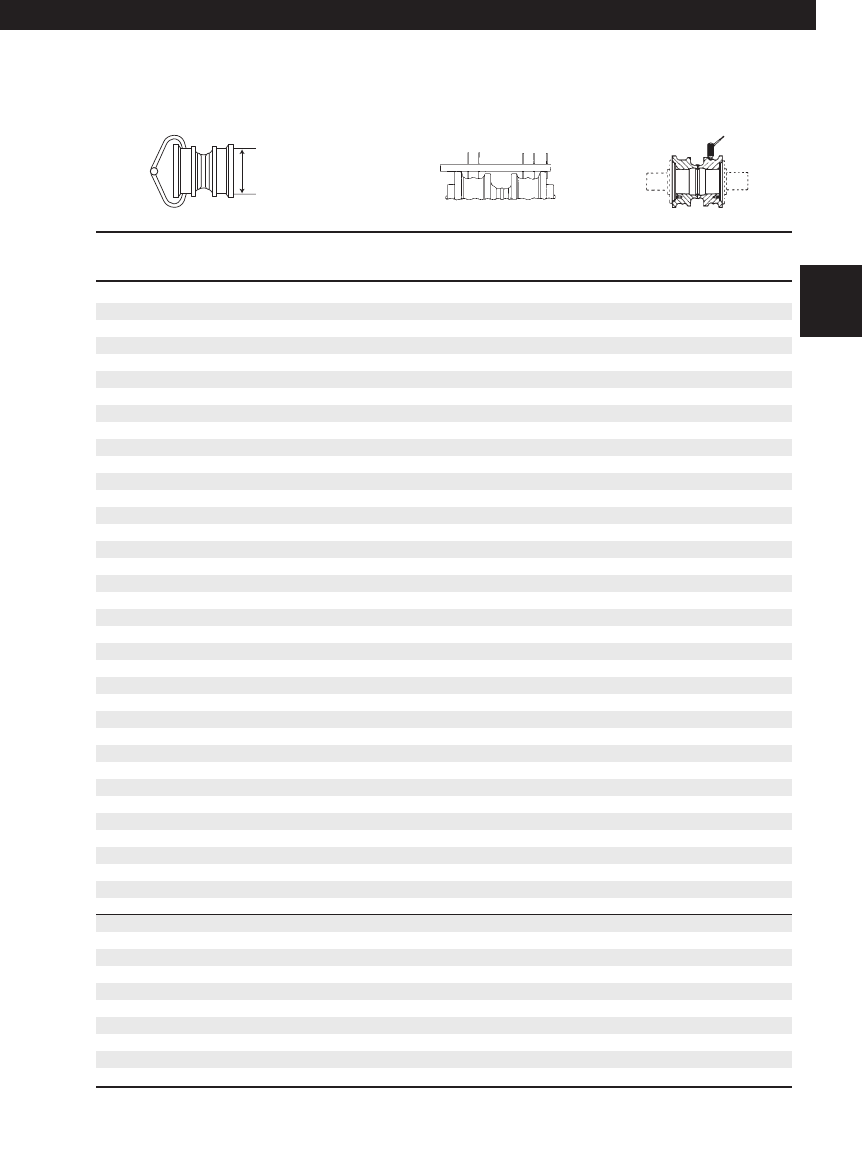

Track Rollers

Single Flange

Optional Large Diameter Roller

Use with 200-6325 & 26 Links

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

12.16 (309.0) 0 0.67 (17.0) 3.27 (83.1)

12.06 (306.5) 3 0.72 (18.5) 3.22 (81.8)

11.96 (304.0) 6 0.77 (19.5) 3.17 (80.5)

11.86 (301.0) 9 0.82 (21.0) 3.12 (79.2)

11.76 (298.5) 12 0.87 (22.0) 3.07 (78.0)

11.66 (296.0) 15 0.92 (23.5) 3.02 (76.7)

11.56 (293.5) 18 0.97 (24.5) 2.97 (75.4)

11.46 (291.0) 21 1.02 (26.0) 2.92 (74.2)

11.36 (288.5) 24 1.07 (27.0) 2.87 (72.9)

11.26 (286.0) 27 1.12 (28.5) 2.82 (71.6)

11.16 (283.5) 30 1.17 (29.5) 2.77 (70.4)

11.06 (281.0) 33 1.22 (31.0) 2.72 (69.1)

10.96 (278.5) 36 1.27 (32.5) 2.67 (67.8)

10.86 (276.0) 39 1.32 (33.5) 2.62 (66.5)

10.76 (273.5) 42 1.37 (35.0) 2.57 (65.3)

10.66 (271.0) 45 1.42 (36.0) 2.52 (64.0)

10.56 (268.0) 48 1.47 (37.5) 2.47 (62.7)

10.46 (265.5) 51 1.52 (38.5) 2.42 (61.5)

10.36 (263.0) 54 1.57 (40.0) 2.37 (60.2)

10.26 (260.5) 57 1.62 (41.0) 2.32 (58.9)

10.16 (258.0) 60 1.67 (42.5) 2.27 (57.7)

10.06 (255.5) 63 1.72 (43.5) 2.22 (56.4)

9.96 (253.0) 66 1.77 (45.0) 2.17 (55.1)

9.86 (250.5) 69 1.82 (46.0) 2.12 (53.8)

9.76 (248.0) 72 1.87 (47.5) 2.07 (52.6)

9.66 (245.5) 75 1.92 (49.0) 2.02 (51.3)

9.56 (243.0) 78 1.97 (50.0) 1.97 (50.0)

9.46 (240.5) 81 2.02 (51.5) 1.92 (48.8)

9.36 (237.5) 84 2.07 (52.5) 1.87 (47.5)

9.26 (235.0) 86 2.12 (54.0) 1.82 (46.2)

9.16 (232.5) 88 2.17 (55.0) 1.77 (45.0)

9.06 (230.0) 90 2.22 (56.5) 1.72 (43.7)

8.96 (227.5) 92 2.27 (57.5) 1.67 (42.4)

8.86 (225.0) 94 2.32 (59.0) 1.62 (41.1)

8.76 (222.5) 96 2.37 (60.0) 1.57 (39.9)

8.66 (220.0) 98 2.42 (61.5) 1.52 (38.6)

8.56 (217.5) 100 2.47 (62.5) 1.47 (37.3)

8.46 (215.0) 102 2.52 (64.0) 1.42 (36.1)

8.36 (212.5) 104 2.57 (65.5) 1.37 (34.8)

8.26 (210.0) 106 2.62 (66.5) 1.32 (33.5)

8.16 (207.5) 108 2.67 (68.0) 1.27 (32.3)

8.06 (204.5) 110 2.72 (69.0) 1.22 (31.0)

7.96 (202.0) 112 2.77 (70.5) 1.17 (29.7)

7.86 (199.5) 114 2.82 (71.5) 1.12 (28.4)

7.76 (197.0) 116 2.87 (73.0) 1.07 (27.2)

7.66 (194.5) 118 2.92 (74.0) 1.02 (25.9)

7.56 (192.0) 120 2.97 (75.5) 0.97 (24.6)

Flange diameter is 13.50" (343 mm)

Undercarriage Code: 2203, 2213

241

D11N, D11R — 12.50" (317.5 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 241
