Caterpillar Custom Track Service Handbook Page 415

Service Handbook

Page of 826

/ 826

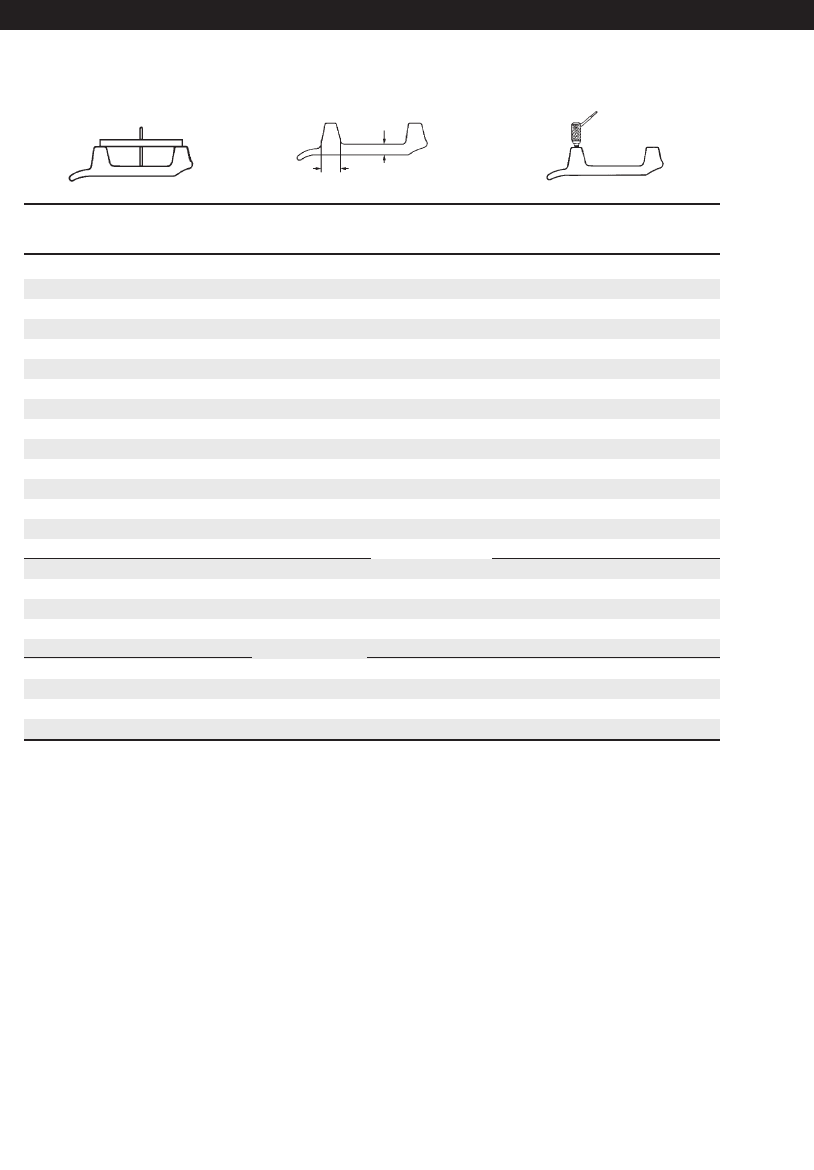

Track Shoes

Double Grouser

Depth Gauge High Impact Low Impact Ultrasonic

Inches (mm) % Worn % Worn Inches (mm)

1.45 (37.0) 0 0 2.10 (53.3)

1.40 (35.5) 8 6 2.05 (52.1)

1.35 (34.5) 16 12 2.00 (50.8)

1.30 (33.0) 23 18 1.95 (49.5)

1.25 (32.0) 30 24 1.90 (48.3)

1.20 (30.5) 37 30 1.85 (47.0)

1.15 (29.0) 44 35 1.80 (45.7)

1.10 (28.0) 51 40 1.75 (44.5)

1.05 (26.5) 58 45 1.70 (43.2)

1.00 (25.5) 65 50 1.65 (41.9)

0.95 (24.0) 72 55 1.60 (40.6)

0.90 (23.0) 79 60 1.55 (39.4)

0.85 (21.5) 86 65 1.50 (38.1)

0.80 (20.5) 93 70 1.45 (36.8)

0.75 (19.0) 100 75 1.40 (35.6)

0.70 (18.0) 107 80 1.35 (34.3)

0.65 (16.5) 114 85 1.30 (33.0)

0.60 (15.0) 121 90 1.25 (31.8)

0.55 (14.0) 95 1.20 (30.5)

0.50 (12.5) 100 1.15 (29.2)

0.45 (11.5) 105 1.10 (27.9)

0.40 (10.0) 110 1.05 (26.7)

0.35 (9.0) 115 1.00 (25.4)

0.30 (7.5) 120 0.95 (24.1)

Undercarriage Code: 1655

414

D7 — 8.50" (215.9 mm)

Cat Classic Undercarriage

.65" (16.5 mm)

1.42" (36 mm)

08.Classic(388-425) 7/14/03 7:31 AM Page 414
